← Comparison Tool

💻 Dell Pro Max 14 vs Premium

AI-powered analysis across 37 matched specifications

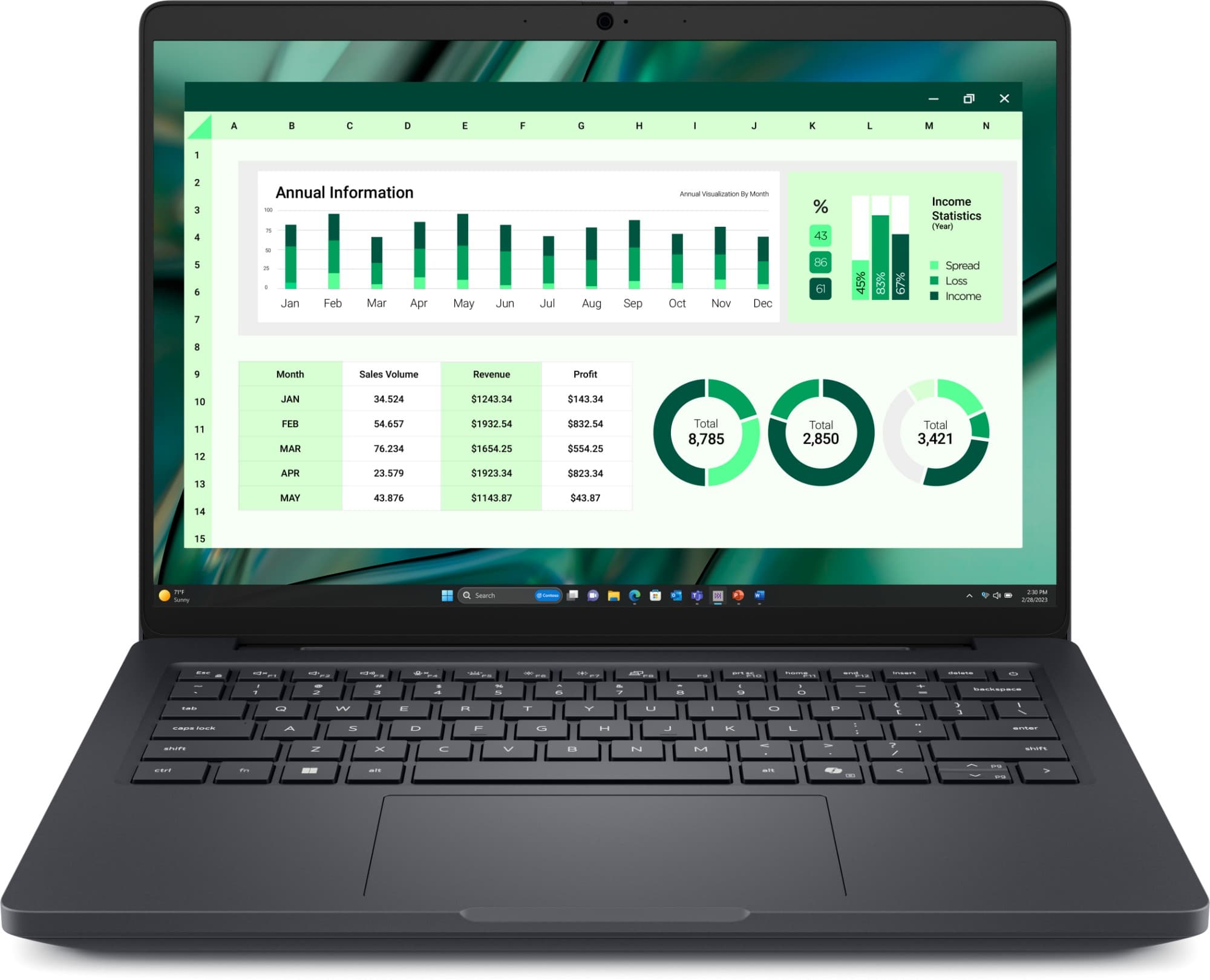

Dell Pro Max 14 (MC14250) mobile workstation in Magnetite — front view with 14-inch 16:10 FHD+ display
Dell Pro Max 14
Dell
8.1
Overall Score
Engineering, data and content fleets that want socketed memory plus RJ45, HDMI and USB-A without dongles, and Dell's deeper FIPS 140-3 security stack for regulated review.
View Full Details

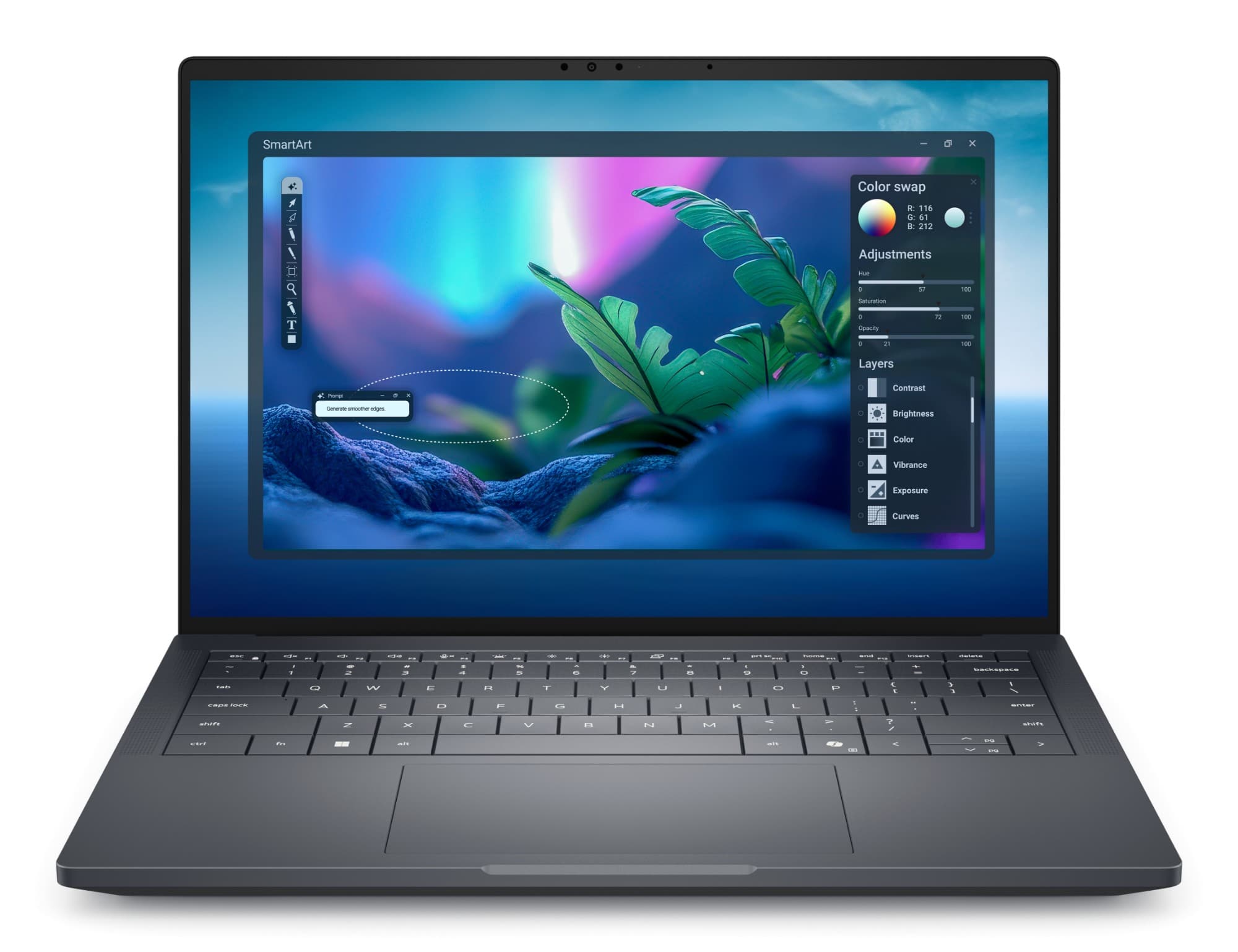

Dell Pro Max 14 Premium (MA14250) mobile workstation in Magnetite — front view of the 14-inch 16:10 anti-glare display
Dell Pro Max 14 Premium
Dell
8.6
Overall Score
Mobile professionals who need RTX PRO Blackwell graphics with 8 GB and a brighter 100% sRGB panel in the thinnest, lightest 14-inch body — and can standardise on USB-C docking.
View Full Details

Performance Overview

Scores based on quantifiable specification values (1-10 scale)

Graphics & GPU memorySustained CPU performanceDisplay qualityPortability & buildI/O & expandabilitySecurity & manageability
Dell Pro Max 14
Dell Pro Max 14 Premium
Graphics & GPU memory
Dell Pro Max 14
7.8
Dell Pro Max 14 Premium
8.9
Sustained CPU performance
Dell Pro Max 14
8.0
Dell Pro Max 14 Premium
8.7
Display quality
Dell Pro Max 14
7.2
Dell Pro Max 14 Premium
8.9
Portability & build
Dell Pro Max 14
8.0
Dell Pro Max 14 Premium
9.0
I/O & expandability
Dell Pro Max 14
8.6
Dell Pro Max 14 Premium
7.9
Security & manageability
Dell Pro Max 14
9.0
Dell Pro Max 14 Premium
8.3

Detailed Specifications

Specification
Dell Pro Max 14
Dell
Dell Pro Max 14 Premium
Dell
At a Glance
Model codeMC14250 (regulatory P196G)MA14250 (regulatory P201G)
Best described asExpandable workstation — socketed memory, dongle-free I/OThin premium workstation — onboard memory, all-USB-C
Chassis & starting weight90% recycled magnesium, from 1.79 kgAluminium-magnesium, from 1.61 kg
UK availabilityTwo stocked configurations (FN6VM, WX0C7)Channel-only — Dell no longer sells direct in the UK
Graphics & Processing
Stocked discrete GPUNVIDIA RTX PRO 500 Blackwell, 6 GB GDDR7NVIDIA RTX PRO Blackwell discrete, 8 GB GDDR7 (1000/2000 tier)
Integrated graphicsIntel Arc / Arc Pro GraphicsIntel Arc Pro 140T
Stocked processorCore Ultra 7 265H vPro — up to 5.3 GHz, 24 MB cacheCore Ultra 7 265H vPro Enterprise — up to 5.3 GHz, 24 MB
Configured processor power28 W base45 W
Core layout16 cores / 16 threads (6P + 10E)16 cores / 16 threads (6P + 8E + 2 LPE)
NPUUp to 13 TOPSUp to 13 TOPS
CPU options to orderUltra 5 225H / 235H, Ultra 7 255HUltra 7 255H, Ultra 9 285H vPro Enterprise
Memory & Storage
Stocked memory32 GB (FN6VM) / 16 GB (WX0C7)32 GB
Memory typeLPDDR5x-7467, dual-channel, one LPCAMM2 moduleLPDDR5x-8400, dual-channel, onboard
Memory upgradeableYes — socketed LPCAMM2 slotNo — soldered, fixed at purchase
Memory ceiling64 GB64 GB (factory-configured only)
Stocked storage1 TB M.2 2280 Gen4 SED / 512 GB 22301 TB M.2 2280 Gen4 TLC, SED-ready
Storage slotOne M.2 (2230/2280) + separate M.2 WLANOne M.2 Key-M (2280 or 2230)
Maximum storageUp to 2 TB SEDUp to 2 TB
Display & Media
Stocked panel14in FHD+ 1920×1200 anti-glare, 300 nits, 45% NTSC14in FHD+ 1920×1200 anti-glare, 400 nits, 100% sRGB
Refresh rate60 Hz30–60 Hz variable refresh
Upgrade panel optionQHD+ 100% sRGB and touch panels to orderQHD+ 2880×1800 tandem OLED touch, 100% DCI-P3, HDR True Black 500
CameraFHD 1080p + IR, privacy shutter8 MP + IR, presence detection, status light
SpeakersStereo, 2 × 2 W (4 W avg), Waves MaxxAudio ProQuad, 10 W peak, Dolby Atmos
Ports, Build & Power
USB-C / Thunderbolt2× Thunderbolt 4 (PD + DisplayPort)2× Thunderbolt 5 (up to 120 Gbps) + 2× Thunderbolt 4
USB-A2× USB-A 3.2 Gen 1 (one with PowerShare)None — optional USB-C dongle
HDMIHDMI 2.1None on chassis (DisplayPort 2.1 over USB-C)
Wired networkRJ45 Gigabit EthernetNone — USB-C dock or dongle
Card readerNonemicroSD (SD / SDHC / SDXC)
Dimensions313 × 227.3 mm; 14.79–24.65 mm thick310.6 × 212.5 mm; 19.32 mm (20.12 peak)
Battery & adapter72 Wh; 100 W or 130 W USB-C72 Wh; 130 W USB-C (discrete-GPU config)
Security & Platform
TPMTPM 2.0 (FIPS 140-2, TCG)Discrete TPM 2.0 (FIPS 140-2, TCG)
Credential protectionControlVault 3 Plus — FIPS 140-3 Level 3Intel platform security (Boot Guard, TXT, TME-MK)
Smart card / NFCOptional smart card + contactless / NFCNot offered
Fingerprint readerOptional, in power buttonOptional, in power button (Windows Hello)
ManageabilityIntel vProIntel vPro Enterprise
WirelessWi-Fi 7 BE201 + BT 5.4 (Wi-Fi 6E option)Wi-Fi 7 BE201 + BT 5.4
OS (stocked / supported)Windows 11 Pro; Ubuntu 22.04 LTSWindows 11 Pro; Ubuntu 24.04 LTS
★

Expert Analysis

Specs web-verified from manufacturer datasheets · Servnet-reviewed · Last reviewed 11 Jul 2026

Despite the shared name, these are two different machines built for two different jobs. The standard Dell Pro Max 14 (MC14250) is the expandable workhorse: a 90% recycled-magnesium chassis with socketed LPCAMM2 memory, a full set of legacy ports — HDMI 2.1, two USB-A and gigabit Ethernet — and Dell's fuller commercial security stack, including ControlVault 3 Plus certified to FIPS 140-3 Level 3 plus optional smart-card and NFC readers. It pairs the Core Ultra 7 265H vPro with a 6 GB RTX PRO 500 Blackwell GPU at a 28 W processor power rating. Its stocked panel is the honest weak point — 300 nits and 45% NTSC — fine for CAD linework and code, wrong for colour work.

The Pro Max 14 Premium (MA14250) is the upmarket, thin interpretation. It sheds every legacy port for an all-USB-C layout built around two Thunderbolt 5 connections, starts from 1.61 kg in an aluminium-magnesium body, and steps up in the areas mobile professionals feel daily: a 400-nit 100% sRGB panel (with a QHD+ tandem OLED option), an 8 MP camera with presence detection, quad Dolby Atmos speakers, faster LPDDR5x-8400 memory and a higher RTX PRO Blackwell GPU with 8 GB of GDDR7. It also runs the same 265H at a 45 W rating for more sustained headroom. The catch is that the memory is soldered and fixed, and Dell no longer sells it direct in the UK — it is a channel-only product.

For UK buyers the split is clean. Choose the standard Pro Max 14 for engineering, data and fleet deployments that value socketed memory, dongle-free docking and deeper security certification — the machine that clears a strict security review and slots into an existing peripheral estate. Choose the Premium where the device leaves the building every day and the priorities are carry weight, a genuinely good screen and camera, and maximum GPU and Thunderbolt bandwidth — accepting soldered memory and a dock-led deployment model. Servnet stocks both, including the standard model's two configurations and each of the Premium's RTX PRO tiers, and confirms the exact GPU tier in writing before order.

Dell Pro Max 14
Engineering, data and content fleets that want socketed memory plus RJ45, HDMI and USB-A without dongles, and Dell's deeper FIPS 140-3 security stack for regulated review.
Dell Pro Max 14 Premium
Mobile professionals who need RTX PRO Blackwell graphics with 8 GB and a brighter 100% sRGB panel in the thinnest, lightest 14-inch body — and can standardise on USB-C docking.

Frequently asked questions

What's the core difference between the Pro Max 14 and the Pro Max 14 Premium?

They share a name but are separate platforms. The MC14250 is the expandable model — socketed LPCAMM2 memory, and RJ45, HDMI and USB-A on the chassis, from 1.79 kg. The Premium (MA14250) is the thin, upmarket interpretation — from 1.61 kg in aluminium-magnesium, onboard LPDDR5x, an all-Thunderbolt port set with two TB5 ports, a brighter 100% sRGB panel and a higher RTX PRO Blackwell GPU tier.

Do the two machines have the same graphics?

No. The standard Pro Max 14 ships NVIDIA's RTX PRO 500 Blackwell with 6 GB of GDDR7. The Premium carries a higher RTX PRO Blackwell discrete tier with 8 GB of GDDR7 — more VRAM for larger CAD assemblies, GPU rendering and local AI work. The Premium also runs the same Core Ultra 7 265H at a 45 W processor power rating versus 28 W on the standard model, so it sustains heavier loads.

Can I upgrade the memory later?

Only on the standard Pro Max 14. It uses a single socketed LPCAMM2 module (LPDDR5x-7467), so memory is a replaceable part up to a 64 GB ceiling. The Premium's LPDDR5x-8400 is soldered onboard and fixed for the machine's life — the platform reaches 64 GB only as a factory build — so specify the capacity you need at purchase. Both machines have one serviceable M.2 storage slot.

Which has better connectivity for our existing peripherals?

The standard Pro Max 14 is the dongle-free choice: two Thunderbolt 4 ports plus HDMI 2.1, two USB-A and built-in RJ45 gigabit Ethernet, though it has no card reader. The Premium drops all legacy ports for four USB-C — two Thunderbolt 5 up to 120 Gbps and two Thunderbolt 4 — plus a microSD reader, so plan a Thunderbolt dock or the optional USB-C dongle for USB-A and HDMI.
