Flexible Host Connectivity
Four controller module options cover 32Gb FC, 25G iSCSI SFP+, 10GbE iSCSI Base-T, and 12Gb SAS — allowing the ME5024 to fit into existing SAN fabrics without additional HBA investment.
UK’s trusted IT infrastructure partner since 2003
24 Drives
2U base array (2.5" bays)
8 PB
Max with expansion (336 drives)
32Gb FC
Or 25G iSCSI / 12Gb SAS
16 GB
Cache per controller
✅ Authorised Reseller
📦 Free UK Delivery
🔒 Full Warranty
📞 24/7 Support
Download Official Datasheet
PDF · Official manufacturer document
Dell StorageSKU: PowerVault-ME5024

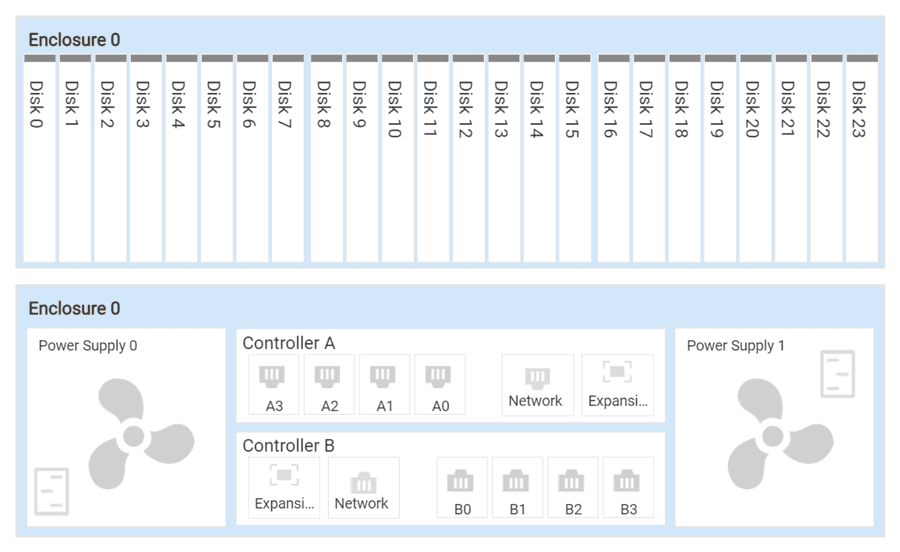

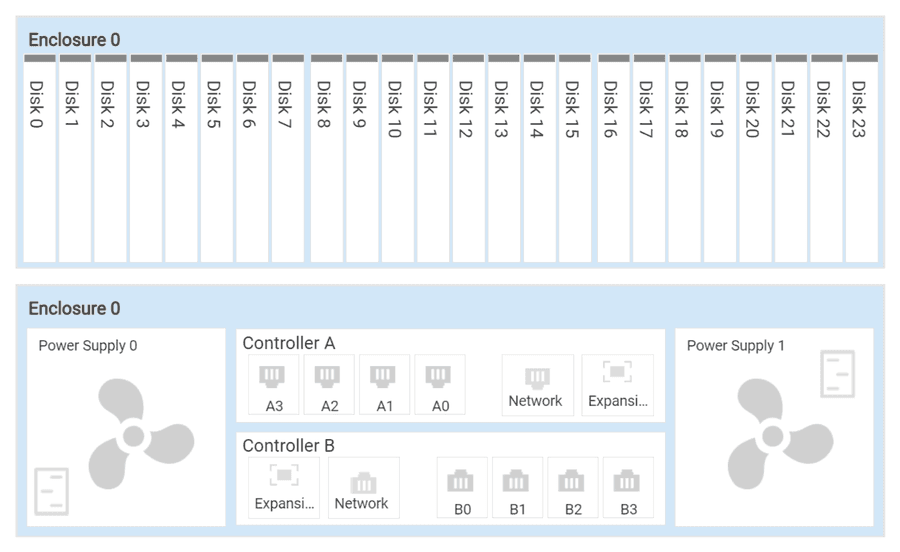

Dell PowerVault ME5024 SAN Storage Array
2U SAN Storage — 24 Drives, 32Gb FC / 25G iSCSI / 12Gb SAS, ADAPT RAID, 8 PB Max
The Dell PowerVault ME5024 is a 2U 24-drive SAN storage array delivering enterprise-class block storage at mid-market pricing. With 32Gb Fibre Channel, 25G iSCSI, and 12Gb SAS connectivity options, ADAPT RAID for multi-drive failure protection, and scalability to 8 PB across 336 drives, it serves SMB and mid-market organisations requiring reliable shared block storage.
- 2U, 24 × 2.5" drive bays — NL-SAS, SAS 10K, or SSD
- Dual active/active hot-swap controllers — 16 GB cache per controller
- Connectivity: 32Gb FC (8 ports), 25G iSCSI SFP+ (8 ports), 10G iSCSI BaseT (8 ports), or 12Gb SAS
- ADAPT RAID — protects against multi-drive failure with faster rebuild
- Scale to 8 PB with up to 336 drives (ME412/ME424/ME484 expansion)
- HTML5 GUI + REST API management — no separate management server
- Thin provisioning, snapshots, replication, auto-tiering included
- VMware, Windows Server, RHEL, SLES certified
Get Pricing — Speak to Our Team
Request a Quote
Competitive pricing · Response within 4 hours
Key Features
Everything you need in one device
🛡️
ADAPT RAID Technology
ADAPT (Advanced Distributed Availability Protection Technology) RAID distributes data across all drives in a pool, providing protection against simultaneous multiple drive failures with dramatically faster rebuild times than traditional RAID.
📈
Scale to 8 PB
Start with the 2U ME5024 base array and add up to four expansion enclosures (ME412, ME424, ME484) for a total of 336 drives and 8 PB maximum raw capacity — no controller upgrade required.
⚙️
Intelligent Auto-Tiering
Automated storage tiering moves hot data to SSDs and cold data to NL-SAS HDDs dynamically — optimising performance and economics without administrator intervention.
💻
Simple Management
Browser-based HTML5 GUI and REST API eliminate the need for a separate management server or dedicated storage management software. CLI and SNMP are also supported for integration with existing monitoring tools.
🔄
Integrated Data Services
Thin provisioning, snapshots (up to 512 per volume), volume copy, and array-based replication are included in the base PowerVault Manager software licence.
About the Dell PowerVault ME5024
The Dell PowerVault ME5024 is the mid-size model in the ME5 Series — positioned between the 12-drive ME5012 and the high-density 84-drive ME5084. Its 2U 24-drive design (2.5" drive bays) offers a good balance of drive count, capacity, and rack density for SMB and mid-market organisations deploying shared SAN storage for the first time or expanding existing installations.
The ME5 Series represents a significant update over the legacy ME4 Series with higher per-port bandwidth (32Gb FC vs 16Gb), NVMe SSD support, enhanced ADAPT RAID algorithms for faster rebuild, and a redesigned management interface. The dual active/active controllers with 16 GB of cache each ensure continuous access if a controller fails.
The PowerVault ME5024 is particularly well-suited to organisations running VMware, Microsoft Hyper-V, or RHEL KVM that need a dedicated SAN rather than using local DAS — providing centralised storage management, volume-level snapshots, and replication for backup or DR without the cost and complexity of an enterprise SAN platform.
Technical Specifications
📄 Download Datasheet (PDF)Use Cases
Ideal for a wide range of deployments
🖥️
VMware & Hyper-V Storage
Centralised shared block storage for virtualised environments — iSCSI or FC LUNs for vSphere datastores or Hyper-V CSVs, with snapshots for VM-level backup.
🏢
SMB & Mid-Market SAN
First shared SAN for organisations outgrowing DAS, providing centralised storage management and the ability to serve multiple servers from a single pool.
🔄
Secondary / Backup Target
Dedicated backup target for DPM, Veeam, or Commvault backup jobs — replicated to a second ME5 array at a remote site for DR.
FAQ
Frequently Asked Questions
Why Servnet
Why buy from Servnet?
Trusted UK IT reseller since 2003 — supplying businesses of all sizes with genuine, competitively priced technology.
🏆
Authorised UK Reseller
Servnet is an authorised IT reseller with direct access to leading product lines at competitive pricing.
💬
Expert Pre-Sales Advice
Our engineers will help you select the right product and advise on compatibility with your existing infrastructure.
🚚
Fast UK Delivery
Most products ship from UK stock. Express delivery available for urgent deployments.
🔒
Genuine, Warranted Kit
All products are genuine, brand-new, with full manufacturer warranty and RMA support.
📋
Configuration Services
We can pre-configure your hardware before shipping — reducing on-site deployment time and cost.
📞
24/7 Support
Post-sale support from our certified engineers. We're here if anything goes wrong.
Related Products
Dell Storage

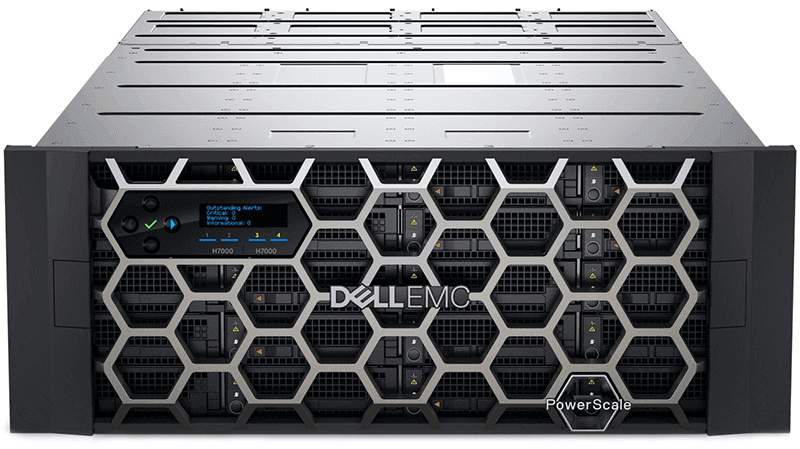

Dell PowerScale H7000
High-Capacity Hybrid NAS — 1.9 PB per Chassis, 24 TB HDD, SSD Cache, OneFS
Dell Storage

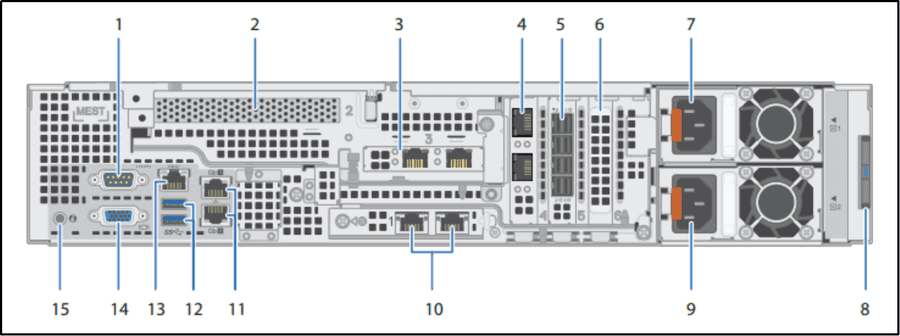

Dell PowerProtect DD9910
