Fortinet FortiSwitch 1024E data centre 25GE leaf switch 1U rack front view
Fortinet FS-1024E
24 10GE
SFP+/SFP ports
880 Gbps
Switching capacity
2×100GE QSFP28
Spine uplinks
1,309 Mpps
Forwarding rate
Authorised Reseller
📦 Free UK Delivery
🔒 Full Warranty
📞 24/7 Support
Key Specifications
ModelFS-1024E
10GE SFP+/SFP Ports24 × 10GE/1GE SFP+/SFP
100GE QSFP28 Ports2 × 100GE/40GE QSFP28/QSFP+
Switching Capacity880 Gbps
Forwarding Rate1,309 Mpps
MAC Address Table64,000
Layer 3 RoutingOSPF, BGP, ECMP, VXLAN, EVPN
Power SupplyDual redundant hot-swap
+3 more specs below ↓
📄
Download Official Datasheet
PDF · Official manufacturer document
FortinetSKU: FS-1024E

Fortinet FortiSwitch 1024E Data Centre 25GE Leaf Switch

24 × 10GE SFP+ Data Centre Leaf Switch with 2 × 100GE QSFP28 Spine Uplinks

The FortiSwitch 1024E is a data centre leaf switch with 24 × 10GE/1GE SFP+/SFP ports and 2 × 100GE QSFP28 spine uplinks — delivering 880 Gbps switching for enterprise campus core and data centre top-of-rack deployments.

  • 24 × 10GE/1GE SFP+/SFP ports
  • 2 × 100GE/40GE QSFP28/QSFP+ spine uplinks
  • 880 Gbps switching capacity
  • 1,309 Mpps forwarding rate
  • FortiLink management from FortiGate
  • VXLAN, EVPN, Layer 3 routing
  • Dual hot-swap PSUs & fans

Get Pricing — Speak to Our Team

Request a Quote

Competitive pricing · Response within 4 hours

Enquiring about: FortiSwitch FS-1024E

Response within 4 business hours · No obligation

Key Features

Everything you need in one device

24 × 10GE SFP+/SFP

24 × 10G/1G SFP+/SFP ports connect servers, storage arrays, and aggregation switches at 10GE speeds in campus core and data centre deployments.

💎

2 × 100GE QSFP28 Uplinks

2 × 100GE/40GE QSFP28/QSFP+ spine uplinks provide 200 Gbps of aggregate spine bandwidth for non-blocking leaf connectivity.

📊

880 Gbps Fabric

880 Gbps non-blocking switching fabric with 1,309 Mpps forwarding ensures line-rate performance across all 26 ports.

🌐

VXLAN & EVPN

Supports VXLAN overlay networking and EVPN control plane for modern software-defined data centre architectures.

🔄

Dual Hot-Swap PSU & Fans

Dual redundant hot-swappable power supplies and fans ensure zero-downtime maintenance in production data centres.

🔗

FortiLink or Standalone

Managed via FortiLink from FortiGate or operated standalone with full CLI/SNMP/API management.

About the FortiSwitch FS-1024E

The FortiSwitch 1024E is a 1U data centre leaf switch providing 24 × 10G/1G SFP+/SFP ports and 2 × 100G/40G QSFP28/QSFP+ spine uplinks with 880 Gbps switching capacity. It serves campus core and data centre top-of-rack roles — aggregating 10GE server or access switch connections with high-speed 100GE spine uplinks.

With VXLAN VTEP and EVPN support, the FS-1024E integrates into software-defined data centre overlays (VMware NSX, OpenStack). Dual hot-swap redundant power supplies and fans provide the high availability required for production data centre operations. Managed via FortiLink from FortiGate, it integrates into the Fortinet Security Fabric alongside campus access switches and FortiGate firewalls.

Technical Specifications

ModelFS-1024E
10GE SFP+/SFP Ports24 × 10GE/1GE SFP+/SFP
100GE QSFP28 Ports2 × 100GE/40GE QSFP28/QSFP+
Switching Capacity880 Gbps
Forwarding Rate1,309 Mpps
MAC Address Table64,000
Layer 3 RoutingOSPF, BGP, ECMP, VXLAN, EVPN
Power SupplyDual redundant hot-swap
Power Consumption176W max
Form Factor1U rack-mount
Operating Temp0°C to 45°C
📄 Download Datasheet (PDF)
Use Cases

Ideal for a wide range of deployments

🏗️

Data Centre Leaf

Provides 10GE server connectivity in a spine-leaf architecture with 100GE spine uplinks.

☁️

Private Cloud

Connects hypervisors and storage in VMware, KVM, and OpenStack private cloud environments.

🏢

Campus Core

Serves as campus core switch aggregating 10GE distribution uplinks with 100GE connectivity to the Internet edge.

🌐

SDN Integration

VXLAN and EVPN support enables integration with software-defined networking overlays.

FAQ

Frequently Asked Questions

Q. What is the difference between FS-1024E and FS-1048E?

The FS-1048E doubles the 10GE port count to 48 (vs 24 on the 1024E) and offers 6 × 40GE or 4 × 100GE uplinks (vs 2 × 100GE) with higher switching capacity at 1,760 Gbps.

Q. Can I buy the FortiSwitch 1024E from Servnet?

Yes. Contact sales@servnetuk.com or call 0800 987 4111 for competitive pricing on data centre switches.

Why Servnet

Why buy from Servnet?

Trusted UK IT reseller since 2003 — supplying businesses of all sizes with genuine, competitively priced technology.

🏆

Authorised UK Reseller

Servnet is an authorised IT reseller with direct access to leading product lines at competitive pricing.

💬

Expert Pre-Sales Advice

Our engineers will help you select the right product and advise on compatibility with your existing infrastructure.

🚚

Fast UK Delivery

Most products ship from UK stock. Express delivery available for urgent deployments.

🔒

Genuine, Warranted Kit

All products are genuine, brand-new, with full manufacturer warranty and RMA support.

📋

Configuration Services

We can pre-configure your hardware before shipping — reducing on-site deployment time and cost.

📞

24/7 Support

Post-sale support from our certified engineers. We're here if anything goes wrong.

Related Products

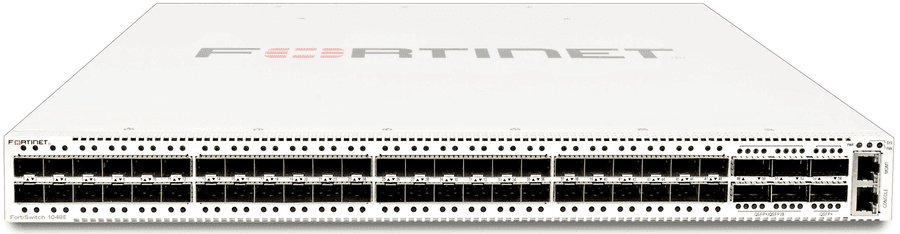

Fortinet FortiSwitch 1048E data centre 48-port 25GE leaf switch front view
Fortinet

FortiSwitch FS-1048E

48 × 10GE High-Density Data Centre Leaf Switch — 1.76 Tbps, Dual 100GE Spine Links

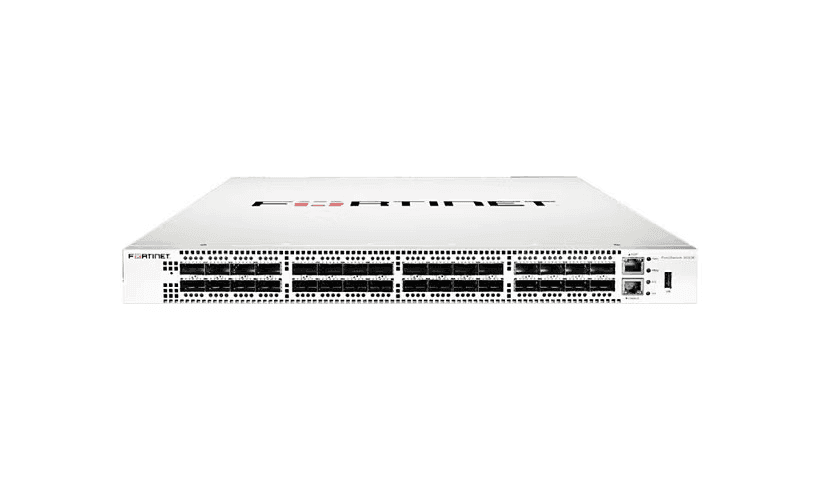

Fortinet FortiSwitch 3032E 100GE QSFP28 data centre spine switch front view
