448 GB Controller Memory
448 GB NVDIMM per controller — the highest in the standard Alletra 6000 lineup — sustains performance across large active data sets and high-throughput consolidated workloads.
4.1 PB
Max effective capacity (5:1)
448 GB
Controller memory per node
1,104 TB
Max raw capacity
6-9s Avail
99.9999% guaranteed
✅ Partner
📦 Free UK Delivery
🔒 Full Warranty
📞 UK Support
Download Official Datasheet
PDF · Official manufacturer document
HPESKU: R4U31A

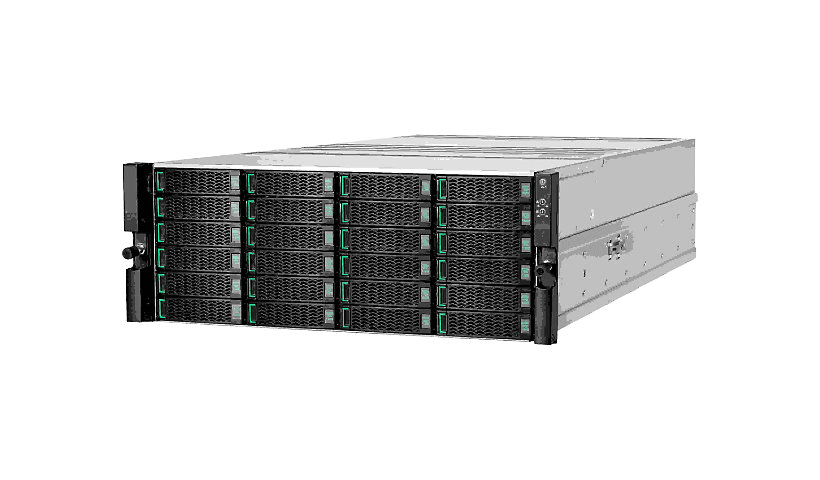

HPE Alletra 6070 High-Capacity Cloud-Native NVMe All-Flash Array
Up to 4.1 PB Effective · 448 GB Controller Memory · 99.9999% Availability — High-Capacity Alletra 6000
The HPE Alletra 6070 is the high-capacity member of the Alletra 6000 cloud-native NVMe all-flash family. With 448 GB NVDIMM per controller, 1,104 TB maximum raw capacity, and up to 4.1 PB effective capacity (5:1), it serves enterprise mid-range environments that demand petabyte-scale all-flash storage with cloud-native simplicity and guaranteed 6-nines availability.
- 23–1,104 TB raw / 60–4,100 TB effective capacity (5:1)
- 448 GB NVDIMM per controller — highest memory in 6000 family
- Up to 2 expansion shelves (max raw 1,104 TB)
- 99.9999% (6-nines) availability guaranteed
- Triple+ Parity RAID — 3 simultaneous drive failure tolerance
- Optional 100GbE iSCSI (4–8 ports) + 32Gb FC (4–24 ports)
- Storage Class Memory (SCM) ready (1.5 TB SCM kit available)
- AI-driven cloud management via HPE GreenLake
Get Pricing — Speak to Our Team
Request a Quote
Competitive pricing · Response within 4 hours
Key Features
Everything you need in one device
📦
Petabyte-Scale Capacity
Scales from 23 TB raw to 1,104 TB raw using two expansion shelves — 4.1 PB effective with 5:1 data reduction. Suitable for large database, analytics, and VDI consolidation.
⚡
NVMe + Optional SCM
All-NVMe performance with an optional 1.5 TB Storage Class Memory (SCM) kit — adds a persistent memory tier for the most latency-sensitive I/O paths within the array.
🛡️
99.9999% Availability
Six-nines availability guaranteed as standard. Triple+ Parity RAID tolerates 3 simultaneous drive failures plus intra-drive parity protection.
🔌
100GbE & 32Gb FC Support
Up to 8 × 100GbE QSFP28 ports and up to 24 × 32Gb Fibre Channel ports across both controllers — supports the highest-bandwidth host connectivity requirements.
🔃
Non-Disruptive Upgrade to 6090
A field controller upgrade kit transforms a 6070 into a 6090 — same raw/effective capacity ceiling but with 896 GB memory per controller for the most demanding workloads.
🤖
HPE InfoSight & GreenLake
AI-driven predictive analytics, automated provisioning, and SaaS management from HPE Data Services Cloud Console — always-on insights for performance and capacity.
☁️
GreenLake As-a-Service
Consume the Alletra 6070 as a pay-per-use HPE GreenLake service — eliminating up-front capital with flexible, right-sized consumption aligned to business growth.
About the HPE Alletra 6070
The HPE Alletra 6070 is the high-capacity flagship of the Alletra 6000 cloud-native NVMe all-flash family. It combines petabyte-scale effective capacity with enterprise-class data services, 99.9999% guaranteed availability, and cloud-native simplicity — making it the right-sized solution for large enterprise mid-market environments that have historically been served by more expensive enterprise all-flash platforms.
With 448 GB NVDIMM per controller — the highest standard memory configuration in the 6000 family — the 6070 is designed for consolidated environments running multiple performance-sensitive workloads simultaneously. Its capacity range (23–1,104 TB raw / 60–4.1 PB effective) bridges the gap between mid-range all-flash and the mission-critical Alletra 9000 series.
The 6070 also supports an optional 1.5 TB Storage Class Memory (SCM) kit — adding a persistent memory tier between DRAM cache and NVMe SSDs to accelerate the most latency-sensitive I/O. This positions the 6070 as a future-ready platform for NVMe-intensive applications that may benefit from SCM as workloads evolve.
HPE InfoSight provides continuous cross-stack analytics across storage, virtualisation, and applications — predicting potential issues, recommending configuration optimisations, and generating prescriptive capacity and performance forecasts. All-inclusive software licensing covers deduplication, compression, snapshots, replication, QoS, encryption, and VMware vVols, with no add-on modules required.
Technical Specifications
📄 Download Datasheet (PDF)Use Cases
Ideal for a wide range of deployments
🏢
Enterprise Mid-Market Storage
Petabyte-scale effective capacity with 6-nines availability and cloud-native management — a compelling alternative to expensive tier-1 enterprise all-flash platforms.
🖥️
Large VDI & Desktop Consolidation
448 GB controller memory and 4.1 PB effective capacity support VDI deployments of 500–5,000+ desktops with the IOPS and latency performance users expect.
📊
Data Analytics & Reporting
High-capacity NVMe all-flash delivers the throughput large analytics databases and business intelligence workloads need without the compromise of hybrid flash.
🔄
Backup-to-Flash & Fast Recovery
Inline deduplication reduces backup footprint by 5:1 or more — and near-instant snapshot restore and zero-copy clones enable fast recovery and dev/test provisioning.
FAQ
Frequently Asked Questions
Why Servnet
Why buy from Servnet?
Trusted UK IT partner since 2003 — supplying businesses of all sizes with genuine, competitively priced technology.
🏆
UK Partner
Servnet is an IT partner with direct access to leading product lines at competitive pricing.
💬
Expert Pre-Sales Advice
Our engineers will help you select the right product and advise on compatibility with your existing infrastructure.
🚚
Fast UK Delivery
Most products ship from UK stock. Express delivery available for urgent deployments.
🔒
Genuine, Warranted Kit
All products are genuine, brand-new, with full manufacturer warranty and RMA support.
📋
Configuration Services
We can pre-configure your hardware before shipping — reducing on-site deployment time and cost.
📞
Expert UK Support
Post-sale support from our certified UK engineers (Mon–Fri 09:00–17:30). We're here if anything goes wrong.
Related Products
HPE
HPE Alletra 9060
Over 2 Million IOPS · 250μs Latency · 100% Availability — Mission-Critical NVMe All-Flash
HPE

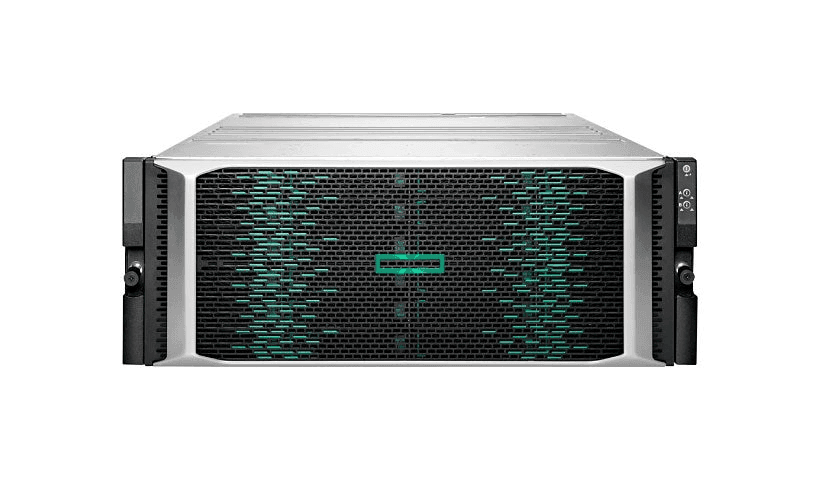

HPE Alletra 6030
