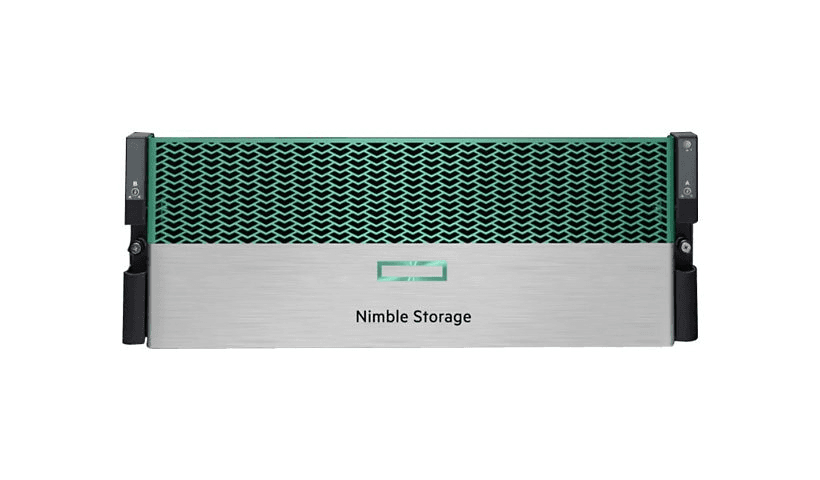

HPE Nimble Storage AF60 All Flash Array — High-Capacity Enterprise All-Flash
Up to 2 PB Effective Capacity · Sub-ms Latency · 99.9999% Availability — Enterprise All-Flash Scale
The HPE Nimble Storage AF60 extends the AF series to 553 TB raw and up to 2 PB effective capacity using two NVMe expansion shelves — making it the high-capacity workhorse of the Nimble all-flash lineup. It scales-out to a 4-array cluster for up to 8,148 TB of raw capacity, all managed as a single namespace with HPE InfoSight predictive analytics and guaranteed 6-nines availability.
- 11–553 TB raw / 40–2,037 TB effective capacity (5:1)
- 2 expansion shelves — 65% more capacity headroom vs. AF40
- Scale-out: up to 4× AF80 arrays (8,148 TB raw / 8.1 PB eff)
- 99.9999% (6-nines) availability guaranteed
- Triple+ Parity RAID — 3 simultaneous drive failure tolerance
- Sub-millisecond response time
- HPE InfoSight predictive analytics — 86% proactive issue resolution
- NEBS Level 3 certified
Get Pricing — Speak to Our Team
Request a Quote
Competitive pricing · Response within 4 hours
Key Features
Everything you need in one device
🔗
Scale-Out to 4-Array Cluster
The AF60 participates in scale-out clusters of up to 4 Nimble arrays managed as a single namespace — enabling seamless growth beyond a single system.
⚡
Sub-Millisecond All-Flash
Consistent sub-ms latency across all workloads — variable block inline deduplication and compression run simultaneously without impacting I/O response.
🛡️
99.9999% Availability
Six-nines availability guaranteed as a standard benefit. Triple+ Parity RAID provides tolerance for 3 simultaneous drive failures plus intra-drive protection.
🤖
HPE InfoSight Analytics
Predictive AI platform resolves 86% of issues proactively — cross-stack visibility spanning storage, VMs, and applications with prescriptive recommendations.
🔮
NVMe & SCM Ready Platform
Designed for non-disruptive upgrade to NVMe and SCM media — future-proofs the investment without replacing the chassis or migrating data.
📊
QoS & Data Services
Per-volume Quality of Service, app-consistent snapshots, native replication, FIPS encryption, and vVols — all-inclusive with no additional licensing.
☁️
HPE Cloud Volumes Integration
Data mobility to HPE Cloud Volumes for cloud-based DR and workload bursting — extending on-premises AF60 storage seamlessly to the cloud.
About the HPE Nimble Storage AF60
The HPE Nimble Storage AF60 is the high-capacity model in the Nimble all-flash series, designed for enterprise environments that need 2 PB of effective all-flash capacity in a single system — or who anticipate growing into multi-petabyte scale through the scale-out cluster architecture.
With support for two expansion shelves, the AF60 reaches 553 TB of raw capacity — significantly more than the AF40's single-shelf maximum of 184 TB. Applied 5:1 data reduction (inline deduplication and compression) transforms this to approximately 2,037 TB of effective capacity. Four AF80 arrays in a scale-out cluster provide up to 8,148 TB raw and approximately 8.1 PB effective — all managed as a single storage namespace from HPE InfoSight.
Like all Nimble AF series arrays, the AF60 operates with all data services active simultaneously and without configuration. There are no tuning knobs, no tiering policies to set, and no manual deduplication schedules — the storage intelligence is entirely automated, freeing administrators from day-to-day storage management tasks.
The AF60 is NEBS Level 3 certified — meeting the stringent physical and environmental requirements of telecom infrastructure environments. This certification makes it a validated choice for service providers and communications companies that require NEBS-compliant all-flash storage for their production environments.
Technical Specifications
📄 Download Datasheet (PDF)Use Cases
Ideal for a wide range of deployments
🏢
Enterprise All-Flash Consolidation
Consolidate multiple legacy storage systems onto a single 2 PB effective all-flash platform — reducing data centre footprint, power, cooling, and management complexity.
📊
Data Warehousing & Analytics
All-flash capacity at petabyte scale delivers the IOPS and throughput needed for large data warehouses, BI reporting, and real-time analytics without spinning disk bottlenecks.
🖥️
Large-Scale VDI & Virtualisation
Scale-out clustering and consistent sub-ms latency support thousands of concurrent virtual desktops or hundreds of enterprise virtual machines.
📡
Telecom / Service Provider Storage
NEBS Level 3 certification and 6-nines availability make the AF60 a validated all-flash solution for service provider and telecom infrastructure deployments.
FAQ
Frequently Asked Questions
Why Servnet
Why buy from Servnet?
Trusted UK IT reseller since 2003 — supplying businesses of all sizes with genuine, competitively priced technology.
🏆
Authorised UK Reseller
Servnet is an authorised IT reseller with direct access to leading product lines at competitive pricing.
💬
Expert Pre-Sales Advice
Our engineers will help you select the right product and advise on compatibility with your existing infrastructure.
🚚
Fast UK Delivery
Most products ship from UK stock. Express delivery available for urgent deployments.
🔒
Genuine, Warranted Kit
All products are genuine, brand-new, with full manufacturer warranty and RMA support.
📋
Configuration Services
We can pre-configure your hardware before shipping — reducing on-site deployment time and cost.
📞
24/7 Support
Post-sale support from our certified engineers. We're here if anything goes wrong.
Related Products
HPE
HPE Nimble Storage AF40
Best Price-Performance All-Flash · Up to 682 TB Effective · 99.9999% Availability
HPE

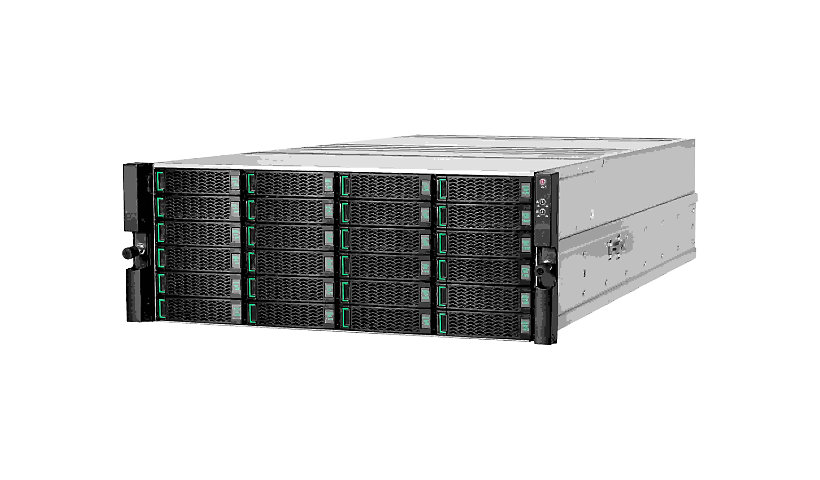

HPE Alletra 6070
Up to 4.1 PB Effective · 448 GB Controller Memory · 99.9999% Availability — High-Capacity Alletra 6000
HPE

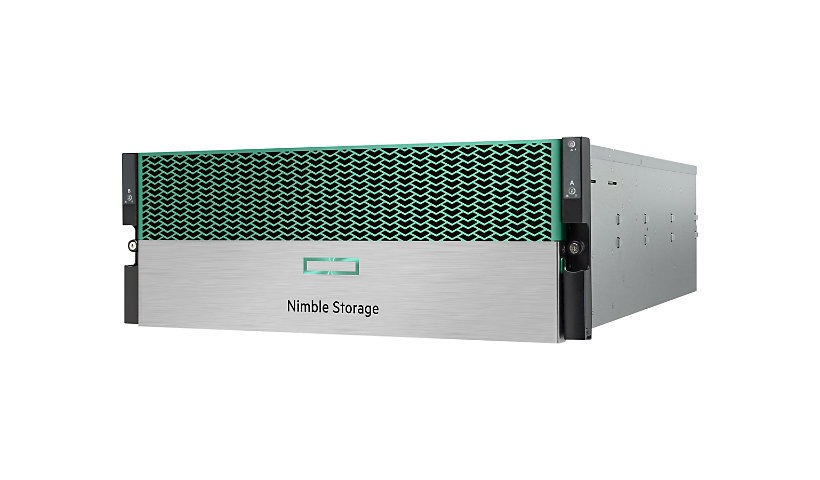

HPE Nimble Storage HF60
