Up to 5 PB Effective Capacity
Scales to 1,260 TB of HDD raw capacity using 6 expansion shelves — with 5:1 data reduction (inline dedup + compression) providing up to 5,080 TB effective.
UK’s trusted IT infrastructure partner since 2003
5 PB
Max effective capacity (5:1)
156 TB
Max SSD cache capacity
65% Faster
vs. previous CS7000
6-9s Avail
99.9999% guaranteed
✅ Authorised Reseller
📦 Free UK Delivery
🔒 Full Warranty
📞 24/7 Support
Download Official Datasheet
PDF · Official manufacturer document
HPESKU: Q8H40A

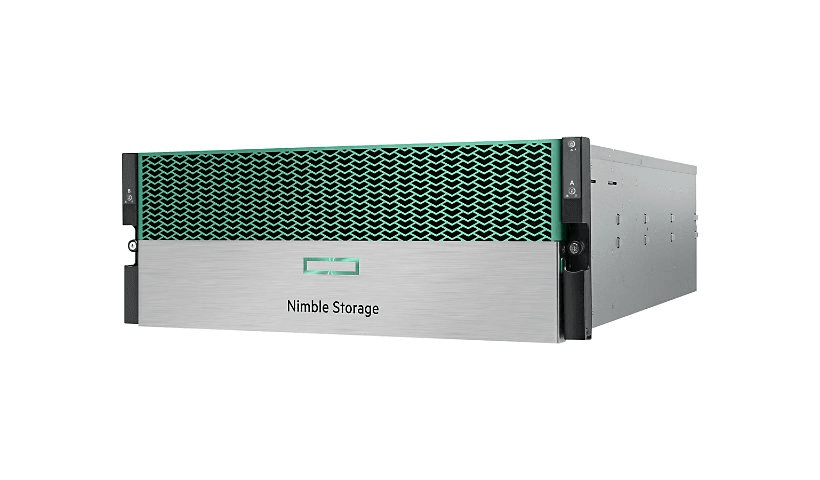

HPE Nimble Storage HF60 Adaptive Flash Array — High-Scale Enterprise Hybrid
Up to 5 PB Effective · 156 TB SSD Cache · 65% More Performance Than CS7000 — Enterprise Hybrid Scale
The HPE Nimble Storage HF60 is the high-performance, high-capacity model in the Adaptive Flash Array family — extending the performance of the CS7000 by up to 65% while scaling to 1,260 TB of HDD raw capacity and 156 TB of SSD cache. With up to 5,080 TB (approximately 5 PB) of effective capacity, the HF60 serves the largest enterprise hybrid storage requirements with 99.9999% guaranteed availability.
- 21–1,260 TB HDD raw / 1.4–156 TB SSD cache
- Up to 5,080 TB effective capacity — approximately 5 PB (5:1)
- 65% faster than previous CS7000 generation
- 99.9999% (6-nines) availability guaranteed
- Triple+ Parity RAID — tolerates 3 simultaneous drive failures
- Inline always-on variable block deduplication
- Up to 6 expansion shelves per array
- Scale-out: 4 arrays managed as single namespace
Get Pricing — Speak to Our Team
Request a Quote
Competitive pricing · Response within 4 hours
Key Features
Everything you need in one device
💾
156 TB SSD Cache Tier
Massive 156 TB SSD cache tier absorbs write I/O at flash speeds and caches the full working set of large, performance-sensitive hybrid workloads.
⚡
65% Faster Than CS7000
HPE Nimble Storage HF60 extends the high-end performance of the CS7000 by up to 65% — a significant performance uplift for the same class of workload.
🛡️
99.9999% Availability
Six-nines guaranteed availability with Triple+ Parity RAID tolerating 3 simultaneous drive failures plus intra-drive parity protection.
🤖
Inline Always-On Deduplication
Continuous variable block inline deduplication reduces HDD and cache consumption simultaneously — maximising effective capacity for backup and secondary storage.
🤖
HPE InfoSight at Petabyte Scale
AI-driven predictive analytics provides cross-stack visibility and proactive issue resolution across petabyte-scale hybrid storage deployments.
🔗
Scale-Out Cluster Architecture
Up to 4 HF60 arrays clustered as a single namespace — enabling linear scale-out of performance and capacity without architectural complexity.
📡
NEBS Level 3 Certified
Meets telecom-grade environmental and physical requirements — validated for service provider and carrier infrastructure deployments.
About the HPE Nimble Storage HF60
The HPE Nimble Storage HF60 is the flagship model in the Nimble Adaptive Flash Array family — designed for the largest enterprise hybrid storage deployments. Building on the same architecture as the HF40, the HF60 extends HDD capacity to 1,260 TB using six expansion shelves and scales the SSD cache tier to 156 TB — sufficient to hold the hot working sets of the most demanding large-scale enterprise workloads.
HPE's own internal comparisons show the HF60 extends the high-end performance of the previous-generation CS7000 platform by up to 65%. This performance improvement is delivered through a faster hardware platform, optimised NimbleOS data path, and a larger SSD cache that keeps more active data in flash while reducing HDD spindle pressure.
The HF60's scale-out architecture supports clustering up to four arrays as a single managed namespace — enabling growth to over 20 PB of effective capacity without requiring architectural redesign. All arrays in the cluster are managed through a single interface, with HPE InfoSight providing unified performance analytics, capacity forecasting, and proactive issue resolution across the entire cluster.
Like all Nimble HF series arrays, the HF60 includes inline always-on variable block deduplication as a standard feature. Running deduplication inline as data is written — rather than as a post-process — prevents redundant data from occupying either SSD cache or HDD capacity, and ensures the full 5:1 effective capacity multiplier is available from day one without a background processing window.
Technical Specifications
📄 Download Datasheet (PDF)Use Cases
Ideal for a wide range of deployments
🏢
Enterprise Backup-to-Disk at Scale
Inline deduplication ratios of 10:1 to 30:1 for backup data combined with near-instant restore make the HF60 ideal for enterprise backup consolidation at multi-petabyte scale.
📊
Large Data Lakes & Archives
Petabyte-scale HDD capacity with flash-accelerated access provides cost-effective storage for large analytics data lakes, regulatory archives, and data retention systems.
🔄
Enterprise DR & Replication Target
High effective capacity and native Nimble replication make the HF60 an efficient off-site DR target — receiving compressed, deduplicated data at WAN-efficient transfer rates.
🏗️
Consolidated Secondary Storage
Consolidate backup, DR, dev/test clones, and archive storage onto a single high-capacity adaptive flash platform managed by HPE InfoSight.
