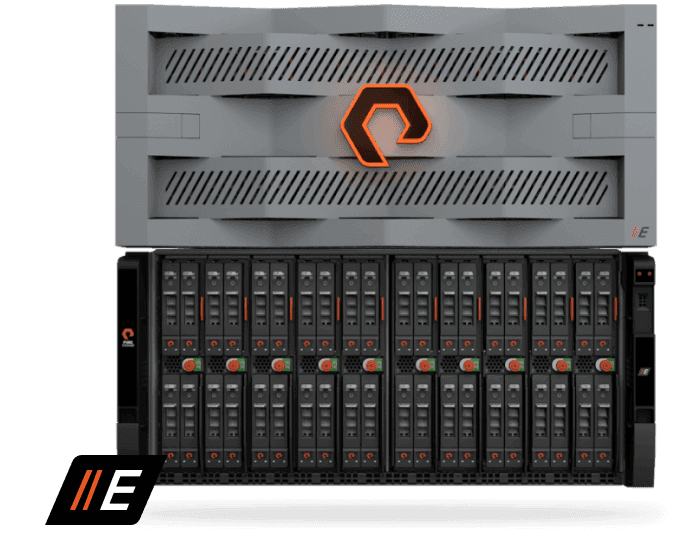

Pure Storage FlashBlade E capacity-optimised scale-out all-flash file and object storage front view
Pure Storage FBE-150
4.5 PB
Minimum configuration (75TB)
10 CH
Maximum chassis scale-out
16× 100GbE
Max network uplinks
75TB /blade
DirectFlash Module capacity
Authorised Reseller
📦 Free UK Delivery
🔒 Full Warranty
📞 24/7 Support
Key Specifications
DirectFlash Modules75TB or 150TB modules; 20/40 DFMs per chassis
Min. Configuration1.5 chassis (1 EC + 0.5 EX) — starts at 4.5 PB (75TB) or 9 PB (150TB)
Max Configuration10 chassis (2 XFMs + EC + EX chassis); scales in 1.5 PB or 3 PB increments
Chassis Form Factor5U per chassis; 1U per XFM; Chassis: 8.59" × 17.43" × 32.00"
NetworkingUp to 16× 100GbE (multi-chassis); integrated and upgradeable
ProtocolsNFS v3 and v4.1, SMB 3.x, S3 — billions of files and objects
Data ProtectionGlobal erasure coding, SafeMode Snapshots, file/object replication
SecurityAlways-on AES-256 encryption, SafeMode, immutable snapshots — included
+3 more specs below ↓
📄
Download Official Datasheet
PDF · Official manufacturer document
Pure StorageSKU: FBE-150

Pure Storage FlashBlade//E Capacity-Optimised All-Flash File and Object Storage

All-flash at disk economics — starts at 4.5 PB, NFS/S3/SMB, scales to 10 chassis

The FlashBlade//E is Pure Storage's capacity-optimised all-flash file and object storage platform — delivering the economics of disk-based storage with the performance, simplicity, and reliability of flash. Starting at 4.5 PB with 75 TB DirectFlash Modules, it scales in 1.5 PB increments to multi-petabyte repository workloads.

  • Starts at 4.5 PB (75TB modules) or 9 PB (150TB modules) — grows in 1.5–3 PB increments
  • All-flash performance at acquisition cost comparable to disk-based systems
  • Scales to 10 chassis without sacrificing reliability or efficiency
  • Native NFS, S3, and SMB — billions of files and objects per system
  • Up to 16× 100GbE uplinks per multi-chassis configuration
  • SafeMode Snapshots, global erasure coding, always-on AES-256 encryption
  • ESG-ready: smaller footprint, lower power than disk-based alternatives
  • Evergreen//One subscription — flexible consumption with guaranteed SLAs

Get Pricing — Speak to Our Team

Request a Quote

Competitive pricing · Response within 4 hours

Enquiring about: FlashBlade//E

Response within 4 business hours · No obligation

Key Features

Everything you need in one device

💰

Disk Economics, Flash Performance

FlashBlade//E achieves an acquisition price comparable to disk-based storage systems while delivering all-flash performance, enterprise-grade reliability, and the simplicity of Purity//FB OS. Lower long-term TCO comes from reduced power consumption, smaller physical footprint, and elimination of disk-related failure and media replacement costs.

📈

Modular Scale in 1.5 PB Increments

A future-proof design starts with 1.5 chassis (1 EC compute chassis + 0.5 EX storage chassis) and grows by adding 0.5 EX chassis at a time — enabling 1.5 PB capacity increments (with 75TB modules) or 3 PB increments (with 150TB modules). This granular scaling avoids over-provisioning and matches capacity purchases to actual data growth.

🌿

ESG-Ready: Lower Power and Footprint

FlashBlade//E is designed for data centre efficiency — consuming significantly less power and occupying substantially less floor space than equivalent-capacity disk-based systems. As capacity utilisation increases, efficiency improves further, creating an immediately positive environmental impact alongside long-term TCO savings.

🛡️

Enterprise Data Protection Built In

Global erasure coding, SafeMode Snapshots, always-on AES-256 encryption, file and object replication, and instant immutable snapshots are all included in FlashBlade//E without additional licensing. Enterprise-grade data protection requires no separate products or complex configuration.

🔄

Evergreen Architecture — Data-in-Place Upgrades

As higher-density DirectFlash Modules become available, existing FlashBlade//E systems can be upgraded to denser media — extending the life of the system without data migrations or chassis replacements. This capacity consolidation capability further reduces long-term TCO compared to disk systems that require full replacement cycles.

☁️

Flexible Consumption with Evergreen//One

Evergreen//One provides a subscription model for FlashBlade//E with flexible consumption, guaranteed performance SLAs, and continuous innovation — enabling organisations to consume all-flash unstructured storage as a cloud-like service without the capital expenditure and refresh cycles of traditional storage procurement.

About the FlashBlade//E

The Pure Storage FlashBlade//E is the capacity-optimised member of the FlashBlade family — purpose-built for repository workloads that require maximum all-flash density at economics comparable to disk. Starting at 4.5 PB with 75 TB DirectFlash Modules (or 9 PB with 150 TB modules), FlashBlade//E scales in 1.5 PB increments to 10 chassis without disruption.

Unlike disk-based NAS and object storage systems, FlashBlade//E delivers consistent all-flash performance for backup and recovery, archive, analytics data lakes, and AI training data repositories — with sub-millisecond access times that eliminate the storage bottlenecks inherent in spinning-disk systems at petabyte scale.

Purity//FB OS runs natively on FlashBlade//E, providing native NFS (v3 and v4.1), SMB 3.x, and S3 APIs alongside global erasure coding, always-on AES-256 encryption, SafeMode Snapshots, file replication, object replication, and data reduction. Every enterprise data service is included without additional licensing.

The ESG impact of FlashBlade//E is significant: substantially reduced power consumption, cooling requirements, and physical footprint compared to disk-based equivalents. This translates directly to lower operational costs and supports data centre sustainability commitments — and efficiency continues to improve as utilisation increases.

Technical Specifications

DirectFlash Modules75TB or 150TB modules; 20/40 DFMs per chassis
Min. Configuration1.5 chassis (1 EC + 0.5 EX) — starts at 4.5 PB (75TB) or 9 PB (150TB)
Max Configuration10 chassis (2 XFMs + EC + EX chassis); scales in 1.5 PB or 3 PB increments
Chassis Form Factor5U per chassis; 1U per XFM; Chassis: 8.59" × 17.43" × 32.00"
NetworkingUp to 16× 100GbE (multi-chassis); integrated and upgradeable
ProtocolsNFS v3 and v4.1, SMB 3.x, S3 — billions of files and objects
Data ProtectionGlobal erasure coding, SafeMode Snapshots, file/object replication
SecurityAlways-on AES-256 encryption, SafeMode, immutable snapshots — included
Power2,500W per fully populated chassis (nominal); 310W per XFM
OSPurity//FB — same OS as FlashBlade//S; all-inclusive software
SubscriptionEvergreen//One — flexible consumption with guaranteed SLAs
📄 Download Datasheet (PDF)
Use Cases

Ideal for a wide range of deployments

💾

Data Protection and Backup Targets

FlashBlade//E's all-flash throughput and SafeMode Snapshots make it a high-performance backup target with built-in ransomware protection. Rapid restore from all-flash dramatically reduces RTOs compared to disk-based backup systems — with immutable snapshots protecting data even if backup credentials are compromised.

🗄️

AI Training Data and Analytics Repositories

Large-scale AI training data, data lake storage, and analytics repositories at multi-petabyte scale benefit from FlashBlade//E's combination of consistent all-flash access times, high capacity density, and NFS/S3 protocol support — without the latency variability and mechanical reliability issues of spinning disk.

🌿

Sustainable Data Centre Consolidation

Replacing disk-based NAS and object storage with FlashBlade//E significantly reduces power consumption, cooling load, and rack space — supporting data centre sustainability targets while providing better performance and simpler management than the fragmented disk-based systems it replaces.

FAQ

Frequently Asked Questions

Q. How does FlashBlade//E compare to disk-based NAS in terms of cost?

FlashBlade//E achieves an initial acquisition cost comparable to disk-based NAS systems — while delivering substantially lower long-term TCO through reduced power consumption, cooling costs, floor space, and maintenance overhead. Unlike disk systems, there are no spinning media failures, no scheduled media replacements, and no performance degradation as the system fills. The efficiency of DirectFlash Modules also improves with higher utilisation, unlike spinning disk which performs worse as it fills.

Q. What is the minimum viable FlashBlade//E configuration?

The minimum FlashBlade//E configuration is 1.5 chassis — comprising 1 EC (Expansion Compute) chassis that provides both storage and compute resources, plus 0.5 EX (Expansion) chassis that provides additional storage. This starts at 4.5 PB of raw capacity using 75 TB DirectFlash Modules, or 9 PB with 150 TB modules. Two XFMs (eXpansion Fabric Modules) are required for multi-chassis configurations.

Why Servnet

Why buy from Servnet?

Trusted UK IT reseller since 2003 — supplying businesses of all sizes with genuine, competitively priced technology.

🏆

Authorised UK Reseller

Servnet is an authorised IT reseller with direct access to leading product lines at competitive pricing.

💬

Expert Pre-Sales Advice

Our engineers will help you select the right product and advise on compatibility with your existing infrastructure.

🚚

Fast UK Delivery

Most products ship from UK stock. Express delivery available for urgent deployments.

🔒

Genuine, Warranted Kit

All products are genuine, brand-new, with full manufacturer warranty and RMA support.

📋

Configuration Services

We can pre-configure your hardware before shipping — reducing on-site deployment time and cost.

📞

24/7 Support

Post-sale support from our certified engineers. We're here if anything goes wrong.

Related Products

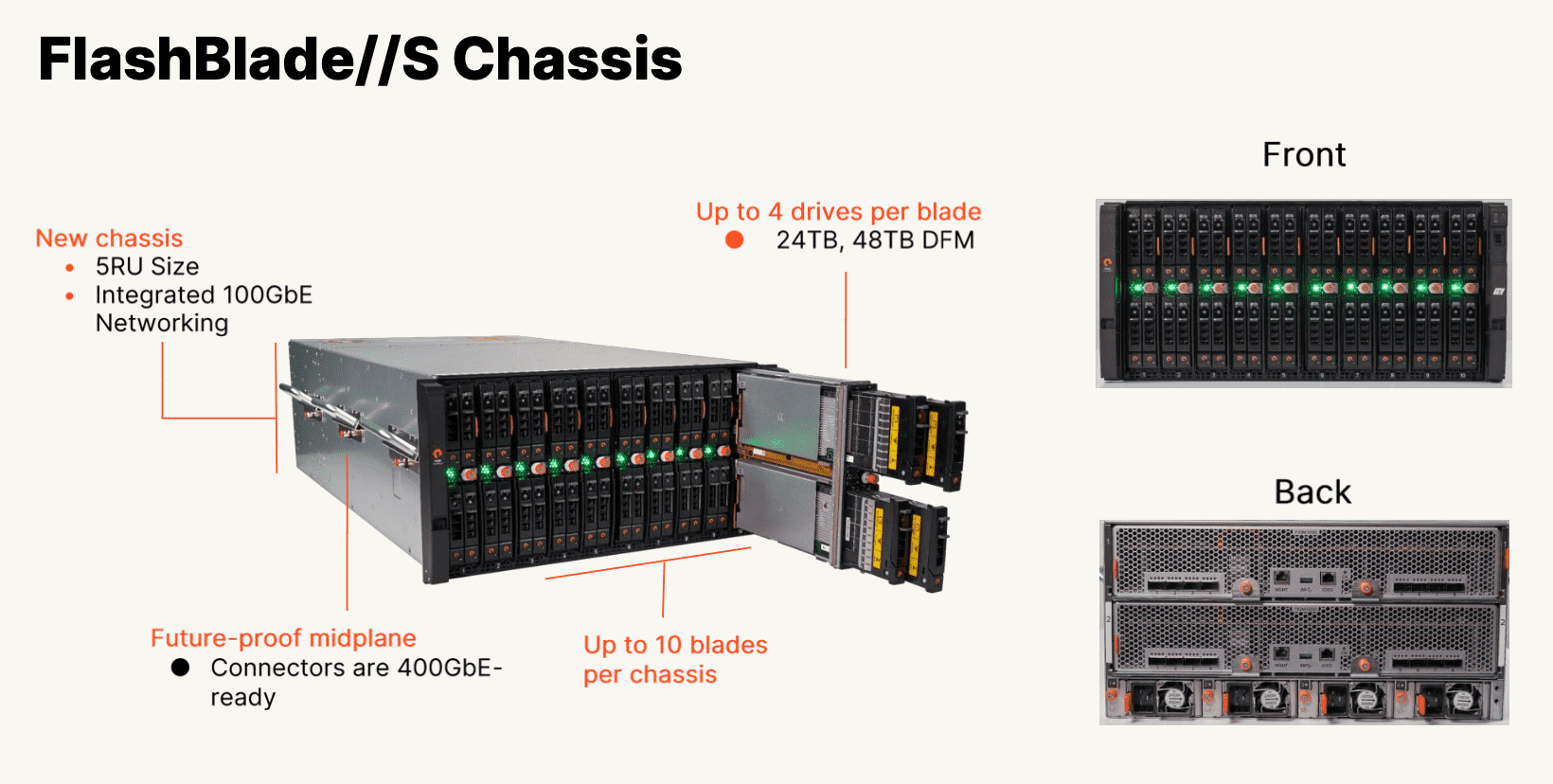

Pure Storage FlashBlade S R2 scale-out all-flash file and object storage system front view
Pure Storage

FlashBlade//S

Scale-out all-flash for AI/ML and HPC — 1,200 TB per blade, 400GbE, NFS/S3/SMB

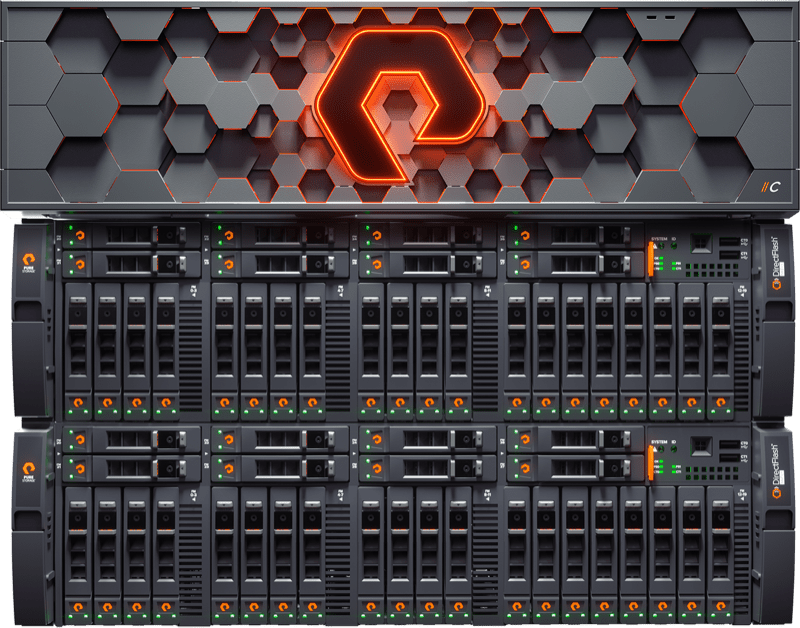

Pure Storage FlashArray C R5 capacity-optimised all-flash storage array front view
Pure Storage

FlashArray//C

Enterprise all-flash at capacity economics — 16.3 PB effective, QLC DirectFlash, 99.9999% available

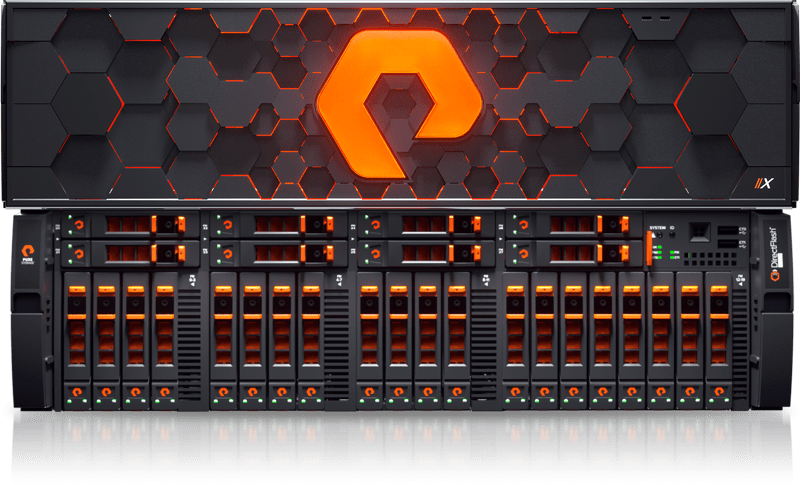

Pure Storage FlashArray X R5 mission-critical all-flash storage array front view
