Top-tier enterprise NVMe storage — 150µs latency, 9.4 PB effective, 45 GB/s

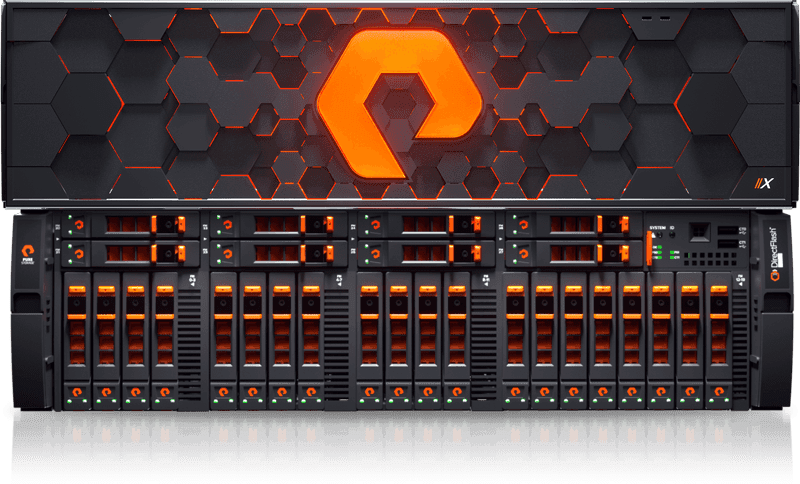

The FlashArray//XL R5 is Pure Storage's highest-performance enterprise storage platform — delivering 150µs latency, 45 GB/s throughput, and up to 9.4 PB effective capacity. Built for ultra-low-latency OLTP databases, large-scale virtualisation, and mission-critical workloads demanding maximum performance density.
Get Pricing — Speak to Our Team
Competitive pricing · Response within 4 hours
FlashArray//XL R5 delivers 3× more IOPS per rack unit over comparably configured competitive systems (HammerDB SQL Server TPCROC-C). The XL170 R5 provides a 70% performance increase over the previous generation, and the XL190 R5 adds Purity Turbo to engage the secondary controller for read-heavy workloads at the highest possible throughput.
Proprietary DirectFlash Modules replace commodity SSDs, enabling the Purity OS to manage flash media globally — resulting in 6× greater reliability than HDDs, 3× over SSDs, and continuously improving storage density. DirectFlash Modules with distributed NVRAM (DFMD) eliminate the need for separate NVRAM modules, scaling NVRAM capacity with the number of modules installed.
DirectFlash Shelf adds raw NVMe capacity beyond the FlashArray//XL chassis, connecting via NVMe-oF with RoCE over 100Gb Ethernet. Each shelf can hold up to 1,024 TB raw (3.8 PB effective), enabling the XL190 R5 to reach 2.5 PB raw with full DirectFlash Shelf configuration.
SafeMode Snapshots are enabled by default on every FlashArray, protecting against ransomware-induced data deletion even if admin credentials are compromised. Data protection configuration is completed in minutes with no additional licenses — Pure Storage ships with security on, not as an opt-in.
Evergreen Architecture enables fully data-in-place, nondisruptive controller, DirectFlash Module, and chassis upgrades across generations — unique to Pure Storage. No planned maintenance windows, no data migrations. The XL170 R5 and XL190 R5 are upgradeable from previous FlashArray//XL generations in-place.
Pure1 AIOps and Everpure Fusion provide AI-driven workload management, predictive analytics, and automated provisioning across the entire Pure Storage fleet. Management simplicity scales inversely with fleet size — adding more arrays reduces per-array overhead rather than increasing it.
The Pure Storage FlashArray//XL R5 represents the pinnacle of the FlashArray family — a purpose-built, high-performance NVMe storage platform engineered for the most demanding enterprise workloads. With 150µs latency and 45 GB/s throughput, the XL delivers 3× more IOPS per rack unit over competing enterprise storage systems, powered by the latest multi-core CPUs and proprietary DirectFlash Modules.
Three models cover a broad performance and capacity range: the XL130 R5 (up to 5.5 PB effective, up to 1.46 PB raw), XL170 R5 (up to 7.4 PB effective, up to 1.97 PB raw), and XL190 R5 (up to 9.4 PB effective, up to 2.5 PB raw). The XL190 R5 additionally features Purity Turbo, which actively employs the secondary controller to serve read I/O — maximising throughput for read-intensive workloads without complexity.
DirectFlash Shelf expansion units add NVMe capacity via 100Gb RoCE, each shelf supporting up to 1,024 TB raw (3.8 PB effective). The FlashArray//XL supports 32 host I/O ports per controller — doubling FlashArray//X — with 200GbE RoCE inter-controller links for enhanced cross-controller high availability. The DirectCompress Accelerator v2 card offloads inline compression to dedicated PCIe hardware, maintaining maximum compression ratios under heavy load.
Built on Pure Storage's Evergreen Architecture, the FlashArray//XL supports fully nondisruptive, data-in-place generational upgrades — eliminating the planned downtime and data migrations that accompany legacy storage refreshes. SafeMode Snapshots are enabled by default, and the full data protection suite (instant snapshots, replication, ransomware remediation) is included without separate licensing.
FlashArray//XL delivers 150µs latency and the highest IOPS density in the FlashArray family — ideal for SQL Server, Oracle, and SAP HANA OLTP databases where microseconds of latency variability translate directly to transaction throughput and user experience.
With 3× more IOPS per rack unit and Evergreen nondisruptive upgrades, FlashArray//XL maximises VM density for VMware vSphere, Microsoft Hyper-V, and Red Hat OpenShift environments — reducing both physical footprint and operational disruption compared to legacy storage.
FlashArray//XL supports NFS and SMB alongside NVMe/FC for AI model training checkpoints, dataset storage, and inference serving — providing unified block and file performance without requiring separate storage systems for different AI infrastructure components.
