Head-to-head · every figure from the vendor documents

HPE DL360 Gen10 vs Lenovo SR630 V4

A specification-by-specification comparison of the HPE ProLiant DL360 Gen10 and the Lenovo ThinkSystem SR630 V4, built from HPE’s and Lenovo’s own documents. None of the headline measures favour the DL360 Gen10; 6 favour the SR630 V4, and they share no processors.

Bottom line. SR630 V4 leads on virtualisation, databases and in-memory work, storage density, AI and acceleration, network throughput. Neither vendor publishes benchmarks for these machines, so every call here is made on what their documents state.

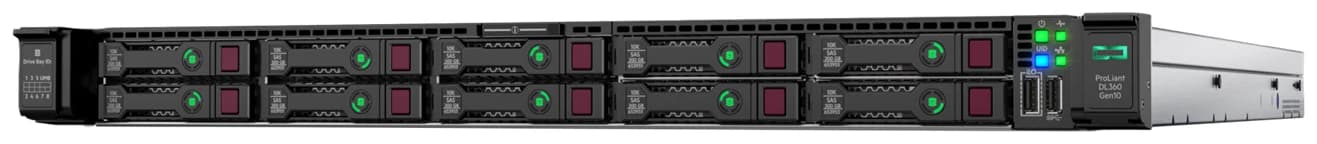

HPE ProLiant DL360 Gen10 front: ten 2.5-inch carriers in two rows of five, bay-ID plate, power and UID buttons, iLO service port and USB 3.0
HPE ProLiant
DL360 Gen10
1U Rack2 sockets24 DIMMHPE iLO 5
Configure the DL360 Gen10 →Full data sheet
VS
Lenovo ThinkSystem SR630 V4 1U server, front three-quarter view with the optional lockable security bezel in place
Lenovo ThinkSystem
SR630 V4
1U Rack2 sockets32 DIMMXClarity Controller 3
Configure the SR630 V4 →Full data sheet
01 — Scoreboard

The measures that decide it

Each row is a figure both vendors publish. Bars show the split between the two; a badge marks the larger figure, which is not always the better buy — a shallower chassis or a lower power ceiling can matter more.

DL360 Gen102
Processor sockets
SR630 V42
DL360 Gen1056
Cores, fully populated
Largest listed processor × its socket count
SR630 V4288Higher
DL360 Gen103 TB
Memory ceiling
As each document states it
SR630 V48 TBHigher
DL360 Gen1010
Drive bays
SR630 V416Higher
DL360 Gen10Up to 2
Accelerators
SR630 V4Up to 3Higher
DL360 Gen101,600 W
Largest power supply
SR630 V42,000 WHigher
DL360 Gen101U Rack
Rack height
SR630 V41U Rack
DL360 Gen10100 GbE class
Fastest network option
SR630 V4800 GbE classHigher
02 — Verdict

Which one, and why

Drawn from the measures above and each model’s own data sheet. Neither vendor publishes benchmark results for these servers, so nothing here claims one is “faster”.

Choose the DL360 Gen10 if…

  • Nothing is cut from the compute half. A 113-row processor table, 112 rows of which, the same 24 DDR4 slots at twelve per socket, the same C621 chipset and the same iLO 5 silicon as the 2U DL380 Gen10 — so a pair of these in two rack units doubles the socket count and doubles the DIMM count against one DL380 Gen10 in the same space.

Choose the SR630 V4 if…

  • Cores, fully populated: 288 against 56 on the DL360 Gen10
  • Memory ceiling: 8 TB against 3 TB on the DL360 Gen10
  • Drive bays: 16 against 10 on the DL360 Gen10
  • Two processor families in one 1U chassis: 27 Xeon 6 P-core SKUs of up to 86 cores, and seven 6700E E-core SKUs of up to 144 cores for thread-dense scale-out work.
03 — By workload

Where each one pulls ahead

Calls made on documented capacity only — cores, memory, bays, accelerators and network options — with the figures behind each one shown.

VirtualisationDL360 Gen10: 56 cores with 3 TB. SR630 V4: 288 cores with 8 TB.SR630 V4
Databases & in-memoryMemory ceiling 3 TB against 8 TB, across 24 and 32 DIMM slots.SR630 V4
Storage density10 bays in 1U against 16 in 1U.SR630 V4
AI & acceleration2 accelerators against 3 in the vendor documents.SR630 V4
Network throughputFastest card listed: 100 GbE class against 800 GbE class.SR630 V4
04 — Specifications

Side by side, differences first

Everything both documents state, grouped. The default view hides rows where the two machines are identical.

Processors

Every processor each vendor lists for the model, from its own document.

SpecificationDL360 Gen10SR630 V4
Processors listed11334
Most cores per processor28144
Highest processor TDP205 W350 W
Processor families2nd Gen Intel Xeon Scalable (Platinum) · 1st Gen Intel Xeon Scalable (Platinum) · 2nd Gen Intel Xeon Scalable (Gold) · 1st Gen Intel Xeon Scalable (Gold) · 2nd Gen Intel Xeon Scalable (Silver) · 1st Gen Intel Xeon Scalable (Silver) · 2nd Gen Intel Xeon Scalable (Bronze) · 1st Gen Intel Xeon Scalable (Bronze)Xeon 6 P-core · Xeon 6 E-core

Memory

SpecificationDL360 Gen10SR630 V4
DIMM slots2432
Slots per processor1216
Largest module listed512 GB256 GB
Fastest rated speed2,933 MT/s8,000 MT/s
Memory typesRDIMM DDR4-2933 (2nd Gen Intel Xeon Scalable only) · RDIMM DDR4-2666 (1st Gen Intel Xeon Scalable only) · LRDIMM DDR4-2933 · HPE Persistent Memory (2666 MT/s) + 1 moreRDIMM DDR5-6400 · 3DS RDIMM DDR5-6400 · MRDIMM 8000 MHz (P-core CPUs only) · CXL 2.0 memory modules (E3.S 2T, P-core CPUs only)

Storage

Bay counts are the maximum each document states, including rear and mid-chassis positions.

SpecificationDL360 Gen10SR630 V4
Maximum bays1016
Bay sizes2.5-inch · 3.5-inch2.5-inch · E3.S
Boot devicesHPE NS204i-p x2 Lanes NVMe PCIe3 x8 OS Boot Device · 2 x M.2 2280 SATA on the HPE DL360 Gen10 SATA M.2 2280 Riser Kit (867978-B21) · Up to 4 x M.2 via 2 Dual uFF cartridges in the Universal Media Bay (867970-B21), or 2 x M.2 via a Dual uFF carrier in the rear bay (867972-B21) + 2 moreInternal M.2 (2 drives): B550i-2i / B545i-2i / B350i-2i · Rear hot-swap M.2 (2 drives): B550p-2HS / B540p-2HS · Front hot-swap M.2 (2 drives): B550d-2HS / B540d-2HS
Storage controllers1821

Accelerators & I/O

SpecificationDL360 Gen10SR630 V4
Accelerators supportedUp to 2Up to 3
OCP slots02
Network cards listed1130

Power & platform

SpecificationDL360 Gen10SR630 V4
Power-supply options710
Output range500–1,600 W800–2,000 W
Input typesAC · −48 V DCAC · 277 VAC / HVDC · −48 V DC
ManagementHPE iLO 5XClarity Controller 3
Chassis depthVendors measure depth differently — see each data sheetSFF drives: 4.29 x 43.46 x 70.7 cm (1.69 x 17.11 x 27.83 in)788 mm (31 in.)
05 — The data

Processors, memory, bays and power

The same charts each data sheet carries, drawn to the same scale so the two ranges can be read against each other.

DL360 Gen10: processors by cores and TDP

HPE ProLiant DL360 Gen10 processors0816243250 W100 W150 W200 W250 WCores per processorIntel Xeon Platinum 8280 — 28 cores · 205 W · 2.7 GHz base · 38.5 MB cache · 2933Intel Xeon Platinum 8280L — 28 cores · 205 W · 2.7 GHz base · 38.5 MB cache · 2933Intel Xeon Platinum 8280M — 28 cores · 205 W · 2.7 GHz base · 38.5 MB cache · 2933Intel Xeon Platinum 8276 — 28 cores · 165 W · 2.2 GHz base · 38.5 MB cache · 2933Intel Xeon Platinum 8276L — 28 cores · 165 W · 2.2 GHz base · 38.5 MB cache · 2933Intel Xeon Platinum 8276M — 28 cores · 165 W · 2.2 GHz base · 38.5 MB cache · 2933Intel Xeon Platinum 8270 — 26 cores · 205 W · 2.7 GHz base · 35.75 MB cache · 2933Intel Xeon Platinum 8268 — 24 cores · 205 W · 2.9 GHz base · 35.75 MB cache · 2933Intel Xeon Platinum 8260 — 24 cores · 165 W · 2.4 GHz base · 35.75 MB cache · 2933Intel Xeon Platinum 8260L — 24 cores · 165 W · 2.4 GHz base · 35.75 MB cache · 2933Intel Xeon Platinum 8260M — 24 cores · 165 W · 2.4 GHz base · 35.75 MB cache · 2933Intel Xeon Platinum 8260Y — 24 cores · 165 W · 2.4 GHz base · 35.75 MB cache · 2933Intel Xeon Platinum 8253 — 16 cores · 125 W · 2.2 GHz base · 22 MB cache · 2933Intel Xeon Platinum 8256 — 4 cores · 105 W · 3.8 GHz base · 16.5 MB cache · 2933Intel Xeon Platinum 8180 — 28 cores · 205 W · 2.5 GHz base · 38.5 MB cache · 2666Intel Xeon Platinum 8180M — 28 cores · 205 W · 2.5 GHz base · 38.5 MB cache · 2666Intel Xeon Platinum 8176 — 28 cores · 165 W · 2.1 GHz base · 38.5 MB cache · 2666Intel Xeon Platinum 8170 — 26 cores · 165 W · 2.1 GHz base · 35.75 MB cache · 2666Intel Xeon Platinum 8164 — 26 cores · 150 W · 2 GHz base · 35.75 MB cache · 2666Intel Xeon Platinum 8168 — 24 cores · 205 W · 2.7 GHz base · 33 MB cache · 2666Intel Xeon Platinum 8165 — 24 cores · 205 W · 2.3 GHz base · 33 MB cache · 2666Intel Xeon Platinum 8160 — 24 cores · 150 W · 2.1 GHz base · 33 MB cache · 2666Intel Xeon Platinum 8160M — 24 cores · 150 W · 2.1 GHz base · 33 MB cache · 2666Intel Xeon Platinum 8153 — 16 cores · 125 W · 2 GHz base · 22 MB cache · 2666Intel Xeon Platinum 8158 — 12 cores · 150 W · 3 GHz base · 24.75 MB cache · 2666Intel Xeon Platinum 8156 — 4 cores · 105 W · 3.6 GHz base · 16.5 MB cache · 2666Intel Xeon Gold 6258R — 28 cores · 205 W · 2.7 GHz base · 38.5 MB cache · 2933Intel Xeon Gold 6238R — 28 cores · 165 W · 2.2 GHz base · 38.5 MB cache · 2933Intel Xeon Gold 6230R — 26 cores · 150 W · 2.1 GHz base · 35.75 MB cache · 2933Intel Xeon Gold 6248R — 24 cores · 205 W · 3 GHz base · 35.75 MB cache · 2933Intel Xeon Gold 6240R — 24 cores · 165 W · 2.4 GHz base · 35.75 MB cache · 2933Intel Xeon Gold 6212U — 24 cores · 165 W · 2.4 GHz base · 35.75 MB cache · 2933Intel Xeon Gold 6252 — 24 cores · 150 W · 2.1 GHz base · 35.75 MB cache · 2933Intel Xeon Gold 6252N — 24 cores · 150 W · 2.3 GHz base · 35.75 MB cache · 2933Intel Xeon Gold 5220R — 24 cores · 150 W · 2.2 GHz base · 35.75 MB cache · 2666Intel Xeon Gold 6262V — 24 cores · 135 W · 1.9 GHz base · 33 MB cache · 2933Intel Xeon Gold 6238 — 22 cores · 140 W · 2.1 GHz base · 30.25 MB cache · 2933Intel Xeon Gold 6238L — 22 cores · 140 W · 2.1 GHz base · 30.25 MB cache · 2933Intel Xeon Gold 6238M — 22 cores · 140 W · 2.1 GHz base · 30.25 MB cache · 2933Intel Xeon Gold 6242R — 20 cores · 205 W · 3.1 GHz base · 35.75 MB cache · 2933Intel Xeon Gold 6248 — 20 cores · 150 W · 2.5 GHz base · 27.5 MB cache · 2933Intel Xeon Gold 6210U — 20 cores · 150 W · 2.5 GHz base · 27.5 MB cache · 2933Intel Xeon Gold 6230 — 20 cores · 125 W · 2.1 GHz base · 27.5 MB cache · 2933Intel Xeon Gold 6230N — 20 cores · 125 W · 2.3 GHz base · 27.5 MB cache · 2933Intel Xeon Gold 6209U — 20 cores · 125 W · 2.1 GHz base · 27.5 MB cache · 2933Intel Xeon Gold 5218R — 20 cores · 125 W · 2.1 GHz base · 27.5 MB cache · 2666Intel Xeon Gold 6222V — 20 cores · 115 W · 1.8 GHz base · 27.5 MB cache · 2933Intel Xeon Gold 6254 — 18 cores · 200 W · 3.1 GHz base · 24.75 MB cache · 2933Intel Xeon Gold 6240 — 18 cores · 150 W · 2.6 GHz base · 24.75 MB cache · 2933Intel Xeon Gold 6240L — 18 cores · 150 W · 2.6 GHz base · 24.75 MB cache · 2933Intel Xeon Gold 6240M — 18 cores · 150 W · 2.6 GHz base · 24.75 MB cache · 2933Intel Xeon Gold 6240Y — 18 cores · 150 W · 2.6 GHz base · 24.75 MB cache · 2933Intel Xeon Gold 5220 — 18 cores · 125 W · 2.2 GHz base · 24.75 MB cache · 2666Intel Xeon Gold 5220S — 18 cores · 125 W · 2.7 GHz base · 24.75 MB cache · 2666Intel Xeon Gold 6246R — 16 cores · 205 W · 3.4 GHz base · 35.75 MB cache · 2933Intel Xeon Gold 6242 — 16 cores · 150 W · 2.8 GHz base · 22 MB cache · 2933Intel Xeon Gold 6226R — 16 cores · 150 W · 2.9 GHz base · 22 MB cache · 2933Intel Xeon Gold 6208U — 16 cores · 150 W · 2.9 GHz base · 22 MB cache · 2933Intel Xeon Gold 5218 — 16 cores · 125 W · 2.3 GHz base · 22 MB cache · 2666Intel Xeon Gold 5218B — 16 cores · 125 W · 2.3 GHz base · 22 MB cache · 2666Intel Xeon Gold 5218N — 16 cores · 110 W · 2.3 GHz base · 22 MB cache · 2666Intel Xeon Gold 6256 — 12 cores · 205 W · 3.6 GHz base · 33 MB cache · 2933Intel Xeon Gold 6246 — 12 cores · 165 W · 3.3 GHz base · 24.75 MB cache · 2933Intel Xeon Gold 6226 — 12 cores · 125 W · 2.7 GHz base · 19.25 MB cache · 2933Intel Xeon Gold 5215 — 10 cores · 85 W · 2.5 GHz base · 13.75 MB cache · 2666Intel Xeon Gold 5215L — 10 cores · 85 W · 2.5 GHz base · 13.75 MB cache · 2666Intel Xeon Gold 5215M — 10 cores · 85 W · 2.5 GHz base · 13.75 MB cache · 2666Intel Xeon Gold 6250 — 8 cores · 185 W · 3.9 GHz base · 35.75 MB cache · 2933Intel Xeon Gold 6250L — 8 cores · 185 W · 3.9 GHz base · 35.75 MB cache · 2933Intel Xeon Gold 6244 — 8 cores · 150 W · 3.6 GHz base · 24.75 MB cache · 2933Intel Xeon Gold 6234 — 8 cores · 130 W · 3.3 GHz base · 24.75 MB cache · 2933Intel Xeon Gold 5217 — 8 cores · 115 W · 3 GHz base · 11 MB cache · 2666Intel Xeon Gold 5222 — 4 cores · 105 W · 3.8 GHz base · 16.5 MB cache · 2933Intel Xeon Gold 6152 — 22 cores · 140 W · 2.1 GHz base · 30.25 MB cache · 2666Intel Xeon Gold 6148 — 20 cores · 150 W · 2.4 GHz base · 27.5 MB cache · 2666Intel Xeon Gold 6138 — 20 cores · 125 W · 2 GHz base · 27.5 MB cache · 2666Intel Xeon Gold 6154 — 18 cores · 200 W · 3 GHz base · 24.75 MB cache · 2666Intel Xeon Gold 6150 — 18 cores · 165 W · 2.7 GHz base · 24.75 MB cache · 2666Intel Xeon Gold 6140 — 18 cores · 140 W · 2.3 GHz base · 24.75 MB cache · 2666Intel Xeon Gold 6143 — 16 cores · 205 W · 2.8 GHz base · 22 MB cache · 2666Intel Xeon Gold 6142 — 16 cores · 150 W · 2.6 GHz base · 22 MB cache · 2666Intel Xeon Gold 6130 — 16 cores · 125 W · 2.1 GHz base · 22 MB cache · 2666Intel Xeon Gold 6132 — 14 cores · 140 W · 2.6 GHz base · 19.25 MB cache · 2666Intel Xeon Gold 5120 — 14 cores · 105 W · 2.2 GHz base · 19.25 MB cache · 2400Intel Xeon Gold 5117 — 14 cores · 105 W · 2 GHz base · 19.25 MB cache · 2400Intel Xeon Gold 6146 — 12 cores · 165 W · 3.2 GHz base · 24.75 MB cache · 2666Intel Xeon Gold 6136 — 12 cores · 150 W · 3 GHz base · 24.75 MB cache · 2666Intel Xeon Gold 6126 — 12 cores · 125 W · 2.6 GHz base · 19.25 MB cache · 2666Intel Xeon Gold 5118 — 12 cores · 105 W · 2.3 GHz base · 16.5 MB cache · 2400Intel Xeon Gold 5115 — 10 cores · 85 W · 2.4 GHz base · 13.75 MB cache · 2400Intel Xeon Gold 6144 — 8 cores · 150 W · 3.5 GHz base · 24.75 MB cache · 2666Intel Xeon Gold 6134 — 8 cores · 130 W · 3.2 GHz base · 24.75 MB cache · 2666Intel Xeon Gold 6134M — 8 cores · 130 W · 3.2 GHz base · 24.75 MB cache · 2666Intel Xeon Gold 6128 — 6 cores · 115 W · 3.4 GHz base · 19.25 MB cache · 2666Intel Xeon Gold 5122 — 4 cores · 105 W · 3.6 GHz base · 16.5 MB cache · 2666Intel Xeon Silver 4216 — 16 cores · 100 W · 2.1 GHz base · 22 MB cache · 2400Intel Xeon Silver 4214R — 12 cores · 100 W · 2.4 GHz base · 16.5 MB cache · 2400Intel Xeon Silver 4214 — 12 cores · 85 W · 2.2 GHz base · 16.5 MB cache · 2400Intel Xeon Silver 4214Y — 12 cores · 85 W · 2.2 GHz base · 16.5 MB cache · 2400Intel Xeon Silver 4210R — 10 cores · 100 W · 2.4 GHz base · 13.75 MB cache · 2400Intel Xeon Silver 4210 — 10 cores · 85 W · 2.2 GHz base · 13.75 MB cache · 2400Intel Xeon Silver 4215R — 8 cores · 130 W · 3.2 GHz base · 11 MB cache · 2400Intel Xeon Silver 4215 — 8 cores · 85 W · 2.5 GHz base · 11 MB cache · 2400Intel Xeon Silver 4208 — 8 cores · 85 W · 2.1 GHz base · 11 MB cache · 2400Intel Xeon Silver 4116 — 12 cores · 85 W · 2.1 GHz base · 16.5 MB cache · 2400Intel Xeon Silver 4114 — 10 cores · 85 W · 2.2 GHz base · 13.75 MB cache · 2400Intel Xeon Silver 4110 — 8 cores · 85 W · 2.1 GHz base · 11 MB cache · 2400Intel Xeon Silver 4108 — 8 cores · 85 W · 1.8 GHz base · 11 MB cache · 2400Intel Xeon Silver 4112 — 4 cores · 85 W · 2.6 GHz base · 8.25 MB cache · 2400Intel Xeon Bronze 3206R — 8 cores · 85 W · 1.9 GHz base · 11 MB cache · 2133Intel Xeon Bronze 3204 — 6 cores · 85 W · 1.9 GHz base · 8.25 MB cache · 2133Intel Xeon Bronze 3106 — 8 cores · 85 W · 1.7 GHz base · 11 MB cache · 2133Intel Xeon Bronze 3104 — 6 cores · 85 W · 1.7 GHz base · 8.25 MB cache · 2133828028 cores — the top SKU6262V5.6 W/core — most efficient
2nd Gen Intel Xeon Scalable (Platinum) 141st Gen Intel Xeon Scalable (Platinum) 122nd Gen Intel Xeon Scalable (Gold) 471st Gen Intel Xeon Scalable (Gold) 222nd Gen Intel Xeon Scalable (Silver) 91st Gen Intel Xeon Scalable (Silver) 52nd Gen Intel Xeon Scalable (Bronze) 21st Gen Intel Xeon Scalable (Bronze) 2Bubble size = L3 cache · hover a bubble for the full SKU

SR630 V4: processors by cores and TDP

Lenovo ThinkSystem SR630 V4 processors081624324048566472808896104112120128136144100 W150 W200 W250 W300 W350 WCores per processorIntel Xeon 6 6787P — 86 cores / 172 threads · 350 W · 2 GHz base · 336 MB cache · 6400Intel Xeon 6 6781P — 80 cores / 160 threads · 350 W · 2 GHz base · 336 MB cache · 6400Intel Xeon 6 6761P — 64 cores / 128 threads · 350 W · 2.5 GHz base · 336 MB cache · 6400Intel Xeon 6 6767P — 64 cores / 128 threads · 350 W · 2.4 GHz base · 336 MB cache · 6400Intel Xeon 6 6760P — 64 cores / 128 threads · 330 W · 2.2 GHz base · 320 MB cache · 6400Intel Xeon 6 6747P — 48 cores / 96 threads · 330 W · 2.7 GHz base · 288 MB cache · 6400Intel Xeon 6 6741P — 48 cores / 96 threads · 300 W · 2.5 GHz base · 288 MB cache · 6400Intel Xeon 6 6740P — 48 cores / 96 threads · 270 W · 2.1 GHz base · 288 MB cache · 6400Intel Xeon 6 6736P — 36 cores / 72 threads · 205 W · 2 GHz base · 144 MB cache · 6400Intel Xeon 6 6732P — 32 cores / 64 threads · 350 W · 3.8 GHz base · 144 MB cache · 6400Intel Xeon 6 6745P — 32 cores / 64 threads · 300 W · 3.1 GHz base · 336 MB cache · 6400Intel Xeon 6 6737P — 32 cores / 64 threads · 270 W · 2.9 GHz base · 144 MB cache · 6400Intel Xeon 6 6730P — 32 cores / 64 threads · 250 W · 2.5 GHz base · 288 MB cache · 6400Intel Xeon 6 6731P — 32 cores / 64 threads · 245 W · 2.5 GHz base · 144 MB cache · 6400Intel Xeon 6 6530P — 32 cores / 64 threads · 225 W · 2.3 GHz base · 144 MB cache · 6400Intel Xeon 6 6527P — 24 cores / 48 threads · 255 W · 3 GHz base · 144 MB cache · 6400Intel Xeon 6 6521P — 24 cores / 48 threads · 225 W · 2.6 GHz base · 144 MB cache · 6400Intel Xeon 6 6520P — 24 cores / 48 threads · 210 W · 2.4 GHz base · 144 MB cache · 6400Intel Xeon 6 6725P — 16 cores / 32 threads · 235 W · 3.7 GHz base · 192 MB cache · 6400Intel Xeon 6 6724P — 16 cores / 32 threads · 210 W · 3.6 GHz base · 72 MB cache · 6400Intel Xeon 6 6517P — 16 cores / 32 threads · 190 W · 3.2 GHz base · 72 MB cache · 6400Intel Xeon 6 6511P — 16 cores / 32 threads · 150 W · 2.3 GHz base · 72 MB cache · 6400Intel Xeon 6 6515P — 16 cores / 32 threads · 150 W · 2.3 GHz base · 72 MB cache · 6400Intel Xeon 6 6505P — 12 cores / 24 threads · 150 W · 2.2 GHz base · 48 MB cache · 6400Intel Xeon 6 6714P — 8 cores / 16 threads · 165 W · 4 GHz base · 48 MB cache · 6400Intel Xeon 6 6507P — 8 cores / 16 threads · 150 W · 3.5 GHz base · 48 MB cache · 6400Intel Xeon 6 6503P — 8 cores / 16 threads · 135 W · 2.8 GHz base · 48 MB cache · 6400Intel Xeon 6 6780E — 144 cores / 144 threads · 330 W · 2.2 GHz base · 108 MB cache · 6400Intel Xeon 6 6766E — 144 cores / 144 threads · 250 W · 1.9 GHz base · 108 MB cache · 6400Intel Xeon 6 6756E — 128 cores / 128 threads · 225 W · 1.8 GHz base · 96 MB cache · 6400Intel Xeon 6 6746E — 112 cores / 112 threads · 250 W · 2 GHz base · 96 MB cache · 5600Intel Xeon 6 6731E — 96 cores / 96 threads · 250 W · 2.2 GHz base · 96 MB cache · 5600Intel Xeon 6 6740E — 96 cores / 96 threads · 250 W · 2.4 GHz base · 96 MB cache · 6400Intel Xeon 6 6710E — 64 cores / 64 threads · 205 W · 2.4 GHz base · 96 MB cache · 56006 6780E144 cores — the top SKU6 6766E1.7 W/core — most efficient
Xeon 6 P-core 27Xeon 6 E-core 7Bubble size = L3 cache · hover a bubble for the full SKU

DL360 Gen10: memory with every slot filled

16 GB384 GB64 GB1.5 TB128 GB3 TB512 GB12 TB24 slots · 12 per processor · each tick = one DIMM

SR630 V4: memory with every slot filled

16 GB512 GB32 GB1 TB64 GB2 TB96 GB3 TB128 GB4 TB256 GB8 TB32 slots · 16 per processor · each tick = one DIMM

DL360 Gen10: drive bays

Front panel

10 × 2.5" SAS/SATA + NVMe at the front — 10 bays in total.

SAS/SATANVMeSAS/SATA + NVMe

SR630 V4: drive bays

Front panel

10 × 2.5" SAS/SATA at the front — 10 bays in total.

SAS/SATANVMeSAS/SATA + NVMe

DL360 Gen10: power supplies

0500100015002000500 W Platinum — Up to 94% efficiency. 100-240 VAC. 1840 BTU/hr at 200 VAC.500Platinum800 W Platinum — Up to 94% efficiency. 100-240 VAC. 2958 BTU/hr at 200 VAC.800Platinum800 W Titanium — Up to 96% efficiency. 200-240 VAC. One of the three part numbers HPE names as meeting the EU/UK Lot 9 96% single-output requirement from 1 January 2024.800Titanium800 W Up to 94% (DC input) — -48VDC input, -40 Vdc to -72 Vdc.800DC800 W Up to 94% (universal AC/DC) — An 800W Flex Slot Universal power supply (200-277 VAC) is rated in the Technical Specifications section and referenced in Standard Features ("also available in -48VDC and 227VAC/380VDC power inputs"), but this revision's HPE Power Supplies option list does not carry a part number for it.800DC1000 W Titanium — 100-240 VAC. 3596 BTU/hr at 200 VAC. One of the three part numbers HPE names as meeting the EU/UK Lot 9 96% single-output requirement from 1 January 2024.1000Titanium1600 W Platinum — Up to 94% efficiency. High line only, 200-240 VAC. 5918 BTU/hr at 200 VAC.1600PlatinumWatts · dashed line = output at 100–120 V low line
AC−48 V DC

SR630 V4: power supplies

0500100015002000800 W Platinum — CRPS v1.5, 230V/115V, min qty 2800Platinum800 W Titanium — CRPS Premium, 230V/115V, min qty 1800Titanium800 W Titanium — CRPS v1.4, 230V/115V, min qty 2800Titanium1300 W not stated — -48V DC CRPS Premium (-44V to -54V DC), min qty 21300DC1300 W Platinum — CRPS v1.5, 230V/115V (1000W at 115V), min qty 21300Platinum1300 W Platinum — CRPS v2.4, 230V/115V (1000W at 115V), min qty 21300Platinum1300 W Platinum — HVAC/HVDC CRPS Premium, 200-277V AC / 240-380V DC, min qty 21300Platinum1300 W Titanium — CRPS Premium, 230V/115V (1000W at 115V), min qty 11300Titanium1300 W Titanium — CRPS v2.4, 230V/115V (1000W at 115V), min qty 21300Titanium2000 W Titanium — CRPS Premium, 230V only, min qty 22000TitaniumWatts · dashed line = output at 100–120 V low line
AC277 VAC / HVDC−48 V DC
07 — Questions

DL360 Gen10 vs SR630 V4, answered

Is the DL360 Gen10 or the SR630 V4 the faster server?

Neither document publishes benchmark results, so this page compares what they do state. The DL360 Gen10 lists 113 processors up to 28 cores at 205 W; the SR630 V4 lists 34 up to 144 cores at 350 W. Fully populated that is 56 cores against 288.

Which holds more memory?

The DL360 Gen10 has 24 DIMM slots and a stated ceiling of 3.0 TB. The SR630 V4 has 32 and 8 TB.

Which takes more drives?

DL360 Gen10: 10 bays across 14 documented layouts. SR630 V4: 16 across 14. Counts include rear and mid-chassis positions where the vendor documents them.

Can either take GPUs?

DL360 Gen10: up to 2 accelerators, 0 double-wide cards listed. SR630 V4: up to 3, 0 double-wide listed.

Do they share any processors?

No. The two documents list different processors, so a like-for-like processor build is not possible across these two.

Where these figures come from. DL360 Gen10: HPE ProLiant DL360 Gen10 Server QuickSpecs (a00008159enw, Version 74 — 18 May 2026) (HPE document). SR630 V4: Lenovo ThinkSystem SR630 V4 Server Product Guide (September 8, 2026 (created or updated)) (Lenovo document). Each claim on this page is derived from those documents, checked page by page on the two data sheets, and carries no pricing.
