vSAN · HCI

VMware vSAN Products

The complete VMware HCI storage portfolio — vSAN 8 ESA for converged HCI, vSAN Max for disaggregated petabyte-scale storage, and VMware Cloud Foundation for the complete private cloud SDDC.

← vSAN Overview|Get Licensing Quote

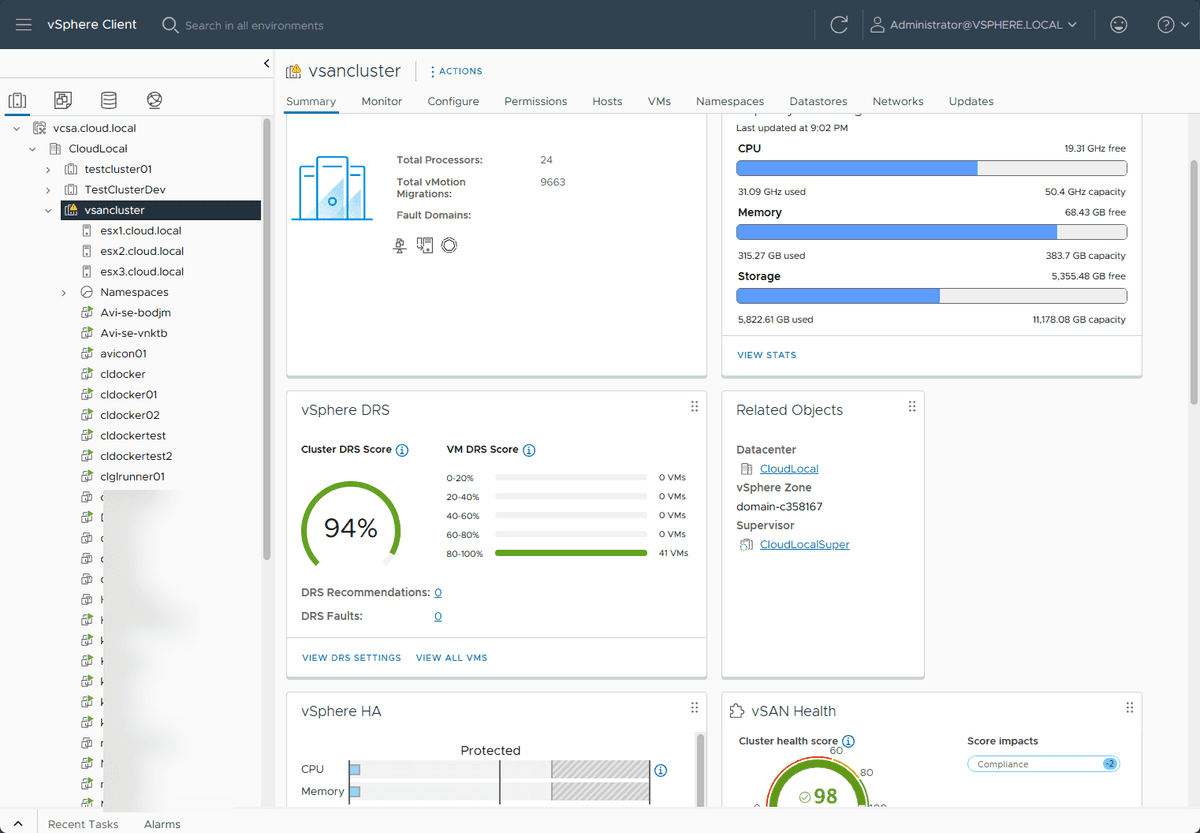

VMware vSAN 8 Express Storage Architecture management dashboard in vCenter

VMware by Broadcom

VMware vSAN (ESA)

VMware vSAN 8 Express Storage Architecture (ESA) — a ground-up redesign for NVMe TLC flash delivering up to 70% more usable capacity, 10× better mixed workload performance, and lower HCI TCO than the original architecture.

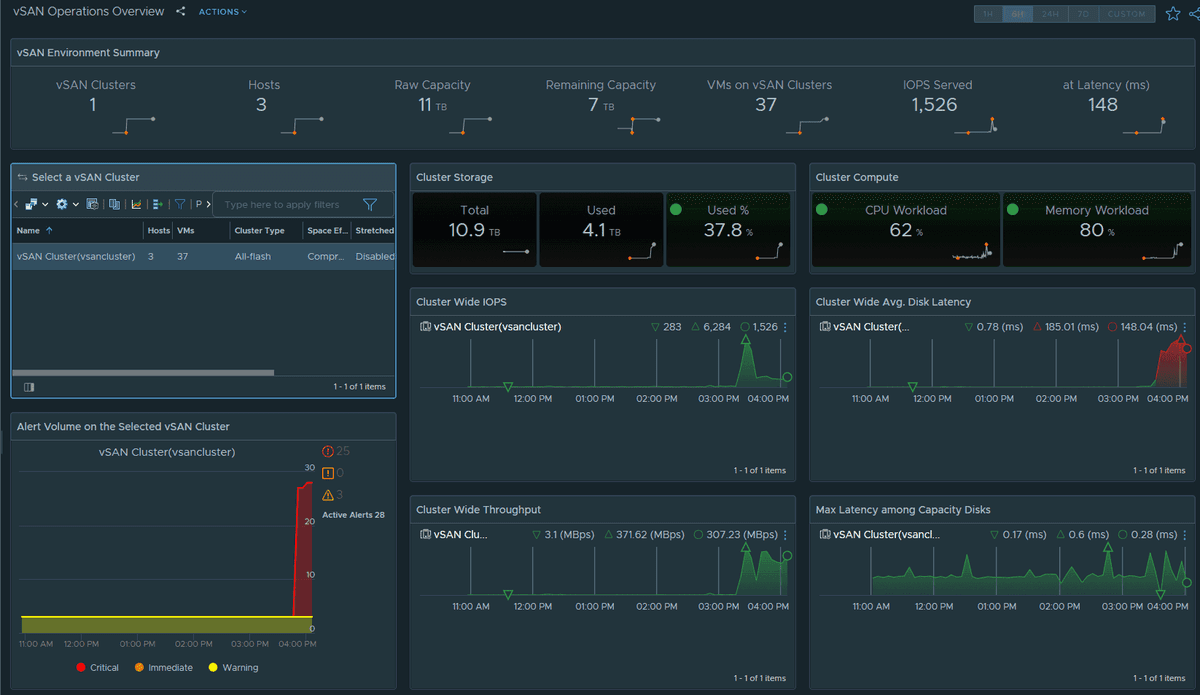

VMware vSAN Max

VMware vSAN Max disaggregates HCI storage from compute — dedicated NVMe storage clusters serve multiple vSphere compute clusters, scaling to 8.6 PB per storage cluster with over 3.6 million IOPS.

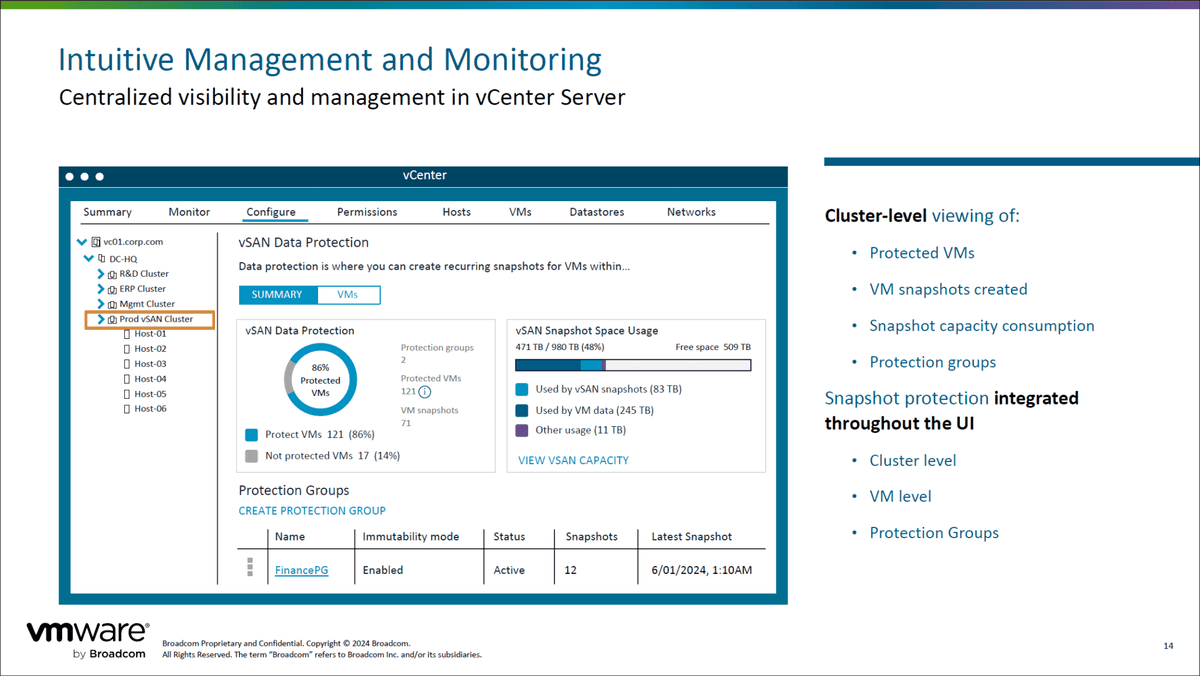

VMware Cloud Foundation

VMware Cloud Foundation (VCF) 9 bundles vSphere, vSAN, NSX, and Aria in a single per-core subscription — delivering a fully integrated private cloud SDDC with consistent operations from on-premises to hybrid cloud.

Product Comparison

Feature	vSAN 8 ESA	vSAN Max	VMware Cloud Foundation
Architecture	Converged HCI	Disaggregated HCI	Full SDDC (compute+storage+net)
Storage	ESA — NVMe single-tier	ESA — dedicated nodes	vSAN ESA included
Max Capacity	8.5 PB per cluster	8.6 PB per cluster	8.5 PB per cluster (vSAN)
Licensing	Per core (VCF/VVF)	Per TiB add-on	Per core (incl. 1 TiB/core)
Networking	Standard vSphere	Standard vSphere	NSX full-stack SDN included
Management	vCenter integrated	vCenter integrated	vCenter + SDDC Manager + Aria
Best For	General HCI workloads	Storage-heavy scale-out	Enterprise private cloud
ROI (IDC 2024)	365% 3-year ROI	365% 3-year ROI	365% 3-year ROI

Need Help with vSAN Licensing?

Servnet can help you navigate VCF core counts, vSAN capacity sizing, and ReadyNode hardware selection for your specific workload requirements.

Talk to an Expert
