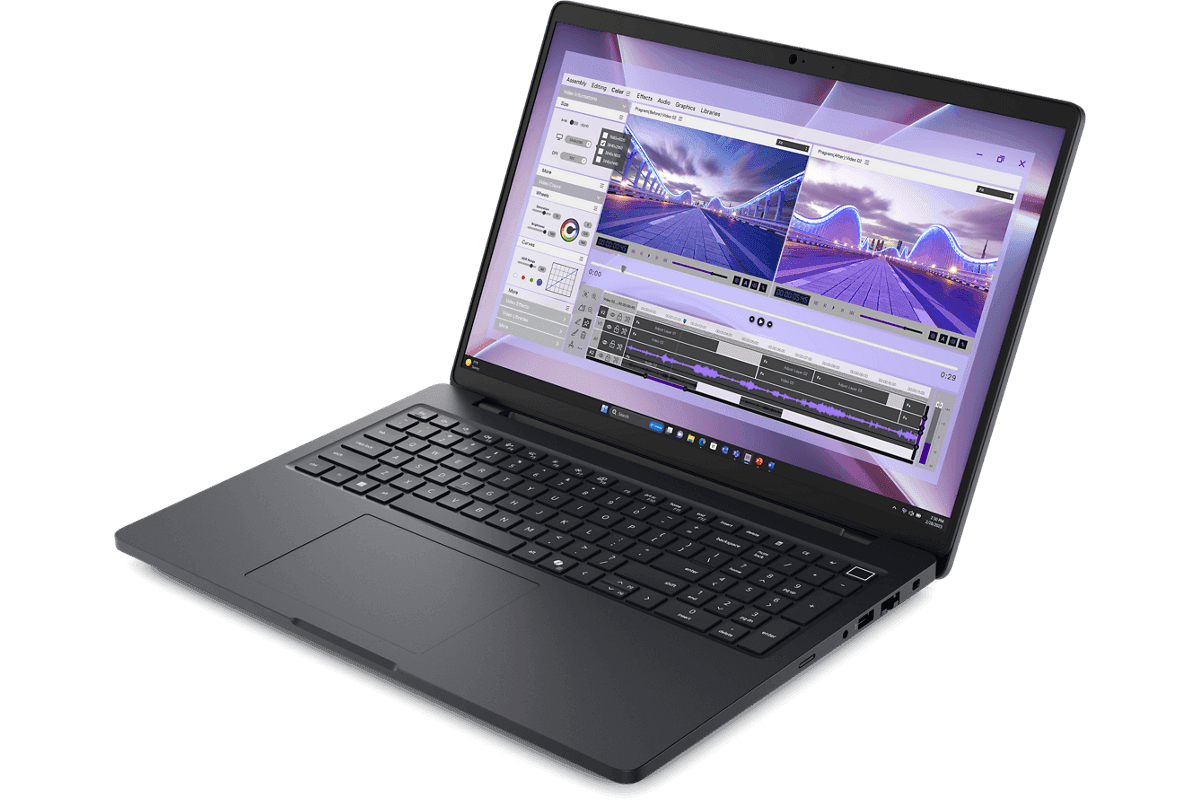

Dell Pro Max 16 (MC16250) 16-inch mobile workstation, three-quarter view

Dell MC16250

16 cores

Core Ultra 9 285H

RTX 2000

8 GB GDDR7 option

64 GB

DDR5, 2 slots

2.11 kg

Minimum weight

✅ Partner

📦 Free UK Delivery

🔒 Full Warranty

📞 UK Support

Key Specifications

Model	Dell Pro Max 16 (MC16250)
Class	Mobile workstation
Display	16.0" FHD+ (1920 × 1200) 60 Hz WVA, 45% NTSC, non-touch or touch; or QHD+ (2560 × 1600) 120 Hz WVA, 100% sRGB, ComfortView Plus — all anti-glare, 300 nits
Aspect ratio	16:10
Processor	Intel Core Ultra 5 235H vPro (14 cores) / Ultra 7 255H (16 cores) / Ultra 7 265H vPro (16 cores) / Ultra 9 285H vPro (16 cores, up to 5.40 GHz), 45 W
Graphics	Intel Graphics (integrated); NVIDIA RTX 500 4 GB, RTX 1000 6 GB or RTX 2000 8 GB GDDR7
Memory	Up to 64 GB DDR5 (2 slots): 16 / 32 GB SODIMM at 5600 MT/s or 32 / 64 GB CSODIMM at 6400 MT/s, dual-channel
Storage	Two M.2 PCIe Gen4 NVMe slots: 256 GB (2230) or 512 GB / 1 TB / 2 TB (2280, self-encrypting) drives, up to 4 TB total

+11 more specs below ↓

DellSKU: MC16250

Dell Pro Max 16 (MC16250) Mobile Workstation

16-inch Intel Core Ultra H mobile workstation with NVIDIA RTX options

Dell's 16-inch Pro Max mobile workstation (MC16250): Intel Core Ultra 5 235H to Core Ultra 9 285H processors, integrated Intel Graphics or NVIDIA RTX PRO 500 / 1000 / 2000 Blackwell (up to 8 GB GDDR7), two socketed DDR5 slots up to 64 GB and two M.2 SSD slots (up to 4 TB), from 2.10 kg.

16.0" 16:10 FHD+ (1920 × 1200) 60 Hz or QHD+ (2560 × 1600) 120 Hz WVA anti-glare, 300 nits
Intel Core Ultra 5 235H / Ultra 7 255H / Ultra 7 265H / Ultra 9 285H (up to 16 cores; vPro on 235H, 265H and 285H)
Intel Graphics or NVIDIA RTX PRO 500 (6 GB), RTX PRO 1000 (8 GB) or RTX PRO 2000 (8 GB) Blackwell, GDDR7
Up to 64 GB DDR5 across two slots (SODIMM at 5600 MT/s or CSODIMM at 6400 MT/s)
Two M.2 PCIe Gen4 NVMe SSD slots, drives up to 2 TB each (self-encrypting options)
2× Thunderbolt 4, HDMI 2.1, RJ-45 Gigabit Ethernet, microSD; 5G and smart-card reader options
64 Wh or 96 Wh battery, ExpressCharge capable

Get Pricing — Speak to Our Team

☎ 0800 987 4111 ✉ Email Us

Request a Quote

Competitive pricing · Response within 4 hours

Business enquiries only — please use your company email. Gmail, Hotmail and other personal addresses are not accepted.

Delivery country (optional)

We only ship hardware to the countries in the dropdown. Software and maintenance services are global.

We use these details to reply to your enquiry and prepare any quote. No marketing emails without your consent. Privacy Policy

Enquiring about: Dell Pro Max 16

Full Name *

Email *

Company

Quantity Required

Additional Notes

Response within 4 business hours · No obligation

Key Features

Everything you need in one device

⚙️

Intel Core Ultra H-series

Core Ultra 5 235H (14 cores) or Core Ultra 7 255H / 265H and Core Ultra 9 285H (16 cores, up to 5.40 GHz), all 45 W. The 235H, 265H and 285H are vPro processors for out-of-band fleet management.

🟢

NVIDIA RTX options

Integrated Intel Graphics, or discrete NVIDIA RTX 500 (4 GB GDDR7), RTX 1000 (6 GB GDDR7) or RTX 2000 (8 GB GDDR7) for CAD, visualisation and GPU-accelerated creative applications.

🧠

Socketed DDR5 memory

Two memory slots take 16 GB or 32 GB DDR5-5600 SODIMM kits, or 32 GB and 64 GB DDR5-6400 CSODIMM kits, so memory is specified to the role rather than soldered.

💾

Self-encrypting NVMe

Two M.2 PCIe Gen4 NVMe SSD slots taking drives from 256 GB up to 2 TB, with self-encrypting drives on the 512 GB and larger options.

🖥️

16-inch 16:10 display

FHD+ 1920 × 1200 at 60 Hz (touch or non-touch) or QHD+ 2560 × 1600 at 120 Hz with 100% sRGB and ComfortView Plus. All panels are anti-glare WVA at 300 nits.

🔌

Full business I/O

Two Thunderbolt 4 (40 Gbps) ports with Power Delivery and DisplayPort, two USB 3.2 Gen 1 ports, HDMI 2.1, RJ-45 Gigabit Ethernet, microSD and a headset jack, plus an optional smart-card reader.

📡

Wi-Fi 7 and 5G options

Intel Wi-Fi 6E AX211 or Wi-Fi 7 BE201 wireless, and an optional 5G module (MediaTek T700, DW5933e) with eSIM support.

About the Dell Pro Max 16

The Dell Pro Max 16 (MC16250) is the 16-inch model in Dell's Pro Max mobile workstation range. It is built around 45 W Intel Core Ultra H-series processors, from the 14-core Core Ultra 5 235H to the 16-core Core Ultra 9 285H, with vPro on the 235H, 265H and 285H for managed fleets.

Graphics are either integrated Intel Graphics or a discrete NVIDIA RTX PRO 500 (6 GB), RTX PRO 1000 (8 GB) or RTX PRO 2000 (8 GB) Blackwell, all with GDDR7 memory. System memory is socketed across two slots, from 16 GB DDR5-5600 up to 64 GB DDR5-6400 CSODIMM, and storage is a single M.2 PCIe Gen4 NVMe SSD of up to 2 TB.

The 16-inch 16:10 panel comes as FHD+ (1920 × 1200) at 60 Hz, with a touch option, or QHD+ (2560 × 1600) at 120 Hz with 100% sRGB; every option is a 300-nit anti-glare WVA panel. Ports cover two Thunderbolt 4, two USB 3.2 Gen 1, HDMI 2.1, RJ-45 Gigabit Ethernet and microSD, with 5G and a smart-card reader to order. Batteries are 64 Wh or 96 Wh, and minimum weight is 2.11 kg.

For UK customers the Pro Max 16 suits engineering, CAD and visualisation users who want discrete NVIDIA graphics and serviceable memory on a Windows 11 Pro or Ubuntu fleet. Servnet quotes it with Dell ProSupport options and Accidental Damage Protection.

Technical Specifications

Model	Dell Pro Max 16 (MC16250)
Class	Mobile workstation
Display	16.0" FHD+ (1920 × 1200) 60 Hz WVA, 45% NTSC, non-touch or touch; or QHD+ (2560 × 1600) 120 Hz WVA, 100% sRGB, ComfortView Plus — all anti-glare, 300 nits
Aspect ratio	16:10
Processor	Intel Core Ultra 5 235H vPro (14 cores) / Ultra 7 255H (16 cores) / Ultra 7 265H vPro (16 cores) / Ultra 9 285H vPro (16 cores, up to 5.40 GHz), 45 W
Graphics	Intel Graphics (integrated); NVIDIA RTX 500 4 GB, RTX 1000 6 GB or RTX 2000 8 GB GDDR7
Memory	Up to 64 GB DDR5 (2 slots): 16 / 32 GB SODIMM at 5600 MT/s or 32 / 64 GB CSODIMM at 6400 MT/s, dual-channel
Storage	Two M.2 PCIe Gen4 NVMe slots: 256 GB (2230) or 512 GB / 1 TB / 2 TB (2280, self-encrypting) drives, up to 4 TB total
Ports	2× Thunderbolt 4 (40 Gbps, PD, DisplayPort), 1× USB 3.2 Gen 1 with PowerShare, 1× USB 3.2 Gen 1, HDMI 2.1, RJ-45 1 GbE, global headset jack
Slots	microSD card, wedge-shaped lock slot; nano-SIM and smart-card reader optional
Wireless	Intel Wi-Fi 6E AX211 + Bluetooth 5.3, or Intel Wi-Fi 7 BE201 + Bluetooth 5.4
WWAN option	5G — MediaTek T700 (DW5933e), eSIM capable
Camera	1080p FHD+ RGB HDR (IR optional); 8 MP HDR + IR option
Battery	4-cell 64 Wh or 6-cell 96 Wh, ExpressCharge capable
Dimensions	358.0 × 256.0 mm; 15.08 mm front / 19.08 mm rear / 25.60 mm peak
Weight	From 2.10 kg (4.65 lb)
Security	TPM 2.0
OS options	Windows 11 Pro, Windows 11 Home, Ubuntu Linux 22.04 LTS
Warranty	1- to 5-year Dell hardware warranty or ProSupport options; Accidental Damage Protection available

Use Cases

Ideal for a wide range of deployments

🏗️

CAD / BIM

SolidWorks, Revit and AutoCAD on NVIDIA RTX 1000 or RTX 2000 graphics with up to 64 GB of socketed DDR5.

🎬

Creative and visualisation

GPU-accelerated editing and rendering on RTX graphics, with a 120 Hz QHD+ 100% sRGB panel option.

🏢

Managed engineering fleets

vPro processors, TPM 2.0, RJ-45 Ethernet and optional smart-card reader and 5G for IT-managed deployments.

FAQ

Frequently Asked Questions

Q. Which processors does the Dell Pro Max 16 (MC16250) use?

Dell lists the 45 W Intel Core Ultra 5 235H (14 cores), Core Ultra 7 255H, Core Ultra 7 265H and Core Ultra 9 285H (16 cores each). The 235H, 265H and 285H are vPro processors; the 255H is not.

Q. What graphics options are there?

Integrated Intel Graphics, or a discrete NVIDIA RTX 500 (4 GB GDDR7), RTX 1000 (6 GB GDDR7) or RTX 2000 (8 GB GDDR7).

Q. Can the memory and storage be upgraded?

Memory sits in two slots — 16 GB or 32 GB DDR5-5600 SODIMM kits, or 32 GB and 64 GB DDR5-6400 CSODIMM kits — for a 64 GB maximum. Storage uses two M.2 PCIe Gen4 NVMe slots, with drives of up to 2 TB each.

Q. What ports does it have?

Two Thunderbolt 4 (40 Gbps) ports with Power Delivery and DisplayPort, two USB 3.2 Gen 1 ports (one with PowerShare), HDMI 2.1, RJ-45 Gigabit Ethernet, a microSD slot and a headset jack. A smart-card reader and 5G with a nano-SIM slot are optional.

Q. Is it really worth 5-year ProSupport Plus?

For engineering fleets, yes — the cost per year is small relative to the device, and Accidental Damage Protection covers liquid / drop / electrical scenarios that aren't covered by standard warranty. Most Servnet workstation quotes opt for the 5-year tier.
