Intel Xeon E-2400 Series
Single-socket platform supporting Intel Xeon E-2400 processors up to 8 cores and 95W TDP, including E-2488 (3.2 GHz), E-2478 (2.8 GHz), and Pentium Gold G7900 for entry-tier deployments.
UK’s trusted IT infrastructure partner since 2003
1U Rack
Compact form factor
8 Cores
Max (Intel Xeon E-2488)
128 GB
Max DDR5 memory
Gen5 PCIe
I/O bandwidth
✅ Authorised Reseller
📦 Free UK Delivery
🔒 Full Warranty
📞 24/7 Support
Download Official Datasheet
PDF · Official manufacturer document
HPE ProLiantSKU: DL20-Gen11

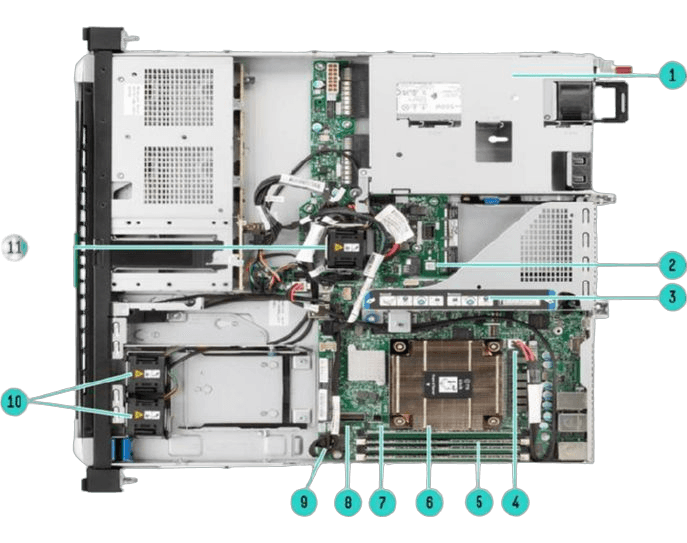

HPE ProLiant DL20 Gen11 1U Entry Rack Server
Compact 1U Entry Rack Server — Intel Xeon E-2400, DDR5, PCIe Gen5
The HPE ProLiant DL20 Gen11 is HPE's compact 1U, single-socket entry rack server powered by Intel Xeon E-2400 series processors. With DDR5 memory up to 128 GB, PCIe Gen5, and HPE iLO 6 management, it delivers a versatile foundation for edge computing, branch office deployments, and SME environments.
- 1U compact rack form factor, single socket
- Intel Xeon E-2400 series — up to 8 cores (E-2488, 3.2 GHz)
- DDR5 memory — up to 128 GB at 4800 MT/s
- PCIe Gen5 support — future-ready I/O
- HPE iLO 6 — embedded management & remote access
- 4 SFF or 2 LFF hot-plug storage configurations
- HPE 1000W Flex Slot Titanium hot-plug power supply
- HPE NS204i-u NVMe hot-plug boot storage device
Get Pricing — Speak to Our Team
Request a Quote
Competitive pricing · Response within 4 hours
Key Features
Everything you need in one device
🧠
DDR5 at 4800 MT/s
Supports DDR5 Smart Memory up to 128 GB maximum capacity at 4800 MT/s — delivering improved bandwidth over DDR4 in a dense 1U form factor.
💾
Flexible Storage Options
4 SFF or 2 LFF hot-plug drive configurations supporting SAS, SATA, and NVMe. Optional HPE NS204i-u NVMe hot-plug boot storage device for OS redundancy.
🔌
PCIe Gen5 Ready
PCIe Gen5 slots provide high-bandwidth I/O for future NIC, storage, and accelerator cards — preserving investment as connectivity standards evolve.
🛡️
HPE iLO 6 Management
Embedded HPE Integrated Lights-Out 6 (iLO 6) provides secure out-of-band management, remote console, health monitoring, and automated alerting.
⚡
Titanium Power Efficiency
HPE 1000W Flex Slot Titanium hot-plug power supply provides up to 96% efficiency, with support for 1+1 redundant power for higher availability configurations.
About the HPE ProLiant DL20 Gen11
The HPE ProLiant DL20 Gen11 is HPE's densest and most affordable entry rack server, designed specifically for workloads where space and budget are constrained. In a compact 1U chassis, it accommodates Intel Xeon E-2400 series processors, DDR5 memory, PCIe Gen5, and HPE iLO 6 remote management — providing a capable, manageable platform for branch offices, edge deployments, and SME environments.
Processor options span from the Pentium Gold G7900 for light workloads to the Intel Xeon E-2488 (8 cores, 3.2 GHz, 95W) for more demanding applications. All E-2400 series processors support DDR5 memory at up to 4800 MT/s, delivering a bandwidth improvement over previous DDR4-based platforms and enabling more responsive virtualisation and database workloads within the entry-tier segment.
Storage flexibility is handled through 4 SFF or 2 LFF hot-plug drive bay configurations, supporting SAS, SATA, and NVMe drives. The optional HPE NS204i-u NVMe hot-plug boot storage device provides a dedicated OS boot device, freeing primary storage bays for data. Combined with HPE Gen11 storage controllers and Intel VROC support, the DL20 Gen11 provides solid data protection for even entry-level deployments.
Technical Specifications
📄 Download Datasheet (PDF)Use Cases
Ideal for a wide range of deployments
🏢
Branch Office Server
Deploy a manageable, space-efficient server at branch locations — running file sharing, print services, and local authentication without a full rack footprint.
🔗
Edge Computing
Run edge workloads such as IoT data aggregation, local analytics, and machine inference at remote sites with limited space and cooling capacity.
💼
SME Business Server
An ideal entry server for small and medium businesses — affordable, reliable, and manageable with HPE iLO 6 even without on-site IT staff.
🖥️
Dedicated Application Host
Host a single business application — ERP, CRM, or communication platform — on dedicated hardware without virtualisation overhead.
