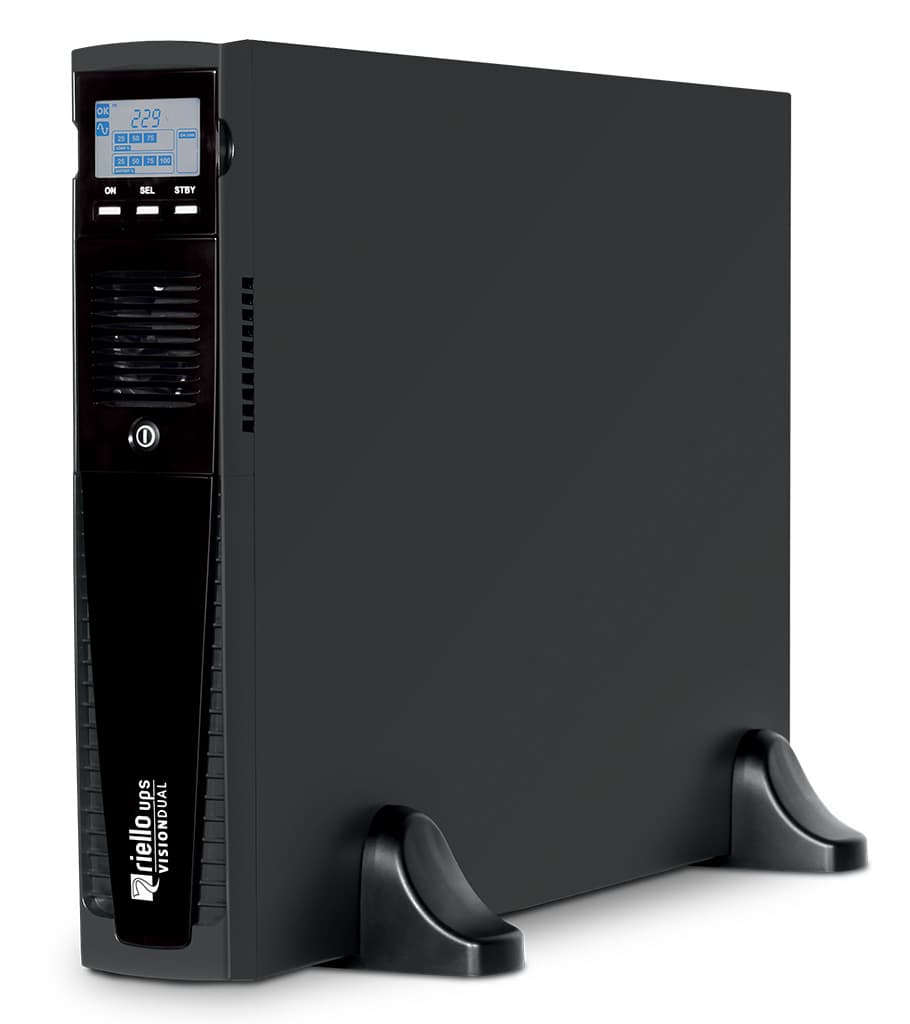

Riello Vision Dual VSD tower line interactive UPS unit
Riello VSD-3000
3kVA Max Power
3000VA / 2700W line interactive
AVR Voltage Reg.
Boost and trim without battery
0.9 Output PF
2700W at 3000VA rating
Hot Swap Battery
Replace without power down
5yr Warranty
Optional extended warranty
Sine Wave Output
Pure sine wave on battery
Authorised Reseller
📦 Free UK Delivery
🔒 Full Warranty
📞 24/7 Support
Key Specifications
TopologyLine Interactive with AVR
Power Range1100VA, 1500VA, 2000VA, 3000VA
Output Power Factor0.9 (2700W at 3000VA)
Output WaveformPure sine wave
Input Voltage230V AC, 50Hz; wide input range with AVR
Battery TypeVRLA sealed lead-acid; hot-swap front accessible
CommunicationUSB, RS-232, dry contact relay outputs
SoftwareRiello MultiPower — Windows, Linux, VMware, Hyper-V
+2 more specs below ↓
📄
Download Official Datasheet
PDF · Official manufacturer document
RielloSKU: VSD-3000

Riello Vision Dual (VSD) Line Interactive UPS — 1.1–3 kVA

Reliable. Compact. Line Interactive. 1.1–3 kVA.

The Riello Vision Dual (VSD) is a high-quality line-interactive pure sine wave UPS covering 1100VA to 3000VA in compact tower and rack formats — with Automatic Voltage Regulation, hot-swap batteries, 0.9 output power factor, and optional 5-year warranty.

  • 1100VA, 1500VA, 2000VA, and 3000VA models — tower and rack formats
  • Line interactive with pure sine wave output and Automatic Voltage Regulation
  • Output power factor 0.9 — 2700W at 3kVA
  • Hot-swap front-accessible batteries — replace without UPS shutdown
  • USB, RS-232, and dry contact communication ports standard
  • 5-year extended warranty option available
  • Compatible with Riello MultiPower shutdown software for Windows, Linux, VMware

Get Pricing — Speak to Our Team

Request a Quote

Competitive pricing · Response within 4 hours

Enquiring about: Riello Vision Dual

Response within 4 business hours · No obligation

Key Features

Everything you need in one device

Line Interactive + AVR

Vision Dual uses line interactive topology with Automatic Voltage Regulation — correcting input voltage brownouts and over-voltages without drawing from battery. Preserves battery capacity for genuine power failure events and extends battery lifespan.

🔋

Hot-Swap Batteries

Front-accessible batteries can be replaced without shutting down the UPS — keeping connected equipment protected throughout battery maintenance. Tool-free replacement in minutes.

🔌

Pure Sine Wave Output

Vision Dual outputs pure sine wave on battery — compatible with all modern servers, storage, and network equipment with active PFC power supplies. Avoids damage risk from simulated sine wave output.

💻

MultiPower Shutdown Software

Riello MultiPower software provides graceful shutdown of Windows and Linux servers, and VMware vSphere VM shutdown and vMotion before host shutdown on power failure. Included via USB or RS-232.

📊

LED Status Display

Front-panel LED indicators show AC power present, UPS on battery, battery charge level, load level, and fault conditions — providing immediate visual status without software or network.

🛡️

5-Year Warranty Option

Vision Dual is available with optional 5-year warranty covering both UPS electronics and battery — aligning protection period with server hardware lifecycle.

About the Riello Vision Dual

The Riello Vision Dual (VSD) is Riello's line-interactive UPS in the 1.1–3kVA range, designed for office server rooms, network cabinets, and SME IT infrastructure. Available in 1100VA, 1500VA, 2000VA, and 3000VA in both tower and rackmount formats, the Vision Dual covers the most common single-phase UPS requirements without the additional cost of full online double-conversion.

Pure sine wave output on battery is a critical specification — the Vision Dual's AVR corrects voltage fluctuations without battery consumption, and when the UPS switches to battery the pure sine wave output ensures compatibility with all modern hardware. Hot-swap front-accessible batteries simplify maintenance, and Riello MultiPower software provides graceful shutdown integration for common server and virtualisation platforms.

The optional 5-year warranty covering both UPS and battery aligns protection with typical server refresh cycles — a single procurement decision covering the full equipment lifecycle. Riello's manufacturing quality and strong European support network make Vision Dual a reliable alternative to APC Smart-UPS in the 1–3kVA line interactive segment.

Technical Specifications

TopologyLine Interactive with AVR
Power Range1100VA, 1500VA, 2000VA, 3000VA
Output Power Factor0.9 (2700W at 3000VA)
Output WaveformPure sine wave
Input Voltage230V AC, 50Hz; wide input range with AVR
Battery TypeVRLA sealed lead-acid; hot-swap front accessible
CommunicationUSB, RS-232, dry contact relay outputs
SoftwareRiello MultiPower — Windows, Linux, VMware, Hyper-V
OptionalNetMan 208 SNMP card; 5-year extended warranty
Warranty2 years standard; 5 years optional
📄 Download Datasheet (PDF)
Use Cases

Ideal for a wide range of deployments

🖥️

SME Server Rooms

Vision Dual covers the 1–3kVA range most commonly needed by SME server rooms — providing line interactive protection for 1–4 rack servers, NAS, switches, and VoIP infrastructure.

🏢

Office Network Cabinets

Tower VSD models protect network cabinets housing Cisco, Fortinet, or Juniper switches and routers — AVR corrects brownouts without battery use and pure sine wave output protects on battery.

🏥

Clinical Workstation Protection

Vision Dual protects clinical workstations, nurse call systems, and ward-level networking where power continuity is patient safety critical.

📸

Surveillance & Security Systems

NVR recorders, IP camera switches, and access control systems are protected by Vision Dual — tower form factor and hot-swap batteries suit CCTV room and security cabinet installations.

FAQ

Frequently Asked Questions

Q. Is the Vision Dual available in rack format?

The Vision Dual is available in dedicated rack models as well as tower configuration. Rack models mount in standard 19-inch racks in 2U.

Q. What shutdown software is included?

Riello MultiPower software is provided, supporting graceful shutdown of Windows Server, Linux, VMware vSphere, and Microsoft Hyper-V systems via USB or RS-232 connection.

Why Servnet

Why buy from Servnet?

Trusted UK IT reseller since 2003 — supplying businesses of all sizes with genuine, competitively priced technology.

🏆

Authorised UK Reseller

Servnet is an authorised IT reseller with direct access to leading product lines at competitive pricing.

💬

Expert Pre-Sales Advice

Our engineers will help you select the right product and advise on compatibility with your existing infrastructure.

🚚

Fast UK Delivery

Most products ship from UK stock. Express delivery available for urgent deployments.

🔒

Genuine, Warranted Kit

All products are genuine, brand-new, with full manufacturer warranty and RMA support.

📋

Configuration Services

We can pre-configure your hardware before shipping — reducing on-site deployment time and cost.

📞

24/7 Support

Post-sale support from our certified engineers. We're here if anything goes wrong.

Related Products

Riello Sentinel Dual SDH 3kVA online UPS rack/tower unit
Riello

Riello Sentinel Dual SDH

Italian Engineering. Pure Online Protection. 1–3 kVA.

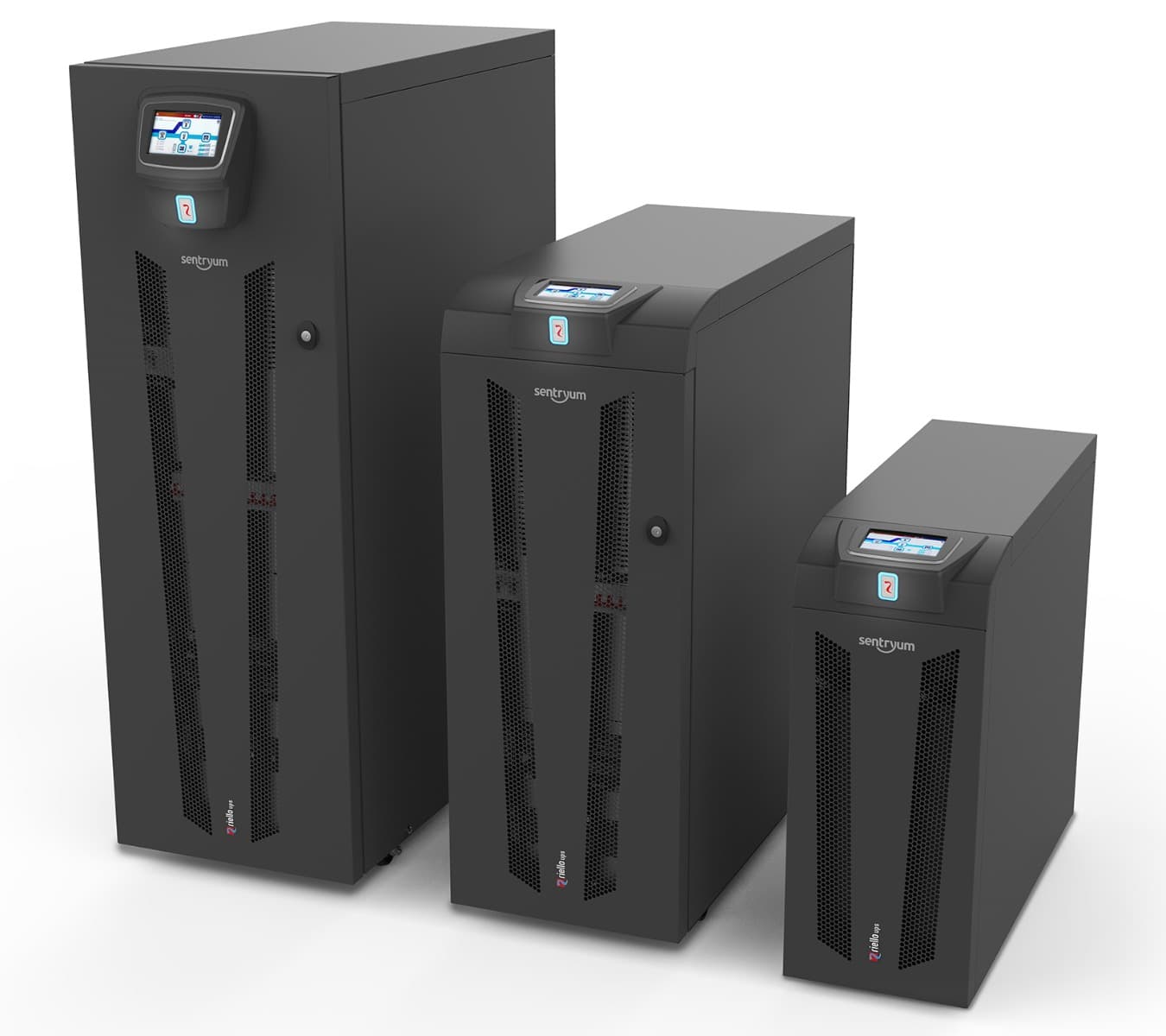

Riello Sentryum 3-phase online UPS data centre cabinet 60kVA
