Vertiv Avocent Products UK

Authorised UK reseller. HMX 8000 4K KVM, MPU8032 32-port digital switch, and ACS8000 serial console server — unified under DSView management with FIPS encryption.

Which Product Do You Need?

Three Avocent products covering KVM video, switching, and out-of-band console access.

📺

4K Workstation KVM

→ HMX 8000

Trading floors, medical imaging, broadcast control, 4K workstation environments needing lossless video quality

🔢

Enterprise KVM Switch

→ MPU8032

Data centre server KVM access — 32 servers, 4 concurrent users, dual-redundant power, TAA compliance

📡

Out-of-Band Console

→ ACS8000

Serial console access to servers, switches, routers — with 4G LTE backup for when the network itself fails

4K · 10Gbps Fiber · Zero-U

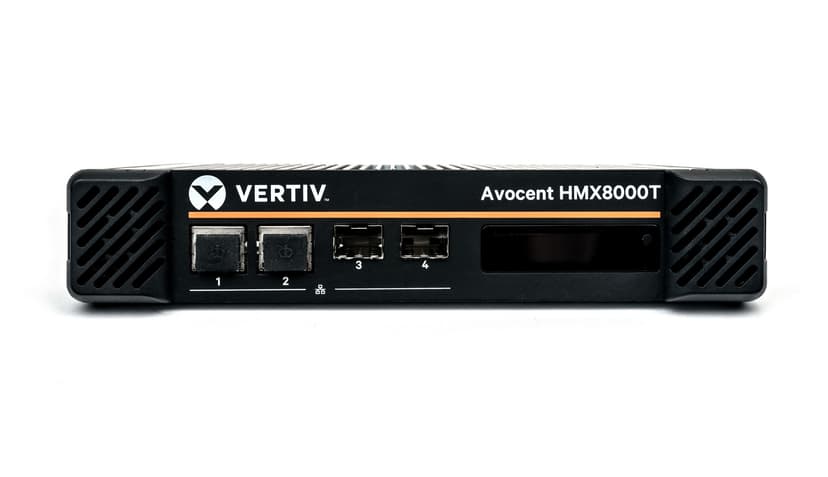

Avocent HMX 8000

High-Performance 4K IP KVM Extender

Pixel-perfect 4K IP KVM over 10Gbps fiber. Zero-U transmitters attach to server rear panels without consuming rack space. Multicast enables one-to-many viewing for control rooms and trading floors.

Resolution4K (3840×2160) via 10Gbps fiber

TransmitterZero-U — no rack space consumed

Video InputsVGA · DVI-D · DisplayPort

USB SupportUSB 2.0 peripherals

SwitchingUnder 1 second target switch

MulticastYes — one-to-many

RedundancyFull — automatic failover

ManagementHMX Advanced Manager + AD

True 4K@30fps over 10Gbps fiber
Zero-U server transmitters
Multicast — one server to many
Sub-second switching
Full redundant failover

View Full Details →

Enterprise · 32-Port · TAA

Avocent MPU8032

MergePoint Unity 32-Port Digital KVM

MergePoint Unity 32-port digital KVM with dual redundant AC power and TAA compliance. Four concurrent remote users, DSView management, and integration with Avocent ACS8000 serial console servers.

Server Ports32

Digital Users4 simultaneous paths

Local User1 local port

PowerDual redundant AC (hot-swap)

ComplianceTAA compliant

IQ ModulesUSB+HDMI · USB+DVI · USB+VGA

NetworkGigabit; IPv4 + IPv6

ManagementDSView software; SNMP; web UI

32 server ports, 1U chassis
Dual hot-swap AC power supplies
TAA compliant
HDMI/DVI/VGA IQ modules
DSView centralised management

View Full Details →

Serial Console · FIPS · 4G LTE

Avocent ACS8000

Advanced Out-of-Band Serial Console Server

FIPS 140-2 serial console server with 4G LTE cellular out-of-band access. Manage 8–48 serial devices from anywhere. When the production network fails, cellular keeps console access alive.

Serial Ports8, 16, 32, or 48 RJ-45

USB Ports8 USB console ports

ProcessorDual-core ARM

EncryptionFIPS 140-2; TLS 1.3; AES-256

Cellular4G LTE — WAN + auto failover

VPNIPsec with NAT traversal

ProvisioningZero Touch Provisioning

ManagementDSView; SSH; REST API; SNMP v3

FIPS 140-2 standard (not add-on)
4G LTE cellular out-of-band
Zero Touch Provisioning
TLS 1.3 + IPsec VPN
8–48 serial console ports

View Full Details →

Compare Vertiv Avocent Products

All products managed through Avocent DSView — unified access, LDAP/AD authentication, session logging, and audit trail.

Feature	Avocent HMX 8000	Avocent MPU8032	Avocent ACS8000
Primary Use	4K video KVM extender	Multi-server KVM switch	Serial console OOB access
Port Count	Per transmitter (1:1)	32 server ports	8–48 serial ports
Remote Users	Multiple via multicast	4 digital paths	Unlimited SSH/web
Max Resolution	4K@30fps (10Gbps)	HD (1080p)	N/A — serial console
FIPS 140-2	—	—	✓ Standard
4G LTE Cellular	—	—	✓ Built-in
Dual PSU	Redundant failover	✓ Dual AC hot-swap	Single or dual
Zero-U Option	✓ Transmitters	—	—
TAA Compliant	—	✓	—
Zero Touch Prov.	—	—	✓
DSView Managed	✓ HMX Adv. Manager	✓	✓
Best For	4K workstations · trading · medical	Enterprise data centre KVM	Out-of-band · remote sites · serial

Ready to Quote?

Servnet supplies Vertiv Avocent HMX, MPU, and ACS8000 products with UK-based procurement support.
