Modular Network Cards
Field-replaceable network interface modules allow the FPR4100 to be configured with 1G, 10G, 25G, 40G, or 100G interfaces to match current and future network speeds.
UK’s trusted IT infrastructure partner since 2003
80 Gbps
FTD (FPR4150)
100G
QSFP28 interfaces
55M
Sessions (FPR4150)
×16
Chassis clustering
✅ Authorised Reseller
📦 Free UK Delivery
🔒 Full Warranty
📞 24/7 Support
Download Official Datasheet
PDF · Official manufacturer document
CiscoSKU: FPR4110 / FPR4115 / FPR4145 / FPR4150

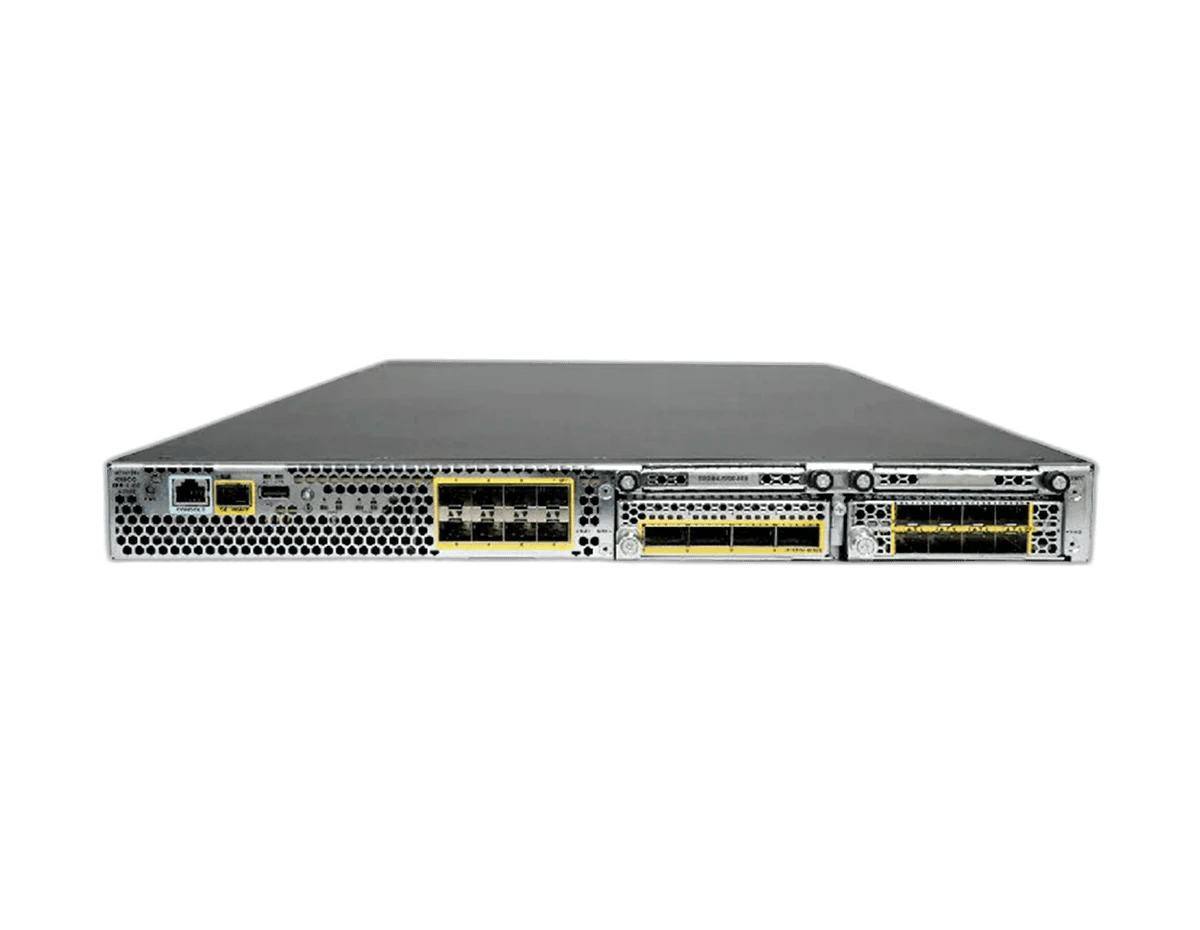

Cisco Firepower 4100 Series NGFW Appliance (FPR4110 / FPR4115 / FPR4145 / FPR4150)
Modular High-Performance NGFW — From 20 to 80 Gbps FTD
The Cisco Firepower 4100 Series spans four models (4110–4150) delivering 20 to 80 Gbps FTD throughput with modular network cards, 100G QSFP28 interfaces, and carrier-grade session capacity.
- FPR4110: 20 Gbps FTD / FPR4115: 30 Gbps / FPR4145: 60 Gbps / FPR4150: 80 Gbps
- Modular network interface cards (up to 8 × 100G QSFP28 on higher models)
- 1/2U chassis with field-replaceable NIC modules
- Up to 55M concurrent sessions (FPR4150)
- Scalable VPN — up to 20,000 peers across all models
- Runs Cisco FTD, ASA, or Firepower Threat Defense for IPS
- Clusterable — up to 16 chassis for massively scaled deployments
Get Pricing — Speak to Our Team
Request a Quote
Competitive pricing · Response within 4 hours
Key Features
Everything you need in one device
⚡
Up to 80 Gbps FTD
The FPR4150 tops the series at 80 Gbps FTD throughput with full NGIPS, AVC, URL filtering, and AMP simultaneously — suitable for the most demanding environments.
🔗
16-Chassis Clustering
Cisco's proprietary clustering technology allows up to 16 FPR4100 chassis to be combined into a single logical firewall — delivering Tbps-class throughput with shared state.
📊
Up to 55M Sessions
FPR4150's 55 million concurrent sessions handle carrier-grade traffic loads and the largest enterprise or service provider data centres.
🛡️
Full FTD or ASA Stack
All FPR4100 models run either Cisco FTD or ASA software — supporting full NGIPS, AVC, AMP, URL filtering, and Cisco Talos intelligence.
🔋
Redundant Power + Fans
Hot-swappable power supplies and fan trays with full N+1 redundancy — appropriate for mission-critical carrier and enterprise data centre deployments.
🏗️
Multi-Instance Support
FPR4100 supports multi-instance deployments — running multiple independent FTD instances on a single chassis for segmented security policy or managed service provider use.
About the Cisco Firepower 4110 / 4115 / 4145 / 4150
The Cisco Firepower 4100 Series is a family of high-performance, modular next-generation firewall appliances spanning four models: FPR4110 (20 Gbps FTD), FPR4115 (30 Gbps FTD), FPR4145 (60 Gbps FTD), and FPR4150 (80 Gbps FTD). These appliances are designed for large enterprise data centres, service provider internet gateways, and cloud provider peering edges that demand both high throughput and advanced security inspection.
The defining characteristic of the FPR4100 Series is its modular network interface card architecture. Unlike the fixed-interface 1000/2100/3100 Series, the FPR4100 accepts field-replaceable NIC modules that can be populated with 1G, 10G, 25G, 40G, or 100G QSFP28 interfaces — allowing the same chassis to adapt as network speeds evolve. This protects the hardware investment over multi-year refresh cycles.
All FPR4100 models support Cisco's chassis clustering technology, enabling up to 16 chassis to be grouped into a single logical firewall with distributed state — delivering terabit-class aggregate throughput for the largest deployments. Multi-instance mode is also supported, enabling a single physical chassis to run multiple isolated FTD instances — ideal for managed security service providers (MSSPs) or organisations with strict security zone segregation requirements.
Running Cisco FTD software, all FPR4100 models deliver the full Cisco security stack: NGIPS with Talos intelligence, application visibility and control, URL filtering, Advanced Malware Protection, Encrypted Traffic Analytics, and identity-aware policy via Cisco Identity Services Engine (ISE) integration. Centralised management is provided by Cisco Secure Firewall Management Center (FMC) or Cisco Defense Orchestrator (CDO) in the cloud.
Technical Specifications
📄 Download Datasheet (PDF)Use Cases
Ideal for a wide range of deployments
🏗️
Data Centre Security
60–80 Gbps FTD and 100G interfaces serve the largest enterprise and cloud data centre security requirements.
🌐
Service Provider Edge
55M sessions and 16-chassis clustering accommodate carrier-scale internet gateway and peering deployments.
🔐
MSSP Multi-Tenancy
Multi-instance mode enables MSSPs to run isolated per-customer FTD instances on shared hardware.
🔌
100G Connectivity
QSFP28 modules connect to 100G spine fabrics — enabling NGFW inspection at 100G without performance compromise.
