Intelligent Power Protection.
ABM Battery. Online to 500 kVA.

Advanced Battery Management — 50% Longer Battery Life

Eaton's ABM is a proven differentiator — by monitoring battery state and applying charge only when needed, ABM extends VRLA battery life by up to 50% compared to conventional float charging. For a typical server room UPS deployed for 5 years, ABM typically means one fewer battery replacement cycle.

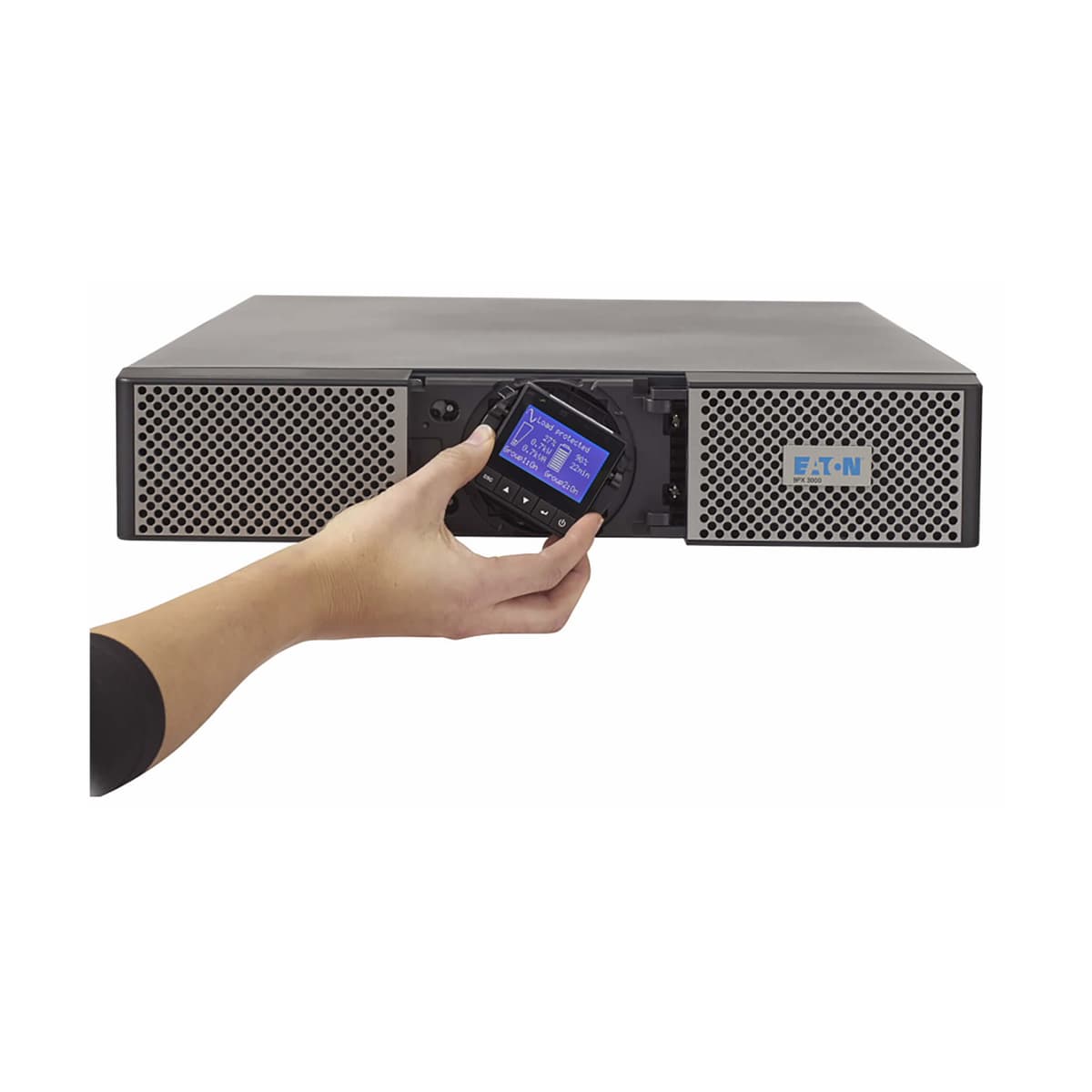

Eaton 9PX — Online. ABM. VMware Ready.

The Eaton 9PX combines true online double-conversion protection with ABM battery management and hot-swap batteries in a 2U rack/tower form factor. Available from 1500VA to 6000VA — the only online UPS that delivers +50% battery life advantage at zero transfer time.

• Online topology — 0ms transfer, complete mains isolation
• ABM 3-stage charging — +50% battery life
• Hot-swap batteries — no shutdown required
• VMware vSphere Ready certified
• Up to 4 Extended Battery Modules

ABM — Longest Battery Life

Eaton's ABM (Advanced Battery Management) 3-stage charging technology charges batteries only when needed — avoiding continuous float charging that degrades battery chemistry. ABM extends VRLA battery life by up to 50% compared to conventional UPS charging, reducing replacement frequency and total cost of ownership.

93PM Modular Hot-Swap Modules

The Eaton 93PM uses hot-swappable 50kW power modules — any module can be replaced while the UPS operates and the load is protected. No scheduled maintenance downtime, no load interruption. Combined with parallel frame redundancy, the 93PM offers two independent levels of redundancy.

99% Efficiency — ESS Mode

The 93PM achieves 99% efficiency in Energy Saver System mode, and 97% in full online double-conversion. At data centre scale, the difference between 94% and 97% efficiency represents thousands of pounds saved per year in electricity costs and significant reductions in cooling load.

Intelligent Power Manager (IPM)

Eaton's IPM software provides centralised monitoring, management, and graceful shutdown for all Eaton UPS — integrating with VMware vSphere, Hyper-V, Linux, and Windows. IPM supports VM migration via vMotion before host shutdown and integrates with DCIM platforms including ServiceNow and Nagios.

NETWORK-M3 Gigabit NMC

The optional NETWORK-M3 Gigabit network management card provides SNMP v1/v2c/v3, Modbus TCP/IP, dual Ethernet ports, IPv6 support, and a built-in web interface. Compatible with all major NMS and DCIM platforms, and rated for integration with Eaton's full UPS product range.

VMware Ready Certified

Eaton 9PX and 93PM are VMware Ready certified — validated for integration with VMware vSphere and listed on the VMware Hardware Compatibility Guide. IPM provides vCenter-native UPS events and automated graceful shutdown of vSphere clusters on UPS low battery.

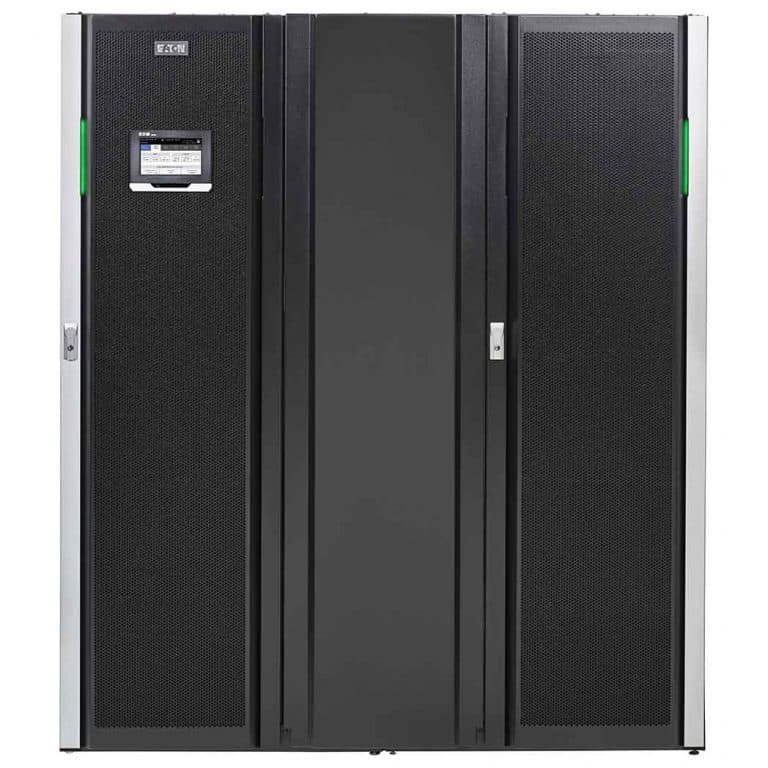

Eaton 93PM — Modular 3-Phase

The 93PM delivers 20–500 kVA of modular 3-phase online UPS with hot-swap 50kW modules and 97%/99% efficiency. Module-level and frame-level redundancy provide two independent layers of protection for the most demanding data centre requirements.

Intelligent Power Manager — One Platform for Everything

Eaton's IPM software provides centralised UPS monitoring, capacity management, and graceful shutdown across the entire Eaton UPS estate — from a single 5PX Gen2 to hundreds of 9PX and 93PM systems.

• Auto-discovery of all Eaton UPS on the network
• Graceful shutdown — VMware vSphere, Hyper-V, Linux, Windows
• vMotion triggering — migrate VMs before host shutdown
• Capacity reports — load, runtime, battery health trends
• Integrates with ServiceNow, Nagios, PRTG, Zabbix
• NETWORK-M3 NMC required for network-managed UPS
