UK’s trusted IT infrastructure partner since 2003
HPE ProLiant Rack Servers
7 ProLiant Gen11 & Gen12 servers — DL20, DL360, DL380, DL560, DL580. All specifications from official HPE datasheets.
Entry 1U — DL20 Gen11
HPE ProLiant Servers · DL20-Gen11
HPE ProLiant
HPE ProLiant DL20 Gen11
Compact 1U Entry Rack Server — Intel Xeon E-2400, DDR5, PCIe Gen5
Form Factor
1U rack-mountable
Processor
Intel Xeon E-2400 series (up to 8c/16T, 95W); Pentium Gold G7900
Max Processor Speed
Up to 3.6 GHz (E-2486)
Memory Type
DDR5 (ECC supported)
- ›1U compact rack form factor, single socket
- ›Intel Xeon E-2400 series — up to 8 cores (E-2488, 3.2 GHz)
- ›DDR5 memory — up to 128 GB at 4800 MT/s
- ›PCIe Gen5 support — future-ready I/O
1U Performance — DL360 Gen11 & Gen12
HPE ProLiant Servers · DL360-Gen11
HPE ProLiant
HPE ProLiant DL360 Gen11
1U 2-Socket Rack Server — 4th/5th Gen Xeon Scalable, DDR5 up to 8 TB, PCIe Gen5
Form Factor
1U rack-mountable, 2-socket (2P)
Processors Supported
4th Gen Intel Xeon Scalable (Sapphire Rapids) or 5th Gen (Emerald Rapids) — up to 64 cores, 5600 MT/s, 385W TDP
Memory Type
HPE DDR5 SmartMemory RDIMM
Memory Slots
32 DIMM slots (16 per processor, 8 channels per processor)
- ›1U 2-socket — highest density performance
- ›4th/5th Gen Intel Xeon Scalable — up to 64 cores per socket
- ›DDR5 SmartMemory — 32 DIMMs, up to 8 TB, 5600 MT/s
- ›PCIe Gen5 — up to 3 PCIe5 slots + 2 OCP 3.0
HPE ProLiant Servers · DL360-Gen12
HPE ProLiant
HPE ProLiant DL360 Gen12
Next-Gen 1U Rack Server — Intel Xeon 6 up to 144 Cores, DDR5 6400 MT/s, iLO 7
Form Factor
1U rack-mountable, 2-socket (2P)
Processors Supported
Intel Xeon 6 E-Core (up to 144c, 6780E 330W) and P-Core (up to 86c, 6787P 350W)
Memory Type
HPE DDR5 Smart Memory RDIMM
Memory Slots
32 DIMM slots (16 per processor)
- ›Intel Xeon 6 — up to 144 cores per socket (E-Core & P-Core)
- ›DDR5 up to 8 TB at 6400 MT/s (1DPC) — 32 DIMM slots
- ›Multi-purpose intelligent front cage — SFF, EDSFF, OCP NIC, OS Boot
- ›Full-speed x4 PCIe Gen5 — up to 3 slots + 2 OCP 3.0
2U Performance — DL380 Gen11 & Gen12
HPE ProLiant Servers · DL380-Gen11
HPE ProLiant

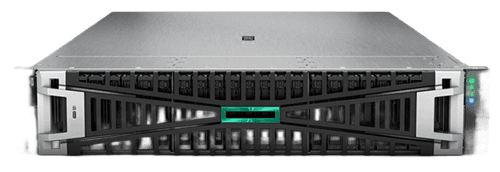

HPE ProLiant DL380 Gen11
2U 2-Socket Rack Server — 4th/5th Gen Xeon Scalable, DDR5 8 TB, Up to 8 GPUs
Form Factor
2U rack-mountable, 2-socket (2P)
Processors Supported
4th/5th Gen Intel Xeon Scalable — up to 64 cores, 5600 MT/s, 385W TDP max
Memory Type
HPE DDR5 SmartMemory RDIMM; HBM option
Memory Slots
32 DIMM slots (16 per processor, 8 channels per processor)
- ›2U 2-socket — optimal balance of density and expandability
- ›4th/5th Gen Intel Xeon Scalable — up to 64 cores per socket
- ›DDR5 SmartMemory — 32 DIMMs, up to 8 TB, 5600 MT/s
- ›GPU support — up to 8 single-wide or 3 double-wide accelerators
HPE ProLiant Servers · DL380-Gen12
HPE ProLiant

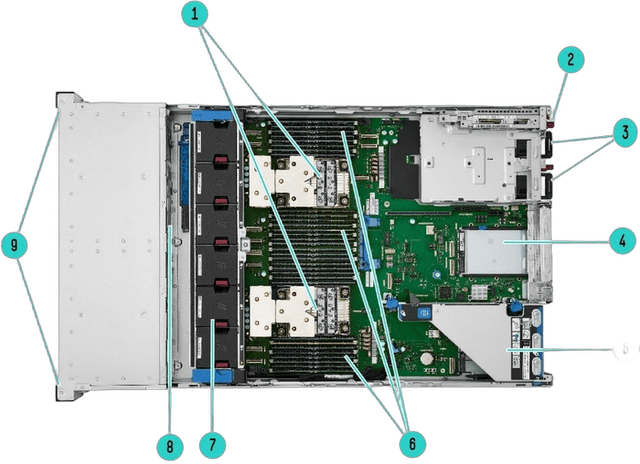

HPE ProLiant DL380 Gen12
Next-Gen 2U Rack Server — Intel Xeon 6 up to 144 Cores, 8 PCIe Gen5 Slots, iLO 7
Form Factor
2U rack-mountable, 2-socket (2P)
Processors Supported
Intel Xeon 6 E-Core (up to 144c, 6780E 330W) and P-Core (up to 86c, 6787P 350W)
Memory Type
HPE DDR5 Smart Memory RDIMM
Memory Slots
32 DIMM slots (16 per processor, 8 channels, 2 DIMMs per channel)
- ›Intel Xeon 6 — up to 144 cores per socket (E-Core & P-Core)
- ›DDR5 up to 8 TB at 6400 MT/s (1DPC) — 32 DIMM slots
- ›Up to 8 PCIe Gen5 slots + 2 OCP 3.0 (primary, secondary, tertiary risers)
- ›Storage: 8SFF/24SFF, 8LFF/12LFF, 12/36 EDSFF E3.S configurations
4-Socket Enterprise — DL560 Gen11 & DL580 Gen12
HPE ProLiant Servers · DL560-Gen11
HPE ProLiant
HPE ProLiant DL560 Gen11
2U 4-Socket Enterprise Server — Up to 240 Cores, 16 TB DDR5, 6 PCIe Gen5
Form Factor
2U rack-mountable, 4-socket (4P)
Processors Supported
2 or 4 × 4th Gen Intel Xeon Scalable, 8–60 cores, up to 112.5 MB L3 cache
Max Total Cores
240 (4 × 60-core processor)
Memory Type
HPE DDR5 SmartMemory RDIMM
- ›2U 4-socket — 4 × Intel Xeon Scalable 4th Gen, up to 60 cores each
- ›240 cores total — exceptional consolidation density in 2U
- ›64 DDR5 DIMM slots — up to 16 TB at 4800 MT/s
- ›6 PCIe Gen5 slots + 2 OCP 3.0 — for GPUs, NVMe, and HPC
HPE ProLiant Servers · DL580-Gen12
HPE ProLiant
HPE ProLiant DL580 Gen12
4U 4-Socket High-End Server — Intel Xeon 6, 16 TB DDR5, 12 PCIe Gen5, FIPS 140-3
Form Factor
4U rack-mountable, 4-socket (4P)
Processors Supported
2 or 4 × Intel Xeon 6 P-Core, 8–86 cores, up to 336 MB L3 cache, 4.0 GHz max
Max Total Cores
344 (4 × 86-core, e.g. Xeon 6787P 350W)
Memory Type
HPE DDR5 Smart Memory RDIMM
- ›Intel Xeon 6 — up to 86 cores per socket, up to 336 MB L3 cache
- ›4-socket 4U — up to 344 total cores, 2–4 processor configurations
- ›64 DDR5 DIMM slots — up to 16 TB at 6400 MT/s
- ›12 × x16 PCIe Gen5 + 2 OCP 3.0 — maximum I/O density
Need help selecting an HPE ProLiant server?
Servnet's HPE-authorised engineers will help you choose the right ProLiant configuration for your workload — with competitive pricing and fast UK delivery.
