Head-to-head · every figure from the vendor documents

Dell R760 vs HPE DL380 Gen10

A specification-by-specification comparison of the Dell PowerEdge R760 and the HPE ProLiant DL380 Gen10, built from Dell’s and HPE’s own documents. 5 headline measures favour the R760, 1 favours the DL380 Gen10, and they share no processors.

Bottom line. R760 leads on virtualisation, databases and in-memory work, storage density, network throughput. DL380 Gen10 leads on AI and acceleration. Neither vendor publishes benchmarks for these machines, so every call here is made on what their documents state.

Dell PowerEdge R760 front view: 24 hot-plug 2.5-inch drive bays with the control panel, USB and VGA ports at the right
Dell PowerEdge
R760
2U Rack2 sockets32 DIMMiDRAC9
Configure the R760 →Full data sheet
VS

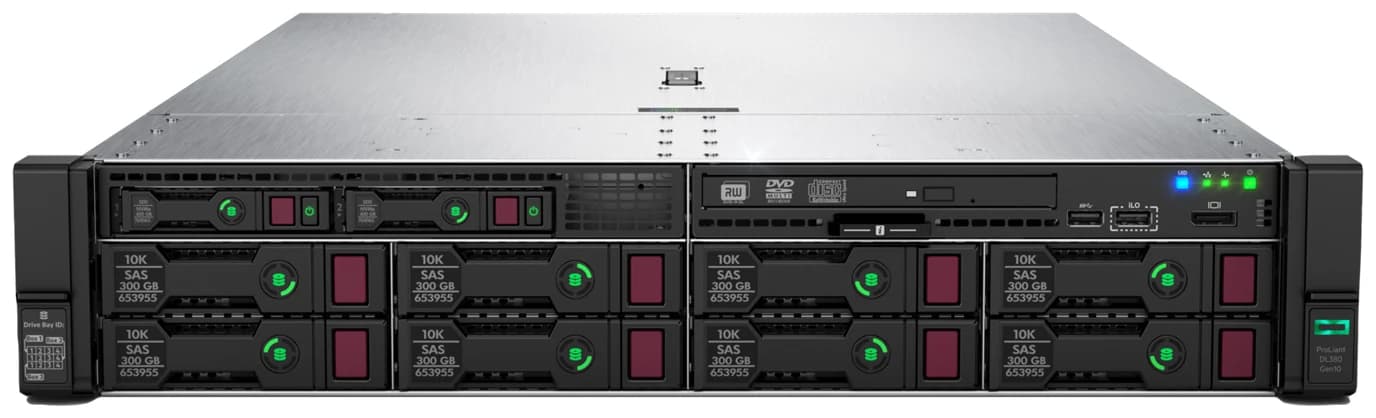

DL380 Gen10 front: eight 2.5-inch SAS bays, two premium bays, an optical drive and the media-bay ports, with the model badge at the right
HPE ProLiant
DL380 Gen10
2U Rack2 sockets24 DIMMHPE iLO 5
Configure the DL380 Gen10 →Full data sheet
01 — Scoreboard

The measures that decide it

Each row is a figure both vendors publish. Bars show the split between the two; a badge marks the larger figure, which is not always the better buy — a shallower chassis or a lower power ceiling can matter more.

R7602
Processor sockets
DL380 Gen102
R760128Higher
Cores, fully populated
Largest listed processor × its socket count
DL380 Gen1056
R7608 TBHigher
Memory ceiling
As each document states it
DL380 Gen103 TB
R76028Higher
Drive bays
DL380 Gen1024
R760Up to 6
Accelerators
DL380 Gen10Up to 8Higher
R7603,200 WHigher
Largest power supply
DL380 Gen102,200 W
R7602U Rack
Rack height
DL380 Gen102U Rack
R760200 GbE classHigher
Fastest network option
DL380 Gen10100 GbE class
02 — Verdict

Which one, and why

Drawn from the measures above and each model’s own data sheet. Neither vendor publishes benchmark results for these servers, so nothing here claims one is “faster”.

Choose the R760 if…

  • Cores, fully populated: 128 against 56 on the DL380 Gen10
  • Memory ceiling: 8 TB against 3 TB on the DL380 Gen10
  • Drive bays: 28 against 24 on the DL380 Gen10
  • Dell documents 51 processor SKUs, 31 drive-bay layouts and 10 power supplies for this one chassis — far more choice than the R760xs, R760xd2 or R760xa siblings.

Choose the DL380 Gen10 if…

  • Accelerators: Up to 8 against Up to 6 on the R760
  • Expansion is the whole argument for this chassis. Three riser positions carry as many as eight PCIe 3.0 slots, and the pair of x16/x16/x16 GPU riser kits each take three single-width accelerators — six across two processors. The 1U DL360 Gen10, built from the identical processor table, reaches three slots in total.
03 — By workload

Where each one pulls ahead

Calls made on documented capacity only — cores, memory, bays, accelerators and network options — with the figures behind each one shown.

VirtualisationR760: 128 cores with 8 TB. DL380 Gen10: 56 cores with 3 TB.R760
Databases & in-memoryMemory ceiling 8 TB against 3 TB, across 32 and 24 DIMM slots.R760
Storage density28 bays in 2U against 24 in 2U.R760
AI & acceleration6 accelerators against 8 in the vendor documents.DL380 Gen10
Network throughputFastest card listed: 200 GbE class against 100 GbE class.R760
04 — Specifications

Side by side, differences first

Everything both documents state, grouped. The default view hides rows where the two machines are identical.

Processors

Every processor each vendor lists for the model, from its own document.

SpecificationR760DL380 Gen10
Processors listed51113
Most cores per processor6428
Highest processor TDP350 W205 W
Processor familiesXeon Max (HBM) · 4th Gen Xeon Scalable · 5th Gen Xeon Scalable2nd Gen Intel Xeon Scalable (Platinum) · 1st Gen Intel Xeon Scalable (Platinum) · 2nd Gen Intel Xeon Scalable (Gold) · 1st Gen Intel Xeon Scalable (Gold) · 2nd Gen Intel Xeon Scalable (Silver) · 1st Gen Intel Xeon Scalable (Silver) · 2nd Gen Intel Xeon Scalable (Bronze) · 1st Gen Intel Xeon Scalable (Bronze)

Memory

SpecificationR760DL380 Gen10
DIMM slots3224
Slots per processor1612
Largest module listed256 GB512 GB
Fastest rated speed6,400 MT/s2,933 MT/s
Memory typesRDIMM DDR5-4800 · RDIMM DDR5-5600 · RDIMM DDR5-6400RDIMM DDR4-2933 (2nd Gen Intel Xeon Scalable only) · RDIMM DDR4-2666 (1st Gen Intel Xeon Scalable only) · LRDIMM DDR4-2933 · Intel Optane Persistent Memory for HPE (2666 MT/s) + 1 more

Storage

Bay counts are the maximum each document states, including rear and mid-chassis positions.

SpecificationR760DL380 Gen10
Maximum bays2824
Documented layouts3015
Bay sizes3.5-inch · 2.5-inch · E3.S2.5-inch · 3.5-inch
Boot devicesBOSS-N1HPE NS204i-p x2 Lanes NVMe PCIe3 x8 OS Boot Device · 2 x M.2 SATA on the default primary riser; RAID 1 requires HPE FIO Enable Smart Array SW RAID (784308-B21) · HPE Smart Array S100i SR Gen10 SW RAID (embedded, 14 SATA ports of which 12 accessible) + 1 more
Storage controllers1015

Accelerators & I/O

SpecificationR760DL380 Gen10
Accelerators supportedUp to 6Up to 8
Double-wide cards listed914
OCP slots10
Network cards listed2822

Power & platform

SpecificationR760DL380 Gen10
Power-supply options108
Output range700–3,200 W500–2,200 W
Input typesAC · 277 VAC / HVDC · −48 V DCAC · −48 V DC · 277 VAC / HVDC
ManagementiDRAC9HPE iLO 5
Chassis depthVendors measure depth differently — see each data sheet772.13 mm with bezel / 758.29 mm without bezelSFF drives: 8.73 x 44.54 x 67.94 cm (3.44 x 17.54 x 26.75 in)
05 — The data

Processors, memory, bays and power

The same charts each data sheet carries, drawn to the same scale so the two ranges can be read against each other.

R760: processors by cores and TDP

Dell PowerEdge R760 processors0816243240485664100 W150 W200 W250 W300 W350 WCores per processorIntel Xeon Max 9480 — 56 cores / 112 threads · 350 W · 1.9 GHz base · 113 MB cache · 4800Intel Xeon Max 9470 — 52 cores / 104 threads · 350 W · 2 GHz base · 105 MB cache · 4800Intel Xeon Max 9460 — 40 cores / 80 threads · 350 W · 2.2 GHz base · 98 MB cache · 4800Intel Xeon Max 9462 — 32 cores / 64 threads · 350 W · 2.7 GHz base · 75 MB cache · 4800Intel Xeon Platinum 8480+ — 56 cores / 112 threads · 350 W · 2 GHz base · 105 MB cache · 4800Intel Xeon Platinum 8470Q — 52 cores / 104 threads · 350 W · 2.1 GHz base · 105 MB cache · 4800Intel Xeon Platinum 8470 — 52 cores / 104 threads · 350 W · 2 GHz base · 105 MB cache · 4800Intel Xeon Platinum 8471N — 52 cores / 104 threads · 300 W · 1.8 GHz base · 98 MB cache · 4800Intel Xeon Platinum 8470N — 52 cores / 104 threads · 300 W · 1.7 GHz base · 98 MB cache · 4800Intel Xeon Platinum 8468 — 48 cores / 96 threads · 350 W · 2.1 GHz base · 105 MB cache · 4800Intel Xeon Platinum 8460Y+ — 40 cores / 80 threads · 300 W · 2 GHz base · 105 MB cache · 4800Intel Xeon Platinum 8452Y — 36 cores / 72 threads · 300 W · 2 GHz base · 68 MB cache · 4800Intel Xeon Gold 6458Q — 32 cores / 64 threads · 350 W · 3.1 GHz base · 60 MB cache · 4800Intel Xeon Platinum 8462Y+ — 32 cores / 64 threads · 300 W · 2.8 GHz base · 60 MB cache · 4800Intel Xeon Gold 6454S — 32 cores / 64 threads · 270 W · 2.2 GHz base · 60 MB cache · 4800Intel Xeon Gold 6430 — 32 cores / 64 threads · 270 W · 2.1 GHz base · 60 MB cache · 4800Intel Xeon Gold 6414U — 32 cores / 64 threads · 250 W · 2 GHz base · 60 MB cache · 4800Intel Xeon Gold 6448Y — 32 cores / 64 threads · 225 W · 2.2 GHz base · 60 MB cache · 4800Intel Xeon Gold 6438Y+ — 32 cores / 64 threads · 205 W · 2 GHz base · 60 MB cache · 4800Intel Xeon Gold 6438N — 32 cores / 64 threads · 205 W · 2 GHz base · 60 MB cache · 4800Intel Xeon Gold 6438M — 32 cores / 64 threads · 205 W · 2.2 GHz base · 60 MB cache · 4800Intel Xeon Gold 6428N — 32 cores / 64 threads · 185 W · 1.8 GHz base · 60 MB cache · 4800Intel Xeon Gold 6421N — 32 cores / 64 threads · 185 W · 1.8 GHz base · 60 MB cache · 4800Intel Xeon Gold 5420+ — 28 cores / 56 threads · 205 W · 2 GHz base · 53 MB cache · 4400Intel Xeon Gold 6442Y — 24 cores / 48 threads · 225 W · 2.6 GHz base · 60 MB cache · 4800Intel Xeon Gold 5418Y — 24 cores / 48 threads · 185 W · 2 GHz base · 45 MB cache · 4400Intel Xeon Gold 5412U — 24 cores / 48 threads · 185 W · 2.1 GHz base · 45 MB cache · 4400Intel Xeon Gold 5418N — 24 cores / 48 threads · 165 W · 1.8 GHz base · 45 MB cache · 4400Intel Xeon Gold 5411N — 24 cores / 48 threads · 165 W · 1.9 GHz base · 45 MB cache · 4400Intel Xeon Silver 4416+ — 20 cores / 40 threads · 165 W · 2 GHz base · 38 MB cache · 4000Intel Xeon Gold 6444Y — 16 cores / 32 threads · 270 W · 3.5 GHz base · 45 MB cache · 4800Intel Xeon Gold 6426Y — 16 cores / 32 threads · 185 W · 2.6 GHz base · 38 MB cache · 4800Intel Xeon Gold 5416S — 16 cores / 32 threads · 150 W · 2 GHz base · 30 MB cache · 4400Intel Xeon Silver 4410Y — 12 cores / 24 threads · 150 W · 2 GHz base · 30 MB cache · 4000Intel Xeon Gold 6434 — 8 cores / 16 threads · 205 W · 3.7 GHz base · 23 MB cache · 4800Intel Xeon Gold 5415+ — 8 cores / 16 threads · 150 W · 2.9 GHz base · 23 MB cache · 4400Intel Xeon Bronze 3408U — 8 cores / 16 threads · 125 W · 1.8 GHz base · 23 MB cache · 4000Intel Xeon Platinum 8592+ — 64 cores / 128 threads · 350 W · 1.9 GHz base · 320 MB cache · 5600Intel Xeon Platinum 8580 — 60 cores / 120 threads · 350 W · 2 GHz base · 300 MB cache · 5600Intel Xeon Platinum 8568Y+ — 48 cores / 96 threads · 350 W · 2.3 GHz base · 300 MB cache · 5600Intel Xeon Platinum 8558U — 48 cores / 96 threads · 300 W · 2 GHz base · 260 MB cache · 4800Intel Xeon Platinum 8562Y+ — 32 cores / 64 threads · 300 W · 2.8 GHz base · 60 MB cache · 5600Intel Xeon Gold 6548N — 32 cores / 64 threads · 250 W · 2.8 GHz base · 60 MB cache · 5200Intel Xeon Gold 6548Y+ — 32 cores / 64 threads · 250 W · 2.5 GHz base · 60 MB cache · 5200Intel Xeon Gold 5512U — 28 cores / 56 threads · 185 W · 2.1 GHz base · 52.5 MB cache · 4800Intel Xeon Gold 6542Y — 24 cores / 48 threads · 250 W · 2.9 GHz base · 60 MB cache · 5200Intel Xeon Gold 6526Y — 16 cores / 32 threads · 195 W · 2.8 GHz base · 37.5 MB cache · 5200Intel Xeon Silver 4514Y — 16 cores / 32 threads · 150 W · 2 GHz base · 30 MB cache · 4400Intel Xeon Silver 4510 — 12 cores / 24 threads · 150 W · 2.4 GHz base · 30 MB cache · 4400Intel Xeon Gold 6534 — 8 cores / 16 threads · 195 W · 3.9 GHz base · 22.5 MB cache · 4800Intel Xeon Silver 4509Y — 8 cores / 16 threads · 125 W · 2.6 GHz base · 23 MB cache · 44008592+64 cores · 5.5 W/core — top SKU and most efficient
Xeon Max (HBM) 44th Gen Xeon Scalable 335th Gen Xeon Scalable 14Bubble size = L3 cache · hover a bubble for the full SKU

DL380 Gen10: processors by cores and TDP

HPE ProLiant DL380 Gen10 processors0816243250 W100 W150 W200 W250 WCores per processorIntel Xeon Platinum 8280 — 28 cores · 205 W · 2.7 GHz base · 38.5 MB cache · 2933Intel Xeon Platinum 8280L — 28 cores · 205 W · 2.7 GHz base · 38.5 MB cache · 2933Intel Xeon Platinum 8280M — 28 cores · 205 W · 2.7 GHz base · 38.5 MB cache · 2933Intel Xeon Platinum 8276 — 28 cores · 165 W · 2.2 GHz base · 38.5 MB cache · 2933Intel Xeon Platinum 8276L — 28 cores · 165 W · 2.2 GHz base · 38.5 MB cache · 2933Intel Xeon Platinum 8276M — 28 cores · 165 W · 2.2 GHz base · 38.5 MB cache · 2933Intel Xeon Platinum 8270 — 26 cores · 205 W · 2.7 GHz base · 35.75 MB cache · 2933Intel Xeon Platinum 8268 — 24 cores · 205 W · 2.9 GHz base · 35.75 MB cache · 2933Intel Xeon Platinum 8260 — 24 cores · 165 W · 2.4 GHz base · 35.75 MB cache · 2933Intel Xeon Platinum 8260L — 24 cores · 165 W · 2.4 GHz base · 35.75 MB cache · 2933Intel Xeon Platinum 8260M — 24 cores · 165 W · 2.4 GHz base · 35.75 MB cache · 2933Intel Xeon Platinum 8260Y — 24 cores · 165 W · 2.4 GHz base · 35.75 MB cache · 2933Intel Xeon Platinum 8253 — 16 cores · 125 W · 2.2 GHz base · 22 MB cache · 2933Intel Xeon Platinum 8256 — 4 cores · 105 W · 3.8 GHz base · 16.5 MB cache · 2933Intel Xeon Platinum 8180 — 28 cores · 205 W · 2.5 GHz base · 38.5 MB cache · 2666Intel Xeon Platinum 8180M — 28 cores · 205 W · 2.5 GHz base · 38.5 MB cache · 2666Intel Xeon Platinum 8176 — 28 cores · 165 W · 2.1 GHz base · 38.5 MB cache · 2666Intel Xeon Platinum 8170 — 26 cores · 165 W · 2.1 GHz base · 35.75 MB cache · 2666Intel Xeon Platinum 8164 — 26 cores · 150 W · 2 GHz base · 35.75 MB cache · 2666Intel Xeon Platinum 8168 — 24 cores · 205 W · 2.7 GHz base · 33 MB cache · 2666Intel Xeon Platinum 8165 — 24 cores · 205 W · 2.3 GHz base · 33 MB cache · 2666Intel Xeon Platinum 8160 — 24 cores · 150 W · 2.1 GHz base · 33 MB cache · 2666Intel Xeon Platinum 8153 — 16 cores · 125 W · 2 GHz base · 22 MB cache · 2666Intel Xeon Platinum 8158 — 12 cores · 150 W · 3 GHz base · 24.75 MB cache · 2666Intel Xeon Platinum 8156 — 4 cores · 105 W · 3.6 GHz base · 16.5 MB cache · 2666Intel Xeon Gold 6258R — 28 cores · 205 W · 2.7 GHz base · 38.5 MB cache · 2933Intel Xeon Gold 6238R — 28 cores · 165 W · 2.2 GHz base · 38.5 MB cache · 2933Intel Xeon Gold 6230R — 26 cores · 150 W · 2.1 GHz base · 35.75 MB cache · 2933Intel Xeon Gold 6248R — 24 cores · 205 W · 3 GHz base · 35.75 MB cache · 2933Intel Xeon Gold 6240R — 24 cores · 165 W · 2.4 GHz base · 35.75 MB cache · 2933Intel Xeon Gold 6212U — 24 cores · 165 W · 2.4 GHz base · 35.75 MB cache · 2933Intel Xeon Gold 6252 — 24 cores · 150 W · 2.1 GHz base · 35.75 MB cache · 2933Intel Xeon Gold 6252N — 24 cores · 150 W · 2.3 GHz base · 35.75 MB cache · 2933Intel Xeon Gold 5220R — 24 cores · 150 W · 2.2 GHz base · 35.75 MB cache · 2666Intel Xeon Gold 6262V — 24 cores · 135 W · 1.9 GHz base · 33 MB cache · 2933Intel Xeon Gold 6238 — 22 cores · 140 W · 2.1 GHz base · 30.25 MB cache · 2933Intel Xeon Gold 6238L — 22 cores · 140 W · 2.1 GHz base · 30.25 MB cache · 2933Intel Xeon Gold 6238M — 22 cores · 140 W · 2.1 GHz base · 30.25 MB cache · 2933Intel Xeon Gold 6242R — 20 cores · 205 W · 3.1 GHz base · 35.75 MB cache · 2933Intel Xeon Gold 6248 — 20 cores · 150 W · 2.5 GHz base · 27.5 MB cache · 2933Intel Xeon Gold 6210U — 20 cores · 150 W · 2.5 GHz base · 27.5 MB cache · 2933Intel Xeon Gold 6230 — 20 cores · 125 W · 2.1 GHz base · 27.5 MB cache · 2933Intel Xeon Gold 6230N — 20 cores · 125 W · 2.3 GHz base · 27.5 MB cache · 2933Intel Xeon Gold 6209U — 20 cores · 125 W · 2.1 GHz base · 27.5 MB cache · 2933Intel Xeon Gold 5218R — 20 cores · 125 W · 2.1 GHz base · 27.5 MB cache · 2666Intel Xeon Gold 6222V — 20 cores · 115 W · 1.8 GHz base · 27.5 MB cache · 2933Intel Xeon Gold 6254 — 18 cores · 200 W · 3.1 GHz base · 24.75 MB cache · 2933Intel Xeon Gold 6240 — 18 cores · 150 W · 2.6 GHz base · 24.75 MB cache · 2933Intel Xeon Gold 6240L — 18 cores · 150 W · 2.6 GHz base · 24.75 MB cache · 2933Intel Xeon Gold 6240M — 18 cores · 150 W · 2.6 GHz base · 24.75 MB cache · 2933Intel Xeon Gold 6240Y — 18 cores · 150 W · 2.6 GHz base · 24.75 MB cache · 2933Intel Xeon Gold 5220 — 18 cores · 125 W · 2.2 GHz base · 24.75 MB cache · 2666Intel Xeon Gold 5220S — 18 cores · 125 W · 2.7 GHz base · 24.75 MB cache · 2666Intel Xeon Gold 6246R — 16 cores · 205 W · 3.4 GHz base · 35.75 MB cache · 2933Intel Xeon Gold 6242 — 16 cores · 150 W · 2.8 GHz base · 22 MB cache · 2933Intel Xeon Gold 6226R — 16 cores · 150 W · 2.9 GHz base · 22 MB cache · 2933Intel Xeon Gold 6208U — 16 cores · 150 W · 2.9 GHz base · 22 MB cache · 2933Intel Xeon Gold 5218 — 16 cores · 125 W · 2.3 GHz base · 22 MB cache · 2666Intel Xeon Gold 5218B — 16 cores · 125 W · 2.3 GHz base · 22 MB cache · 2666Intel Xeon Gold 5218N — 16 cores · 110 W · 2.3 GHz base · 22 MB cache · 2666Intel Xeon Gold 6256 — 12 cores · 205 W · 3.6 GHz base · 33 MB cache · 2933Intel Xeon Gold 6246 — 12 cores · 165 W · 3.3 GHz base · 24.75 MB cache · 2933Intel Xeon Gold 6226 — 12 cores · 125 W · 2.7 GHz base · 19.25 MB cache · 2933Intel Xeon Gold 5215 — 10 cores · 85 W · 2.5 GHz base · 13.75 MB cache · 2666Intel Xeon Gold 5215L — 10 cores · 85 W · 2.5 GHz base · 13.75 MB cache · 2666Intel Xeon Gold 5215M — 10 cores · 85 W · 2.5 GHz base · 13.75 MB cache · 2666Intel Xeon Gold 6250 — 8 cores · 185 W · 3.9 GHz base · 35.75 MB cache · 2933Intel Xeon Gold 6250L — 8 cores · 185 W · 3.9 GHz base · 35.75 MB cache · 2933Intel Xeon Gold 6244 — 8 cores · 150 W · 3.6 GHz base · 24.75 MB cache · 2933Intel Xeon Gold 6234 — 8 cores · 130 W · 3.3 GHz base · 24.75 MB cache · 2933Intel Xeon Gold 5217 — 8 cores · 115 W · 3 GHz base · 11 MB cache · 2666Intel Xeon Gold 5222 — 4 cores · 105 W · 3.8 GHz base · 16.5 MB cache · 2933Intel Xeon Gold 6152 — 22 cores · 140 W · 2.1 GHz base · 30.25 MB cache · 2666Intel Xeon Gold 6148 — 20 cores · 150 W · 2.4 GHz base · 27.5 MB cache · 2666Intel Xeon Gold 6138 — 20 cores · 125 W · 2 GHz base · 27.5 MB cache · 2666Intel Xeon Gold 6154 — 18 cores · 200 W · 3 GHz base · 24.75 MB cache · 2666Intel Xeon Gold 6150 — 18 cores · 165 W · 2.7 GHz base · 24.75 MB cache · 2666Intel Xeon Gold 6140 — 18 cores · 140 W · 2.3 GHz base · 24.75 MB cache · 2666Intel Xeon Gold 6143 — 16 cores · 205 W · 2.8 GHz base · 22 MB cache · 2666Intel Xeon Gold 6142 — 16 cores · 150 W · 2.6 GHz base · 22 MB cache · 2666Intel Xeon Gold 6130 — 16 cores · 125 W · 2.1 GHz base · 22 MB cache · 2666Intel Xeon Gold 6132 — 14 cores · 140 W · 2.6 GHz base · 19.25 MB cache · 2666Intel Xeon Gold 5120 — 14 cores · 105 W · 2.2 GHz base · 19.25 MB cache · 2400Intel Xeon Gold 5117 — 14 cores · 105 W · 2 GHz base · 19.25 MB cache · 2400Intel Xeon Gold 6146 — 12 cores · 165 W · 3.2 GHz base · 24.75 MB cache · 2666Intel Xeon Gold 6136 — 12 cores · 150 W · 3 GHz base · 24.75 MB cache · 2666Intel Xeon Gold 6126 — 12 cores · 125 W · 2.6 GHz base · 19.25 MB cache · 2666Intel Xeon Gold 5118 — 12 cores · 105 W · 2.3 GHz base · 16.5 MB cache · 2400Intel Xeon Gold 5115 — 10 cores · 85 W · 2.4 GHz base · 13.75 MB cache · 2400Intel Xeon Gold 6137 — 8 cores · 205 W · 3.9 GHz base · 24.75 MB cache · 2666Intel Xeon Gold 6144 — 8 cores · 150 W · 3.5 GHz base · 24.75 MB cache · 2666Intel Xeon Gold 6134 — 8 cores · 130 W · 3.2 GHz base · 24.75 MB cache · 2666Intel Xeon Gold 6134M — 8 cores · 130 W · 3.2 GHz base · 24.75 MB cache · 2666Intel Xeon Gold 6128 — 6 cores · 115 W · 3.4 GHz base · 19.25 MB cache · 2666Intel Xeon Gold 5122 — 4 cores · 105 W · 3.6 GHz base · 16.5 MB cache · 2666Intel Xeon Silver 4216 — 16 cores · 100 W · 2.1 GHz base · 22 MB cache · 2400Intel Xeon Silver 4214R — 12 cores · 100 W · 2.4 GHz base · 16.5 MB cache · 2400Intel Xeon Silver 4214 — 12 cores · 85 W · 2.2 GHz base · 16.5 MB cache · 2400Intel Xeon Silver 4214Y — 12 cores · 85 W · 2.2 GHz base · 16.5 MB cache · 2400Intel Xeon Silver 4210R — 10 cores · 100 W · 2.4 GHz base · 13.75 MB cache · 2400Intel Xeon Silver 4210 — 10 cores · 85 W · 2.2 GHz base · 13.75 MB cache · 2400Intel Xeon Silver 4215R — 8 cores · 130 W · 3.2 GHz base · 11 MB cache · 2400Intel Xeon Silver 4215 — 8 cores · 85 W · 2.5 GHz base · 11 MB cache · 2400Intel Xeon Silver 4208 — 8 cores · 85 W · 2.1 GHz base · 11 MB cache · 2400Intel Xeon Silver 4116 — 12 cores · 85 W · 2.1 GHz base · 16.5 MB cache · 2400Intel Xeon Silver 4114 — 10 cores · 85 W · 2.2 GHz base · 13.75 MB cache · 2400Intel Xeon Silver 4110 — 8 cores · 85 W · 2.1 GHz base · 11 MB cache · 2400Intel Xeon Silver 4108 — 8 cores · 85 W · 1.8 GHz base · 11 MB cache · 2400Intel Xeon Silver 4112 — 4 cores · 85 W · 2.6 GHz base · 8.25 MB cache · 2400Intel Xeon Bronze 3206R — 8 cores · 85 W · 1.9 GHz base · 11 MB cache · 2133Intel Xeon Bronze 3204 — 6 cores · 85 W · 1.9 GHz base · 8.25 MB cache · 2133Intel Xeon Bronze 3106 — 8 cores · 85 W · 1.7 GHz base · 11 MB cache · 2133Intel Xeon Bronze 3104 — 6 cores · 85 W · 1.7 GHz base · 8.25 MB cache · 2133828028 cores — the top SKU6262V5.6 W/core — most efficient
2nd Gen Intel Xeon Scalable (Platinum) 141st Gen Intel Xeon Scalable (Platinum) 112nd Gen Intel Xeon Scalable (Gold) 471st Gen Intel Xeon Scalable (Gold) 232nd Gen Intel Xeon Scalable (Silver) 91st Gen Intel Xeon Scalable (Silver) 52nd Gen Intel Xeon Scalable (Bronze) 21st Gen Intel Xeon Scalable (Bronze) 2Bubble size = L3 cache · hover a bubble for the full SKU

R760: memory with every slot filled

16 GB512 GB32 GB1 TB64 GB2 TB96 GB3 TB128 GB4 TB256 GB8 TB32 slots · 16 per processor · each tick = one DIMM

DL380 Gen10: memory with every slot filled

8 GB192 GB16 GB384 GB32 GB768 GB64 GB1.5 TB128 GB3 TB512 GB12 TB24 slots · 12 per processor · each tick = one DIMM

R760: drive bays

Front panel

Rear module

24 × 2.5" SAS/SATA at the front, plus 4 × 2.5" SAS/SATA at the rear — 28 bays in total.

SAS/SATANVMeSAS/SATA + NVMe

DL380 Gen10: drive bays

Front panel

24 × 2.5" SAS/SATA at the front — 24 bays in total.

SAS/SATANVMeSAS/SATA + NVMe

R760: power supplies

0500100015002000250030003500700 W Titanium — Mixed mode HLAC (200-240 V AC / 240 V DC); 60 mm700Titanium800 W Platinum — Mixed mode (100-240 V AC / 240 V DC); 60 mm800Platinum1100 W N/A (-48 V DC) — -(48-60) V DC input (LVDC); 60 mm1100DC1100 W Titanium — Mixed mode (100-240 V AC / 240 V DC); 1050 W at low line; 60 mm10501100Titanium1400 W Platinum — Mixed mode (100-240 V AC / 240 V DC); 1050 W at low line; 60 mm10501400Platinum1400 W Titanium — Mixed mode 277 V AC and HVDC (336 V DC); 60 mm1400Titanium1800 W Titanium — Mixed mode HLAC (200-240 V AC / 240 V DC); 60 mm1800Titanium2400 W Platinum — Mixed mode (100-240 V AC / 240 V DC); 1400 W at low line; 86 mm14002400Platinum2800 W Titanium — Mixed mode HLAC (200-240 V AC / 240 V DC); 86 mm2800Titanium3200 W Titanium — Mixed mode 277 V AC and HVDC (336 V DC); 86 mm3200TitaniumWatts · dashed line = output at 100–120 V low line
AC277 VAC / HVDC−48 V DC

DL380 Gen10: power supplies

05001000150020002500500 W Platinum — Up to 94% efficiency; standard C14 inlet. 100-240 VAC. 1840 BTU/hr at 200 VAC.500Platinum800 W Platinum — Up to 94% efficiency; standard C14 inlet. 100-240 VAC. 2958 BTU/hr at 200 VAC.800Platinum800 W Titanium — Up to 96% efficiency; standard C14 inlet. 200-240 VAC. One of the three part numbers HPE names as meeting the EU/UK Lot 9 96% single-output requirement from 1 January 2024.800Titanium800 W Up to 94% (DC input) — -48VDC input, -40 Vdc to -72 Vdc.800DC800 W Up to 94% (universal AC/DC) — Universal high-voltage AC/DC; supports 277VAC/380VDC inputs (200-277 VAC rated).800DC1600 W Platinum — Up to 94% efficiency; C14 inlet supporting HPE Power Discovery Services (blue connector). 200-240 VAC. 5918 BTU/hr at 200 VAC.1600Platinum1600 W Up to 94% (DC input) — -48VDC. Requires power cable kit P22173-B21 or power lug kit P36877-B21. Not supported with Intel Optane Persistent Memory (128/256/512 GB).1600DC2200 W Titanium — HPE 1800W-2200W Flex Slot Titanium; up to 96% efficiency and EU Lot 9 compliant. Rated output varies with input: 1800W at 200 VAC, 1900W at 208 VAC, 2000W at 220 VAC, 2100W at 230 VAC, 2200W at 240 VAC.2200TitaniumWatts · dashed line = output at 100–120 V low line
AC277 VAC / HVDC−48 V DC
07 — Questions

R760 vs DL380 Gen10, answered

Is the R760 or the DL380 Gen10 the faster server?

Neither document publishes benchmark results, so this page compares what they do state. The R760 lists 51 processors up to 64 cores at 350 W; the DL380 Gen10 lists 113 up to 28 cores at 205 W. Fully populated that is 128 cores against 56.

Which holds more memory?

The R760 has 32 DIMM slots and a stated ceiling of 8 TB. The DL380 Gen10 has 24 and 3.0 TB.

Which takes more drives?

R760: 28 bays across 30 documented layouts. DL380 Gen10: 24 across 15. Counts include rear and mid-chassis positions where the vendor documents them.

Can either take GPUs?

R760: up to 6 accelerators, 9 double-wide cards listed. DL380 Gen10: up to 8, 14 double-wide listed.

Do they share any processors?

No. The two documents list different processors, so a like-for-like processor build is not possible across these two.

Where these figures come from. R760: Dell PowerEdge R760 Technical Guide (Rev. A06, June 2026) (Dell document). DL380 Gen10: HPE ProLiant DL380 Gen10 Server QuickSpecs (a00008180enw, Version 77, 16 June 2025) (HPE document). Each claim on this page is derived from those documents, checked page by page on the two data sheets, and carries no pricing.
