Technical data sheet · ThinkSystem V3 · 1U dual-socket

Lenovo ThinkSystem SR630 V3Specifications, configurations & comparisons

The ThinkSystem SR630 V3 fits a pair of Intel Xeon Scalable processors — 4th or 5th Gen — and 32 DDR5 DIMM slots into a single rack unit. Lenovo names databases, virtualisation, cloud and HPC among its target workloads, and room for three single-wide GPUs adds a route to compact inference. This page maps every documented limit — drive layouts, riser and fan rules, liquid cooling and one-socket builds — before you configure one.

1U Rack1 or 2 sockets5th Gen Xeon Scalable4th Gen Xeon ScalableXClarity Controller 2
64cores per processorPlatinum 8592+, 8592V and 8593Q
8TBDDR5 maximum32 × 256 GB 3DS RDIMM
122.5" drive bays10 front + 2 rear
16E1.S NVMe baysEDSFF front option
5PCIe slots3 rear + 2 front, plus OCP 3.0
3single-wide GPUsup to 75 W each
Configure an SR630 V3 →Get a UK quoteRefurbished alternatives ↓

Every figure checked against the Lenovo ThinkSystem SR630 V3 Server Product Guide

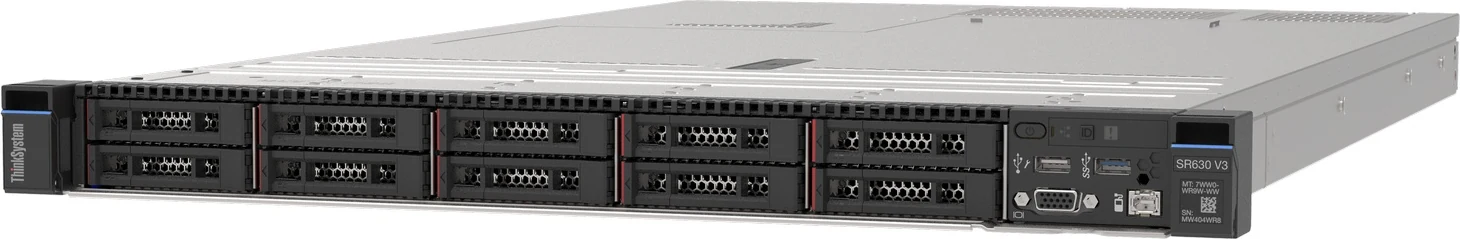

Lenovo ThinkSystem SR630 V3 1U front: ten 2.5-inch hot-swap drive bays, operator panel, two USB ports and the optional VGA port

Image: Lenovo

Form factor
1U Rack · 2 sockets
Processors
5th Gen Xeon · 4th Gen Xeon
Memory
32 × DDR5 RDIMM · up to 8 TB
Drive bays
Up to 16 · 20 backplane options
Expansion
5 × PCIe · 1 × OCP 3.0
GPUs
Up to 3 · 1 listed
Boot
M.2 · 3 boot options
Management
XClarity Controller 2
01 — Overview

The SR630 V3 at a glance

Our read of Lenovo’s documentation: where the SR630 V3 is strong, and the limits worth knowing before you spec one.

Strengths

  • Two sockets, 32 DDR5 slots and an 8 TB memory ceiling in 1U — the same ceiling Lenovo gives the 2U SR650 V3.
  • A choice of 84 processors from 8 to 64 cores, including 16 single-socket parts for one-processor servers that will never need a second CPU.
  • All twelve 2.5-inch bays (ten front, two rear) or all sixteen E1.S bays can hold NVMe drives on direct onboard links, with no retimer card.
  • The front-I/O chassis places two PCIe 4.0 slots plus the OCP 3.0 adapter on the front panel, beside four 2.5-inch bays.
  • Two liquid-cooling routes for the hottest chips: a closed-loop Neptune Liquid to Air module, or an open-loop Neptune direct-water module plumbed to the rack.

Watch-outs

  • Any processor above 300 W needs one of the Neptune modules or a front cut back to a single 4-bay backplane, and the closed-loop module holds inlet air to 25 °C.
  • Standard (21K RPM) fans are permitted only in a narrow low-power, low-I/O build, so GPU, NVMe-dense, rear-drive and single-CPU servers all run the faster 28K RPM Performance fans.
  • Only three rear slots, and slot 3 hangs off CPU 2 — a one-processor server keeps slots 1 and 2 and half the DIMM slots.
  • With GPUs fitted, processors above 220 W restrict the front to four 2.5-inch SAS/SATA bays, and the L4 is sold only on Lenovo’s “for AI” base models.
  • Lenovo marks the 4 × 3.5-inch AnyBay backplane (B8N1) withdrawn, so the 3.5-inch front is SAS/SATA only; NVMe then has to come from the rear bays.
Processors84 SKUs
Cores / CPU8–64
DIMM slots32
Backplanes20
Max bays16
GPUsup to 3
PSU options9 · to 1,800 W
02 — Processors

84 supported processors, mapped

The SR630 V3 accepts 84 Xeon Scalable SKUs. Fifty-two are 4th Gen and thirty-two 5th Gen; core counts run from 8 up to 64 and TDP from a 115 W low to a 385 W peak, and sixteen of them cannot be paired. Every SKU brings eight DDR5 channels, up to 80 PCIe 5.0 lanes and up to four UPI links — the landscape and explorer below break the list down.

Processor landscape — cores × TDP

84 SKUs · 2 families
Lenovo ThinkSystem SR630 V3: every supported processor by cores and TDP0816243240485664100 W150 W200 W250 W300 W350 W400 WCores per processorIntel Xeon Platinum 8593Q — 64 cores / 128 threads · 385 W · 2.2 GHz base · 320 MB cache · DDR5-5600Intel Xeon Platinum 8592+ — 64 cores / 128 threads · 350 W · 1.9 GHz base · 320 MB cache · DDR5-5600Intel Xeon Platinum 8592V — 64 cores / 128 threads · 330 W · 2 GHz base · 320 MB cache · DDR5-4800Intel Xeon Platinum 8580 — 60 cores / 120 threads · 350 W · 2 GHz base · 300 MB cache · DDR5-5600Intel Xeon Platinum 8581V — 60 cores / 120 threads · 270 W · 2 GHz base · 300 MB cache · DDR5-4800Intel Xeon Platinum 8570 — 56 cores / 112 threads · 350 W · 2.1 GHz base · 300 MB cache · DDR5-5600Intel Xeon Platinum 8571N — 52 cores / 104 threads · 300 W · 2.4 GHz base · 300 MB cache · DDR5-4800Intel Xeon Platinum 8558P — 48 cores / 96 threads · 350 W · 2.7 GHz base · 260 MB cache · DDR5-5600Intel Xeon Platinum 8568Y+ — 48 cores / 96 threads · 350 W · 2.3 GHz base · 300 MB cache · DDR5-5600Intel Xeon Platinum 8558 — 48 cores / 96 threads · 330 W · 2.1 GHz base · 260 MB cache · DDR5-5200Intel Xeon Platinum 8558U — 48 cores / 96 threads · 300 W · 2 GHz base · 260 MB cache · DDR5-4800Intel Xeon Gold 6554S — 36 cores / 72 threads · 270 W · 2.2 GHz base · 180 MB cache · DDR5-5200Intel Xeon Gold 6558Q — 32 cores / 64 threads · 350 W · 3.2 GHz base · 60 MB cache · DDR5-5200Intel Xeon Platinum 8562Y+ — 32 cores / 64 threads · 300 W · 2.8 GHz base · 60 MB cache · DDR5-5600Intel Xeon Gold 6530 — 32 cores / 64 threads · 270 W · 2.1 GHz base · 160 MB cache · DDR5-4800Intel Xeon Gold 6548N — 32 cores / 64 threads · 250 W · 2.8 GHz base · 60 MB cache · DDR5-5200Intel Xeon Gold 6548Y+ — 32 cores / 64 threads · 250 W · 2.5 GHz base · 60 MB cache · DDR5-5200Intel Xeon Gold 6538Y+ — 32 cores / 64 threads · 225 W · 2.2 GHz base · 60 MB cache · DDR5-5200Intel Xeon Gold 6538N — 32 cores / 64 threads · 205 W · 2.1 GHz base · 60 MB cache · DDR5-5200Intel Xeon Gold 5520+ — 28 cores / 56 threads · 205 W · 2.2 GHz base · 52.5 MB cache · DDR5-4800Intel Xeon Gold 5512U — 28 cores / 56 threads · 185 W · 2.1 GHz base · 52.5 MB cache · DDR5-4800Intel Xeon Gold 6542Y — 24 cores / 48 threads · 250 W · 2.9 GHz base · 60 MB cache · DDR5-5200Intel Xeon Silver 4516Y+ — 24 cores / 48 threads · 185 W · 2.2 GHz base · 45 MB cache · DDR5-4400Intel Xeon Gold 6544Y — 16 cores / 32 threads · 270 W · 3.6 GHz base · 45 MB cache · DDR5-5200Intel Xeon Gold 6526Y — 16 cores / 32 threads · 195 W · 2.8 GHz base · 37.5 MB cache · DDR5-5200Intel Xeon Silver 4514Y — 16 cores / 32 threads · 150 W · 2 GHz base · 30 MB cache · DDR5-4400Intel Xeon Silver 4510 — 12 cores / 24 threads · 150 W · 2.4 GHz base · 30 MB cache · DDR5-4400Intel Xeon Silver 4510T — 12 cores / 24 threads · 115 W · 2 GHz base · 30 MB cache · DDR5-4400Intel Xeon Gold 6534 — 8 cores / 16 threads · 195 W · 3.9 GHz base · 22.5 MB cache · DDR5-4800Intel Xeon Gold 5515+ — 8 cores / 16 threads · 165 W · 3.2 GHz base · 22.5 MB cache · DDR5-4800Intel Xeon Bronze 3508U — 8 cores / 8 threads · 125 W · 2.1 GHz base · 22.5 MB cache · DDR5-4400Intel Xeon Silver 4509Y — 8 cores / 16 threads · 125 W · 2.6 GHz base · 22.5 MB cache · DDR5-4400Intel Xeon Platinum 8490H — 60 cores / 120 threads · 350 W · 1.9 GHz base · 112.5 MB cache · DDR5-4800Intel Xeon Platinum 8480+ — 56 cores / 112 threads · 350 W · 2 GHz base · 105 MB cache · DDR5-4800Intel Xeon Platinum 8480CL — 56 cores / 112 threads · 350 W · 2 GHz base · 105 MB cache · DDR5-4800Intel Xeon Platinum 8470 — 52 cores / 104 threads · 350 W · 2 GHz base · 105 MB cache · DDR5-4800Intel Xeon Platinum 8470Q — 52 cores / 104 threads · 350 W · 2.1 GHz base · 105 MB cache · DDR5-4800Intel Xeon Platinum 8470N — 52 cores / 104 threads · 300 W · 1.7 GHz base · 97.5 MB cache · DDR5-4800Intel Xeon Platinum 8468 — 48 cores / 96 threads · 350 W · 2.1 GHz base · 105 MB cache · DDR5-4800Intel Xeon Platinum 8468H — 48 cores / 96 threads · 330 W · 2.1 GHz base · 105 MB cache · DDR5-4800Intel Xeon Platinum 8468V — 48 cores / 96 threads · 330 W · 2.4 GHz base · 97.5 MB cache · DDR5-4800Intel Xeon Platinum 8461V — 48 cores / 96 threads · 300 W · 2.2 GHz base · 97.5 MB cache · DDR5-4800Intel Xeon Platinum 8458P — 44 cores / 88 threads · 350 W · 2.7 GHz base · 82.5 MB cache · DDR5-4800Intel Xeon Platinum 8460H — 40 cores / 80 threads · 330 W · 2.2 GHz base · 105 MB cache · DDR5-4800Intel Xeon Platinum 8460Y+ — 40 cores / 80 threads · 300 W · 2 GHz base · 105 MB cache · DDR5-4800Intel Xeon Platinum 8452Y — 36 cores / 72 threads · 300 W · 2 GHz base · 67.5 MB cache · DDR5-4800Intel Xeon Gold 6458Q — 32 cores / 64 threads · 350 W · 3.1 GHz base · 60 MB cache · DDR5-4800Intel Xeon Platinum 8462Y+ — 32 cores / 64 threads · 300 W · 2.8 GHz base · 60 MB cache · DDR5-4800Intel Xeon Gold 6430 — 32 cores / 64 threads · 270 W · 2.1 GHz base · 60 MB cache · DDR5-4400Intel Xeon Gold 6454S — 32 cores / 64 threads · 270 W · 2.2 GHz base · 60 MB cache · DDR5-4800Intel Xeon Platinum 8454H — 32 cores / 64 threads · 270 W · 2.1 GHz base · 82.5 MB cache · DDR5-4800Intel Xeon Gold 6414U — 32 cores / 64 threads · 250 W · 2 GHz base · 60 MB cache · DDR5-4800Intel Xeon Gold 6448H — 32 cores / 64 threads · 250 W · 2.4 GHz base · 60 MB cache · DDR5-4800Intel Xeon Gold 6448Y — 32 cores / 64 threads · 225 W · 2.1 GHz base · 60 MB cache · DDR5-4800Intel Xeon Gold 6433N — 32 cores / 64 threads · 205 W · 2 GHz base · 60 MB cache · DDR5-4400Intel Xeon Gold 6438M — 32 cores / 64 threads · 205 W · 2.2 GHz base · 60 MB cache · DDR5-4800Intel Xeon Gold 6438N — 32 cores / 64 threads · 205 W · 2 GHz base · 60 MB cache · DDR5-4800Intel Xeon Gold 6438Y+ — 32 cores / 64 threads · 205 W · 2 GHz base · 60 MB cache · DDR5-4800Intel Xeon Gold 6443N — 32 cores / 64 threads · 195 W · 1.6 GHz base · 60 MB cache · DDR5-4400Intel Xeon Gold 6428N — 32 cores / 64 threads · 185 W · 1.8 GHz base · 60 MB cache · DDR5-4000Intel Xeon Platinum 8450H — 28 cores / 56 threads · 250 W · 2 GHz base · 75 MB cache · DDR5-4800Intel Xeon Gold 5420+ — 28 cores / 56 threads · 205 W · 2 GHz base · 52.5 MB cache · DDR5-4400Intel Xeon Gold 6423N — 28 cores / 56 threads · 195 W · 2 GHz base · 52.5 MB cache · DDR5-4400Intel Xeon Gold 6442Y — 24 cores / 48 threads · 225 W · 2.6 GHz base · 60 MB cache · DDR5-4800Intel Xeon Gold 5412U — 24 cores / 48 threads · 185 W · 2.1 GHz base · 45 MB cache · DDR5-4400Intel Xeon Gold 5418Y — 24 cores / 48 threads · 185 W · 2 GHz base · 45 MB cache · DDR5-4400Intel Xeon Gold 6403N — 24 cores / 48 threads · 185 W · 1.9 GHz base · 45 MB cache · DDR5-4000Intel Xeon Gold 6418H — 24 cores / 48 threads · 185 W · 2.1 GHz base · 60 MB cache · DDR5-4800Intel Xeon Gold 5411N — 24 cores / 48 threads · 165 W · 1.9 GHz base · 45 MB cache · DDR5-4400Intel Xeon Gold 5418N — 24 cores / 48 threads · 165 W · 1.8 GHz base · 45 MB cache · DDR5-4000Intel Xeon Silver 4416+ — 20 cores / 40 threads · 165 W · 2 GHz base · 37.5 MB cache · DDR5-4000Intel Xeon Gold 5433N — 20 cores / 48 threads · 160 W · 2.3 GHz base · 45 MB cache · DDR5-4000Intel Xeon Gold 5423N — 20 cores / 40 threads · 145 W · 2.1 GHz base · 37.5 MB cache · DDR5-4000Intel Xeon Gold 6416H — 18 cores / 36 threads · 165 W · 2.2 GHz base · 45 MB cache · DDR5-4800Intel Xeon Gold 6444Y — 16 cores / 32 threads · 270 W · 3.6 GHz base · 45 MB cache · DDR5-4800Intel Xeon Platinum 8444H — 16 cores / 32 threads · 270 W · 2.9 GHz base · 45 MB cache · DDR5-4800Intel Xeon Gold 6426Y — 16 cores / 32 threads · 185 W · 2.5 GHz base · 37.5 MB cache · DDR5-4800Intel Xeon Gold 5416S — 16 cores / 32 threads · 150 W · 2 GHz base · 30 MB cache · DDR5-4400Intel Xeon Silver 4410Y — 12 cores / 24 threads · 150 W · 2 GHz base · 30 MB cache · DDR5-4000Intel Xeon Silver 4410T — 10 cores / 20 threads · 150 W · 2.7 GHz base · 26.25 MB cache · DDR5-4000Intel Xeon Gold 6434 — 8 cores / 16 threads · 195 W · 3.7 GHz base · 22.5 MB cache · DDR5-4800Intel Xeon Gold 6434H — 8 cores / 16 threads · 195 W · 3.7 GHz base · 22.5 MB cache · DDR5-4800Intel Xeon Gold 5415+ — 8 cores / 16 threads · 150 W · 2.9 GHz base · 22.5 MB cache · DDR5-4400Intel Xeon Bronze 3408U — 8 cores / 8 threads · 125 W · 1.8 GHz base · 22.5 MB cache · DDR5-40008593Q64 cores — the top SKU8581V4.5 W/core — most efficient
5th Gen Xeon Scalable 324th Gen Xeon Scalable 52Bubble size = L3 cache · hover a bubble for the full SKU

Processor explorer

filter · sort · compare
ProcessorCores / threadsBaseL3 cacheTDPW / coreMemory
Intel Xeon Platinum 8593Q64 / 1282.2 GHz320 MB385 W6.0DDR5-5600
Intel Xeon Platinum 8592+64 / 1281.9 GHz320 MB350 W5.5DDR5-5600
Intel Xeon Platinum 8592V64 / 1282 GHz320 MB330 W5.2DDR5-4800
Intel Xeon Platinum 858060 / 1202 GHz300 MB350 W5.8DDR5-5600
Intel Xeon Platinum 8581V60 / 1202 GHz300 MB270 W4.5DDR5-4800
Intel Xeon Platinum 8490H60 / 1201.9 GHz112.5 MB350 W5.8DDR5-4800
Intel Xeon Platinum 857056 / 1122.1 GHz300 MB350 W6.3DDR5-5600
Intel Xeon Platinum 8480+56 / 1122 GHz105 MB350 W6.3DDR5-4800
Intel Xeon Platinum 8480CL56 / 1122 GHz105 MB350 W6.3DDR5-4800
Intel Xeon Platinum 8571N52 / 1042.4 GHz300 MB300 W5.8DDR5-4800
Intel Xeon Platinum 847052 / 1042 GHz105 MB350 W6.7DDR5-4800
Intel Xeon Platinum 8470Q52 / 1042.1 GHz105 MB350 W6.7DDR5-4800
Intel Xeon Platinum 8470N52 / 1041.7 GHz97.5 MB300 W5.8DDR5-4800
Intel Xeon Platinum 8558P48 / 962.7 GHz260 MB350 W7.3DDR5-5600
Intel Xeon Platinum 8568Y+48 / 962.3 GHz300 MB350 W7.3DDR5-5600
Intel Xeon Platinum 855848 / 962.1 GHz260 MB330 W6.9DDR5-5200
Intel Xeon Platinum 8558U48 / 962 GHz260 MB300 W6.3DDR5-4800
Intel Xeon Platinum 846848 / 962.1 GHz105 MB350 W7.3DDR5-4800
Intel Xeon Platinum 8468H48 / 962.1 GHz105 MB330 W6.9DDR5-4800
Intel Xeon Platinum 8468V48 / 962.4 GHz97.5 MB330 W6.9DDR5-4800
Intel Xeon Platinum 8461V48 / 962.2 GHz97.5 MB300 W6.3DDR5-4800
Intel Xeon Platinum 8458P44 / 882.7 GHz82.5 MB350 W8.0DDR5-4800
Intel Xeon Platinum 8460H40 / 802.2 GHz105 MB330 W8.3DDR5-4800
Intel Xeon Platinum 8460Y+40 / 802 GHz105 MB300 W7.5DDR5-4800
Intel Xeon Gold 6554S36 / 722.2 GHz180 MB270 W7.5DDR5-5200
Intel Xeon Platinum 8452Y36 / 722 GHz67.5 MB300 W8.3DDR5-4800
Intel Xeon Gold 6558Q32 / 643.2 GHz60 MB350 W10.9DDR5-5200
Intel Xeon Platinum 8562Y+32 / 642.8 GHz60 MB300 W9.4DDR5-5600
Intel Xeon Gold 653032 / 642.1 GHz160 MB270 W8.4DDR5-4800
Intel Xeon Gold 6548N32 / 642.8 GHz60 MB250 W7.8DDR5-5200
Intel Xeon Gold 6548Y+32 / 642.5 GHz60 MB250 W7.8DDR5-5200
Intel Xeon Gold 6538Y+32 / 642.2 GHz60 MB225 W7.0DDR5-5200
Intel Xeon Gold 6538N32 / 642.1 GHz60 MB205 W6.4DDR5-5200
Intel Xeon Gold 6458Q32 / 643.1 GHz60 MB350 W10.9DDR5-4800
Intel Xeon Platinum 8462Y+32 / 642.8 GHz60 MB300 W9.4DDR5-4800
Intel Xeon Gold 643032 / 642.1 GHz60 MB270 W8.4DDR5-4400
Intel Xeon Gold 6454S32 / 642.2 GHz60 MB270 W8.4DDR5-4800
Intel Xeon Platinum 8454H32 / 642.1 GHz82.5 MB270 W8.4DDR5-4800
Intel Xeon Gold 6414U32 / 642 GHz60 MB250 W7.8DDR5-4800
Intel Xeon Gold 6448H32 / 642.4 GHz60 MB250 W7.8DDR5-4800
Intel Xeon Gold 6448Y32 / 642.1 GHz60 MB225 W7.0DDR5-4800
Intel Xeon Gold 6433N32 / 642 GHz60 MB205 W6.4DDR5-4400
Intel Xeon Gold 6438M32 / 642.2 GHz60 MB205 W6.4DDR5-4800
Intel Xeon Gold 6438N32 / 642 GHz60 MB205 W6.4DDR5-4800
Intel Xeon Gold 6438Y+32 / 642 GHz60 MB205 W6.4DDR5-4800
Intel Xeon Gold 6443N32 / 641.6 GHz60 MB195 W6.1DDR5-4400
Intel Xeon Gold 6428N32 / 641.8 GHz60 MB185 W5.8DDR5-4000
Intel Xeon Gold 5520+28 / 562.2 GHz52.5 MB205 W7.3DDR5-4800
Intel Xeon Gold 5512U28 / 562.1 GHz52.5 MB185 W6.6DDR5-4800
Intel Xeon Platinum 8450H28 / 562 GHz75 MB250 W8.9DDR5-4800
Intel Xeon Gold 5420+28 / 562 GHz52.5 MB205 W7.3DDR5-4400
Intel Xeon Gold 6423N28 / 562 GHz52.5 MB195 W7.0DDR5-4400
Intel Xeon Gold 6542Y24 / 482.9 GHz60 MB250 W10.4DDR5-5200
Intel Xeon Silver 4516Y+24 / 482.2 GHz45 MB185 W7.7DDR5-4400
Intel Xeon Gold 6442Y24 / 482.6 GHz60 MB225 W9.4DDR5-4800
Intel Xeon Gold 5412U24 / 482.1 GHz45 MB185 W7.7DDR5-4400
Intel Xeon Gold 5418Y24 / 482 GHz45 MB185 W7.7DDR5-4400
Intel Xeon Gold 6403N24 / 481.9 GHz45 MB185 W7.7DDR5-4000
Intel Xeon Gold 6418H24 / 482.1 GHz60 MB185 W7.7DDR5-4800
Intel Xeon Gold 5411N24 / 481.9 GHz45 MB165 W6.9DDR5-4400
Intel Xeon Gold 5418N24 / 481.8 GHz45 MB165 W6.9DDR5-4000
Intel Xeon Silver 4416+20 / 402 GHz37.5 MB165 W8.3DDR5-4000
Intel Xeon Gold 5433N20 / 482.3 GHz45 MB160 W8.0DDR5-4000
Intel Xeon Gold 5423N20 / 402.1 GHz37.5 MB145 W7.3DDR5-4000
Intel Xeon Gold 6416H18 / 362.2 GHz45 MB165 W9.2DDR5-4800
Intel Xeon Gold 6544Y16 / 323.6 GHz45 MB270 W16.9DDR5-5200
Intel Xeon Gold 6526Y16 / 322.8 GHz37.5 MB195 W12.2DDR5-5200
Intel Xeon Silver 4514Y16 / 322 GHz30 MB150 W9.4DDR5-4400
Intel Xeon Gold 6444Y16 / 323.6 GHz45 MB270 W16.9DDR5-4800
Intel Xeon Platinum 8444H16 / 322.9 GHz45 MB270 W16.9DDR5-4800
Intel Xeon Gold 6426Y16 / 322.5 GHz37.5 MB185 W11.6DDR5-4800
Intel Xeon Gold 5416S16 / 322 GHz30 MB150 W9.4DDR5-4400
Intel Xeon Silver 451012 / 242.4 GHz30 MB150 W12.5DDR5-4400
Intel Xeon Silver 4510T12 / 242 GHz30 MB115 W9.6DDR5-4400
Intel Xeon Silver 4410Y12 / 242 GHz30 MB150 W12.5DDR5-4000
Intel Xeon Silver 4410T10 / 202.7 GHz26.25 MB150 W15.0DDR5-4000
Intel Xeon Gold 65348 / 163.9 GHz22.5 MB195 W24.4DDR5-4800
Intel Xeon Gold 5515+8 / 163.2 GHz22.5 MB165 W20.6DDR5-4800
Intel Xeon Bronze 3508U8 / 82.1 GHz22.5 MB125 W15.6DDR5-4400
Intel Xeon Silver 4509Y8 / 162.6 GHz22.5 MB125 W15.6DDR5-4400
Intel Xeon Gold 64348 / 163.7 GHz22.5 MB195 W24.4DDR5-4800
Intel Xeon Gold 6434H8 / 163.7 GHz22.5 MB195 W24.4DDR5-4800
Intel Xeon Gold 5415+8 / 162.9 GHz22.5 MB150 W18.8DDR5-4400
Intel Xeon Bronze 3408U8 / 81.8 GHz22.5 MB125 W15.6DDR5-4000
  • The single-socket SKUs are 3408U, 3508U, 5411N, 5412U, 5423N, 5433N, 5512U, 6403N, 6414U, 6423N, 6433N, 6443N, 8461V, 8558U, 8571N and 8581V. They have no UPI links, so a server built around one stays a one-processor machine.
  • Above 300 W TDP, the chassis needs the Neptune Liquid to Air module, the Neptune Processor DWC Module, or a front populated with only one 4-bay backplane (BCGB or BPC9).
  • Lenovo’s ambient table holds air-cooled servers to 35 °C with 165–205 W processors and to 30 °C with 205–350 W parts; some 300–350 W and large-DIMM combinations fall to 25 °C.
  • The heatsink — standard, or the Performance type with two satellite heatsinks — is picked automatically by Lenovo’s configurator from the processor and the rest of the build.
  • Intel AMX is built into all Silver, Gold and Platinum models; the QuickAssist, DLB, DSA and IAA engine counts vary from SKU to SKU.
03 — Memory

32 DIMM slots, 16 per processor

Sixteen DIMM sockets sit beside each processor — eight channels, two sockets per channel — giving 32 with both CPUs fitted. Lenovo allows one, two, four, six, eight, twelve or sixteen modules per processor. Eight per CPU keeps a single DIMM in every channel and the highest data rate; sixteen doubles capacity at a lower speed.

Capacity with every slot filled

by DIMM size
16 GB512 GB32 GB1 TB64 GB2 TB96 GB3 TB128 GB4 TB256 GB8 TB5th Gen only32 slots · 16 per processor · each tick = one DIMM

Operating speed

per Lenovo memory tables
Processor1 DIMM / channel2 DIMMs / channel
5th Gen Xeon Scalable5600 MT/s · 3DS 52004400 MT/s*
4th Gen Xeon Scalable4800 MT/s4400 MT/s
  • * For 5th Gen processors with two modules in a channel, Lenovo’s DDR5 rules quote 4400 MT/s for RDIMMs and 3DS RDIMMs and 4800 MT/s for Performance+ RDIMMs only, whereas the SR630 V3 specification table simply states 4800 MT/s at 2 DPC.
  • Selectable DIMMs follow the processor generation: 5600 MHz modules with 5th Gen, 4800 MHz with 4th Gen. One module, 4X77A93887 (128 GB, 2Rx4), crosses both generations, and four 5th Gen parts — Bronze 3508U, Silver 4509Y, Silver 4510, Silver 4510T — can also use the 4800 MHz range.
  • 96 GB modules have their own quantity rules: 1, 6, 8, 12 or 16 per processor with 5th Gen, and only 8 or 16 with 4th Gen.
  • Lenovo’s thermal note for the 128 GB 3DS RDIMM (feature BY8F) calls for the Performance fans and rules out rear 2.5-inch drives and GPUs.
  • Mixing 9x4, 10x4 and 3DS modules, x4 with x8 organisations, or 16, 24 and 32 Gb DRAM is not allowed; 9x4 modules also lose memory mirroring and ADDDC.
04 — Storage

20 backplane options, up to 16 bays

The 1U front takes one of three drive families: up to ten 2.5-inch bays, four 3.5-inch bays or sixteen E1.S EDSFF bays. A rear module adds either two 2.5-inch hot-swap bays or two 7mm boot drives. The bay map shows four complete 2.5-inch layouts from Lenovo’s configuration tables; the E1.S and 3.5-inch fronts are covered in the notes.

Headline layouts

front panel view

Front panel

Rear module

Config 44B: a ten-bay Gen5 NVMe backplane (BRQX) at the front plus the two-bay NVMe rear backplane (BDY6) — twelve NVMe drives, each on its own onboard connection.

SAS/SATANVMeSAS/SATA + NVMe

Controllers & boot

  • On Board SATA Software RAID Mode — Software RAID. Onboard SATA - 8 drives - Intel VROC SATA RAID (Intel RSTe); RAID levels: see Intel VROC section of the guide
  • Intel VROC (VMD NVMe RAID) Standard (supports RAID 0, 1, 10 for all brands of drives) — Software RAID. Onboard NVMe - 16 drives - Intel VROC NVMe RAID - see Intel VROC section; See VROC; RAID levels: see Intel VROC section of the guide
  • Intel VROC (VMD NVMe RAID) Premium (license upgrade - to enable RAID-5 support) — Software RAID. Onboard NVMe - 16 drives - Intel VROC NVMe RAID - see Intel VROC section; RAID levels: see Intel VROC section of the guide
  • RAID 540-8i PCIe Gen4 12Gb Adapter — RAID. 12Gb SAS/6Gb SATA RAID - Broadcom PCIe 4.0 adapters; RAID levels: 0, 1, 10
  • RAID 540-16i PCIe Gen4 12Gb Adapter — RAID. 12Gb SAS/6Gb SATA RAID - Broadcom PCIe 4.0 adapters; RAID levels: 0, 1, 10
  • RAID 940-8i 4GB Flash PCIe Gen4 12Gb Adapter — RAID, 4GB cache. 12Gb SAS/6Gb SATA RAID - Broadcom PCIe 4.0 adapters; RAID levels: 0, 1, 10, 5, 50, 6, 60
  • RAID 940-8i 8GB Flash PCIe Gen4 12Gb Adapter — RAID, 8GB cache. 12Gb SAS/6Gb SATA RAID - Broadcom PCIe 4.0 adapters; RAID levels: 0, 1, 10, 5, 50, 6, 60
  • RAID 940-16i 4GB Flash PCIe Gen4 12Gb Adapter — RAID, 4GB cache. 12Gb SAS/6Gb SATA RAID - Broadcom PCIe 4.0 adapters; RAID levels: 0, 1, 10, 5, 50, 6, 60
  • M.2 SATA/x4 NVMe 2-Bay Adapter (4Y37A79663) — boot
  • M.2 NVMe 2-Bay RAID Adapter (4Y37A09750) — boot
  • M.2 RAID B540i-2i SATA/NVMe Adapter (4Y37A90063) — boot
All 24 controllers and 3 boot options
  • RAID 940-16i 8GB Flash PCIe Gen4 12Gb Adapter — RAID, 8GB cache. 12Gb SAS/6Gb SATA RAID - Broadcom PCIe 4.0 adapters; RAID levels: 0, 1, 10, 5, 50, 6, 60
  • RAID 940-16i 8GB Flash PCIe Gen4 12Gb Internal Adapter — RAID, 8GB cache. 12Gb SAS/6Gb SATA RAID - Broadcom PCIe 4.0 adapters; internal CFF (cabled); RAID levels: 0, 1, 10, 5, 50, 6, 60
  • 440-8i SAS/SATA PCIe Gen4 12Gb HBA — HBA. 12Gb SAS/6Gb SATA HBA - Broadcom PCIe 4.0 adapters; RAID levels: None
  • 440-16i SAS/SATA PCIe Gen4 12Gb HBA — HBA. 12Gb SAS/6Gb SATA HBA - Broadcom PCIe 4.0 adapters; RAID levels: None
  • 440-16i SAS/SATA PCIe Gen4 12Gb Internal HBA — HBA. 12Gb SAS/6Gb SATA HBA - Broadcom PCIe 4.0 adapters; internal CFF (cabled); RAID levels: None
  • RAID 940-8i 4GB Flash PCIe Gen4 12Gb Adapter for U.3 — RAID, 4GB cache. NVMe using Tri-Mode (NVMe x1) (no support for NVMe U.2 drives); Tri-Mode (U.3 NVMe) variant; RAID levels: 0, 1, 10, 5, 50, 6, 60
  • RAID 940-8i 8GB Flash PCIe Gen4 12Gb Adapter for U.3 — RAID, 8GB cache. NVMe using Tri-Mode (NVMe x1) (no support for NVMe U.2 drives); Tri-Mode (U.3 NVMe) variant; RAID levels: 0, 1, 10, 5, 50, 6, 60
  • RAID 940-16i 4GB Flash PCIe Gen4 12Gb Adapter for U.3 — RAID, 4GB cache. NVMe using Tri-Mode (NVMe x1) (no support for NVMe U.2 drives); Tri-Mode (U.3 NVMe) variant; RAID levels: 0, 1, 10, 5, 50, 6, 60
  • RAID 940-16i 8GB Flash PCIe Gen4 12Gb Adapter for U.3 — RAID, 8GB cache. NVMe using Tri-Mode (NVMe x1) (no support for NVMe U.2 drives); Tri-Mode (U.3 NVMe) variant; RAID levels: 0, 1, 10, 5, 50, 6, 60
  • 4-Port PCIe Gen4 NVMe Retimer Adapter (4x drives) — NVMe Retimer. NVMe using x4 interface; RAID levels: None
  • PCIe Gen5 NVMe Retimer Adapter (4x drives) — NVMe Retimer. NVMe using x4 interface; RAID levels: None
  • Intel VROC RAID1 Only — Software RAID. Onboard NVMe - Intel VROC NVMe RAID; RAID 1 only; Intel and non-Intel NVMe SSDs (Table 45)
  • RAID 5350-8i PCIe 12Gb Adapter — RAID. Listed only for M.2 RAID support (SATA M.2) with the M.2 SATA/x4 NVMe 2-Bay Adapter and SFF RAID cable kit 4X97A88522; installs in a rear PCIe slot; not listed in Table 44; feature code and RAID levels not stated in the guide
  • RAID 5350-8i PCIe 12Gb Internal Adapter — RAID. Internal CFF (cabled); listed only for M.2 RAID support (SATA M.2) with the M.2 SATA/x4 NVMe 2-Bay Adapter and CFF RAID cable kit 4X97A93744; not listed in Table 44; feature code and RAID levels not stated in the guide
  • ThinkSystem 440-16e SAS/SATA PCIe Gen4 12Gb HBA — HBA. External SAS HBA (JBOD to external enclosures/tape), part 4Y37A09724 feature B8P7 - lp1600 L4590
  • Intel VROC SATA RAID (Intel RSTe) — Software RAID. Onboard SATA ports with Intel VROC SATA RAID (formerly Intel RSTe) software RAID - lp1600 L470, lp1600 L3462; not supported by virtualization hypervisors
  • The EDSFF front holds sixteen E1.S drives (9.5 mm or 15 mm, PCIe 4.0) on backplane B981 (config 25), each with a direct connection.
  • The 3.5-inch front takes four SAS/SATA drives on backplane B8L3; a two-bay 2.5-inch rear module, SAS/SATA or NVMe, can still be added behind it.
  • Rear 2.5-inch bays leave only slot 1 free. 7mm drives sit in the slot 3 position, and 7mm and M.2 boot cannot be combined.
  • With a 2.5-inch front, a cabled internal (CFF) RAID adapter or HBA can live in its own space on a PCIe 4.0 x8 connector, so it uses no PCIe slot.
  • Intel VROC covers the 12 onboard SATA ports and up to 16 onboard NVMe ports, but VROC SATA RAID is not supported under ESXi, KVM, Xen or Hyper-V; VROC NVMe RAID is.
  • Putting NVMe behind a RAID 940 (Tri-Mode) works only with U.3 drives in AnyBay bays, and each such drive gets a one-lane PCIe path to the card.

Every documented backplane

17 with drive bays
1U 10x2.5" (6x SAS/SATA 2x AnyBay 2x NVMe) Gen5 Ba…1U 10x2.5" (6x SAS/SATA 2x AnyBay 2x NVMe) Gen5 Backplane101U 10x2.5" AnyBay Backplane1U 10x2.5" AnyBay Backplane101U 10x2.5" AnyBay Gen5 Backplane1U 10x2.5" AnyBay Gen5 Backplane101U 10x2.5" NVMe Backplane1U 10x2.5" NVMe Backplane101U 2.5" 10 NVMe Gen5 Backplane1U 2.5" 10 NVMe Gen5 Backplane101U 2.5" 6 SAS/SATA 4 AnyBay Gen5 Backplane1U 2.5" 6 SAS/SATA 4 AnyBay Gen5 Backplane101U 8x2.5" SAS/SATA Backplane1U 8x2.5" SAS/SATA Backplane81U 4x 2.5" NVMe Gen 4 Backplane1U 4x 2.5" NVMe Gen 4 Backplane41U 4x2.5" Gen4 NVMe Backplane with 4x2.5" Chassis1U 4x2.5" Gen4 NVMe Backplane with 4x2.5" Chassis41U 4x2.5" Gen5 NVMe Backplane1U 4x2.5" Gen5 NVMe Backplane41U 4x2.5" SAS/SATA Backplane1U 4x2.5" SAS/SATA Backplane41U Front I/O 4x2.5" Gen5 AnyBay Backplane1U Front I/O 4x2.5" Gen5 AnyBay Backplane41U Front I/O 4x2.5" Gen5 NVMe Backplane1U Front I/O 4x2.5" Gen5 NVMe Backplane41U 2x2.5" NVMe Rear Backplane1U 2x2.5" NVMe Rear Backplane21U 2x2.5" SAS/SATA Rear Backplane1U 2x2.5" SAS/SATA Rear Backplane21U/2U 4x3.5" SAS/SATA Backplane1U/2U 4x3.5" SAS/SATA Backplane41U 16xEDSFF Backplane1U 16xEDSFF Backplane16Bays · solid = front · dashed = rear · brighter = NVMe-only
2.5-inch3.5-inchEDSFF (E1.S / E3.S)
05 — Accelerators & I/O

GPUs, PCIe and networking

The 1U chassis has room for three single-width GPU cards, each rated at no more than 75 W. Lenovo’s GPU table currently lists one card, the NVIDIA L4 24 GB, for slots 1, 2, 3 and 5. It is a Controlled GPU, so it is built only on the “for AI” base CTO models; all GPUs in a server must match, and passively cooled cards need the Performance fans. Up to 3 × single-wide GPUs, up to 75 W each (NVIDIA L4 listed).

NVIDIA L4 24GB PCIe Gen4 Passive GPU

single-wide
24GB · up to 3

I/O topology

80 lanes per CPU
CPU 180 × PCIe 5.08 ch · 16 DIMMCPU 280 × PCIe 5.08 ch · 16 DIMMUPI · up to 4 links · up to 20 GT/s3 rear PCIe x16 slotsLP or FHHL · Gen5 or Gen4 risers2 front PCIe 4.0 slotsLP + FHHL beside 4 front baysOne OCP 3.0 SFF slotrear PCIe 5.0 or front PCIe 4.0XCC2 management portRJ-45 1GbE · AST2600 BMC

Each processor provides up to 80 PCIe 5.0 lanes and eight memory channels, and the two sockets talk over up to four UPI links at up to 20 GT/s. Riser 1 (slots 1 and 2) is wired to CPU 1 and Riser 2 (slot 3) to CPU 2, and the front slots also depend on the second processor.

Network adapters Lenovo lists

30 options
AdapterPortsForm
Broadcom 5719 1GbE RJ45 4-port OCP Ethernet Adapter4 × 1GbEOCP 3.0
Intel I350 1GbE RJ45 4-Port OCP Ethernet Adapter V24 × 1GbEOCP 3.0
Broadcom 57412 10GBase-T 4-Port OCP Ethernet Adapter4 × 10GBase-TOCP 3.0
Broadcom 57416 10GBASE-T 2-port OCP Ethernet Adapter2 × 10GBASE-TOCP 3.0
Intel X710-T2L 10GBASE-T 2-port OCP Ethernet Adapter2 × 10GBASE-TOCP 3.0
Intel X710-T4L 10GBase-T 4-Port OCP Ethernet Adapter4 × 10GBase-TOCP 3.0
Broadcom 57414 10/25GbE SFP28 2-Port OCP Ethernet Adapter2 × 10/25GbEOCP 3.0
Broadcom 57504 10/25GbE SFP28 4-Port OCP Ethernet Adapter4 × 10/25GbEOCP 3.0
Intel E810-DA2 10/25GbE SFP28 2-Port OCP Ethernet Adapter2 × 10/25GbEOCP 3.0
Intel E810-DA4 10/25GbE SFP28 4-Port OCP Ethernet Adapter4 × 10/25GbEOCP 3.0
Mellanox ConnectX-6 Lx 10/25GbE SFP28 2-port OCP Ethernet Adapter2 × 10/25GbEOCP 3.0
Broadcom 57508 100GbE QSFP56 2-Port OCP Ethernet Adapter2 × 100GbEOCP 3.0
Broadcom 5719 1GbE RJ45 4-Port PCIe Ethernet Adapter4 × 1GbEPCIe
I350-T4 PCIe 1Gb 4-Port RJ45 Ethernet Adapter4 × 1GbPCIe
Broadcom 57412 10GBase-T 4-Port PCIe Ethernet Adapter4 × 10GBase-TPCIe
Broadcom 57416 10GBASE-T 2-Port PCIe Ethernet Adapter2 × 10GBASE-TPCIe
Intel X710-T2L 10GBase-T 2-Port PCIe Ethernet Adapter2 × 10GBase-TPCIe
Intel X710-T4L 10GBase-T 4-Port PCIe Ethernet Adapter4 × 10GBase-TPCIe
Broadcom 57414 10/25GbE SFP28 2-port PCIe Ethernet Adapter2 × 10/25GbEPCIe
Broadcom 57504 10/25GbE SFP28 4-port PCIe Ethernet Adapter4 × 10/25GbEPCIe
Intel E810-DA2 10/25GbE SFP28 2-Port PCIe Ethernet Adapter2 × 10/25GbEPCIe
Intel E810-DA4 10/25GbE SFP28 4-Port PCIe Ethernet Adapter4 × 10/25GbEPCIe
Mellanox ConnectX-6 Lx 10/25GbE SFP28 2-port PCIe Ethernet Adapter2 × 10/25GbEPCIe
Solarflare X2522-Plus 10/25GbE SFP28 2-Port PCIe Ethernet Adapter2 × 10/25GbEPCIe
Broadcom 57508 100GbE QSFP56 2-Port PCIe 4 Ethernet Adapter2 × 100GbEPCIe
Mellanox ConnectX-6 Dx 100GbE QSFP56 2-port PCIe Ethernet Adapter2 × 100GbEPCIe
Mellanox ConnectX-6 HDR100/100GbE QSFP56 1-port PCIe VPI Adapter1 × HDR100/100GbEPCIe
Mellanox ConnectX-6 HDR/200GbE QSFP56 1-port PCIe 4 VPI Adapter1 × HDR/200GbEPCIe
NVIDIA ConnectX-7 NDR200/200GbE QSFP112 2-port PCIe Gen5 x16 InfiniBand Adapter2 × NDR200/200GbEPCIe
NVIDIA ConnectX-7 NDR400 OSFP 1-port PCIe Gen5 VPI Adapter1 × NDR400PCIe
  • Four rear layouts: three low-profile slots; one low-profile plus one full-height; one low-profile slot with two rear 2.5-inch bays; or two low-profile slots with two 7mm bays.
  • Depending on the riser ordered, the full-height rear position is slot 2 on the first processor or slot 3 on the second.
  • Front slot 4 runs at x16 behind four NVMe bays or Tri-Mode AnyBay bays, but drops to x8 when four AnyBay bays use the onboard NVMe ports.
  • Fitting the front slots disconnects the rear OCP position and rules out the Liquid to Air module and the security bezel.
  • An optional DB-9 serial port mounts on a bracket in slot 2 or slot 3, never in a front slot.
06 — Power & cooling

9 power supplies, 750–1,800 W

The server runs on a matched pair of hot-swap supplies. AC choices are 750, 1100 and 1800 W, each in a Titanium or a Platinum version, and telco sites can use an 1100 W −48 V DC unit instead. In Lenovo’s power table only the two smaller Platinum units carry a 110 V AC tick; the other AC supplies need 200–240 V.

0500100015002000750 W Platinum — AC input power - 80 PLUS Platinum efficiency; input 230V/115V; max quantity 2750Platinum750 W Titanium — AC input power - 80 PLUS Titanium efficiency; input 230V; max quantity 2750Titanium750 W Titanium — AC input power - 80 PLUS Titanium efficiency; input 230V; max quantity 2750Titanium1100 W n/a (DC input) — -48V DC input power; input -48V DC; max quantity 21100DC1100 W Platinum — AC input power - 80 PLUS Platinum efficiency; input 230V/115V; max quantity 21100Platinum1100 W Titanium — AC input power - 80 PLUS Titanium efficiency; input 230V; max quantity 21100Titanium1800 W Platinum — AC input power - 80 PLUS Platinum efficiency; input 230V; max quantity 21800Platinum1800 W Titanium — AC input power - 80 PLUS Titanium efficiency; input 230V; max quantity 21800Titanium1800 W Titanium — AC input power - 80 PLUS Titanium efficiency; input 230V; max quantity 21800TitaniumWatts · dashed line = output at 100–120 V low line
AC−48 V DC
  • Every AC supply uses a C14 inlet, so standard C13 rack cables apply; the −48 V unit has a Weidmuller TOP 4GS/3 7.6 terminal.
  • Measured from the rack-flange mounting surface, depth to the PSU handles is 754 mm with supplies up to 1100 W and 782 mm with the 1800 W units.
  • Cooling is up to eight 40 mm dual-rotor hot-swap fans — six with one processor, eight with two — with N+1 rotor redundancy, plus a fan inside each supply.
  • Standard (21K RPM) fans need two processors under 165 W, no GPUs, no 100 Gb-plus adapters or Broadcom 57454 4-port 10GBASE-T OCP card, no rear drives and no EDSFF or 8/10-bay NVMe or AnyBay front; everything else, and every one-processor build, uses the Performance (28K RPM) fans.
  • Chinese installations can also feed the supplies from a 240 V DC source.
07 — Management, security & OS

Run it, secure it, choose the OS

Management

  • XClarity Controller 2 (XCC2) on an ASPEED AST2600 BMC
  • Optional XCC2 Platinum: remote console, virtual media, boot capture, power capping, System Guard, Neighbor Group
  • Rear 1GbE management port · optional second port in the OCP bay
  • XClarity Provisioning Manager (UEFI, F1 at boot)
  • XClarity One, XClarity Integrator and XClarity Energy Manager
  • Redfish, IPMI 2.0 (IPMI-over-LAN off by default), SNMP 3.0
  • Integrated Diagnostics Panel (8 × 2.5-inch and E1.S fronts) · External Diagnostics Handset
  • XClarity Mobile over the front USB 2.0 port

Security

  • Platform Firmware Resiliency hardware Root of Trust (NIST SP 800-193)
  • TPM 2.0 · optional Nationz TPM 2.0 (China, CTO only)
  • UEFI Secure Boot — enabled in the factory or later; once on, it cannot be turned off
  • System Guard and CNSA 1.0 Enterprise Strict Security mode (XCC2 Platinum)
  • Intel TDX, SGX and TME/MKTME
  • Self-encrypting drives with KMIP key management, including IBM SKLM
  • Optional chassis intrusion switch and lockable front bezel
  • NIST SP 800-147B compliant

Operating systems

  • Microsoft Windows Server 2019, 2022 and 2025
  • Windows 10 (x64) and Windows 11
  • Red Hat Enterprise Linux 8, 9 and 10
  • SUSE Linux Enterprise Server 15 and 16
  • Ubuntu 20.04, 22.04, 24.04 and 26.04 LTS
  • VMware ESXi 7.0 U3, 8.0 and 9.x
08 — Compare

SR630 V2 → SR630 V3 → SR630 V4

Two Lenovo tables bracket this model: the SR630 V3 guide compares it with the SR630 V2, and the SR630 V4 guide compares the V4 with it. The V4 table lists the V3 at 350 W TDP; the V3 column here keeps the V3 guide’s 385 W figure, which covers the 5th Gen processors.

Previous generationThinkSystem SR630 V2
This modelThinkSystem SR630 V3
SuccessorThinkSystem SR630 V4
Processors
2 × 3rd Gen Xeon Scalable · up to 40 cores · 270 W
2 × 4th or 5th Gen Xeon Scalable · up to 64 cores · 385 W
2 × Xeon 6700/6500 P-core (86 cores, 350 W) or 6700 E-core (144 cores, 330 W)
PCIe lanes per CPU
64 × PCIe 4.0
80 × PCIe 5.0
—
Memory
DDR4 to 3200 MHz · 32 DIMMs · Optane PMem 200
DDR5 to 5600 MHz · 32 DIMMs · 9x4 RDIMMs
DDR5 to 6400 MHz · 32 DIMMs · MRDIMM and CXL (P-core)
Maximum memory
8 TB
8 TB
8 TB
Front drive options
4 × 3.5" (SAS/SATA or AnyBay), 10 × 2.5" or 16 × E1.S
4 × 3.5" SAS/SATA, 10 × 2.5", 16 × E1.S or 4 × 2.5" + front slots
10 × 2.5", 16 × E3.S 1T or 8 × E3.S 2T · no 3.5"
Onboard NVMe ports
12
16
16
PCIe slots
Up to 3 × PCIe 4.0
2 × Gen5 + 1 × Gen4 rear, 2 front
Up to 3 × PCIe 5.0 rear
OCP 3.0
1 × rear, PCIe 4.0 x16
1 × rear (Gen5) or front (Gen4)
2 × rear, PCIe 5.0 x16
Management
XClarity Controller
XClarity Controller 2
XClarity Controller 3
AC power supplies
500, 750, 1100 and 1800 W
750, 1100 and 1800 W
800, 1300 and 2000 W

Source: Lenovo Press LP1600 (SR630 V3 product guide), Table 1 — SR630 V3 vs SR630 V2; Lenovo Press LP1971 (SR630 V4 product guide), Table 2 — SR630 V4 vs SR630 V3.

The SR630 V3 family side by side

In Lenovo’s V3 line the SR630 V3 is the 1U Intel two-socket model. Its 1U AMD counterparts are the SR645 V3 (one or two sockets) and the single-socket SR635 V3; the SR250 V3 is the entry one-socket 1U, the SR650 V3 the 2U Intel sibling and the SR630 V4 the Xeon 6 successor. Bars use each model’s own spec file.

SR630 V3SR650 V3SR645 V3SR635 V3SR250 V3SR630 V4Cores / CPUSR630 V3: 6464SR650 V3: 6464SR645 V3: 160160SR635 V3: 160160SR250 V3: 88SR630 V4: 144144DIMM slotsSR630 V3: 3232SR650 V3: 3232SR645 V3: 2424SR635 V3: 1212SR250 V3: 44SR630 V4: 3232Max memorySR630 V3: 8 TB8SR650 V3: 8 TB8SR645 V3: 6 TB6SR635 V3: 3 TB3SR250 V3: 0.125 TB0.125SR630 V4: 8 TB8Max drive baysSR630 V3: 1616SR650 V3: 4040SR645 V3: 1616SR635 V3: 1616SR250 V3: 88SR630 V4: 1616Max GPUsSR630 V3: 33SR650 V3: 88SR645 V3: 55SR635 V3: 55SR250 V3: 11SR630 V4: 33Largest PSUSR630 V3: 1,800 W1,800SR650 V3: 2,600 W2,600SR645 V3: 1,800 W1,800SR635 V3: 1,800 W1,800SR250 V3: 800 W800SR630 V4: 2,000 W2,000
This modelSiblings and successorEach value from that model’s own verified spec file · bars scale per column

Head-to-head comparisons

Every figure on this page, set against the machines buyers weigh it up with.

vs R660vs DL360 Gen11vs R670vs DL360 Gen12vs SR630 V4
SR650 V3 data sheetSR645 V3 data sheetSR635 V3 data sheetSR250 V3 data sheetSR630 V4 data sheetSR630 V3 vs Dell R660 vs HPE DL360 Gen11SR630 V3 vs SR250 V3Dell PowerEdge R660 data sheetHPE ProLiant DL360 Gen11 data sheet
09 — Use cases

Four builds that suit the SR630 V3

Four builds that suit a 1U two-socket server, every part chosen from the options our configurator permits for the SR630 V3. Open any of them to change it; Lenovo’s fan, riser and ambient-temperature rules for the finished mix are checked before we quote.

Virtualisation

Ten-drive NVMe cluster node

Two 32-core 5th Gen processors, 1 TB at one DIMM per channel and ten NVMe drives on direct onboard links make a dense host for vSAN-style local storage. The 6538Y+ memory bus tops out at 5200 MT/s, so the 5600 MHz DIMMs run at that rate.

  • 2 × Xeon Gold 6538Y+ — 32 cores @ 2.2 GHz, 225 W each
  • 16 × 64 GB TruDDR5 — 1 TB, one DIMM per channel
  • 10 × 3.84 TB NVMe U.3 on the ten-bay NVMe backplane
  • 2 × 480 GB M.2 boot drives in RAID 1
  • NVIDIA ConnectX-6 Lx 2 × 25GbE OCP 3.0
  • 2 × 1100 W Titanium
  • VMware ESXi 8.0

A ten-bay NVMe front requires the Performance fans, and air-cooled servers with processors above 205 W are limited to 30 °C inlet air.

Open this build in the configurator →
Branch & edge

One-socket branch server

A single 28-core Gold 5512U — a one-socket part with no UPI links — with eight DIMMs, four 12 TB 3.5-inch drives behind a flash-backed RAID controller and 10GBASE-T networking, for a branch file and VM host in 1U.

  • 1 × Xeon Gold 5512U — 28 cores @ 2.1 GHz, 185 W
  • 8 × 32 GB TruDDR5 — 256 GB, at 4800 MT/s on this processor
  • 4 × 12 TB 3.5-inch SATA HDD — 48 TB raw
  • RAID 940-8i with 4 GB flash cache
  • 2 × 480 GB M.2 boot
  • Broadcom 57416 2 × 10GBASE-T OCP 3.0
  • 2 × 750 W Titanium
  • Windows Server 2025

With one processor only slots 1 and 2 and 16 DIMM slots are usable, and Performance fans are mandatory. A U-suffix processor cannot be joined by a second CPU later.

Open this build in the configurator →
Databases

Licence-lean SQL Server host

Two 8-core Gold 5515+ processors keep the core count — and core-based licensing — small while running at 3.2 GHz base. The RAID 940-16i sits in the internal cabled (CFF) bay, so it takes no PCIe slot and leaves the rear free for networking.

  • 2 × Xeon Gold 5515+ — 8 cores @ 3.2 GHz, 165 W each
  • 16 × 64 GB TruDDR5 — 1 TB, at 4800 MT/s on this processor
  • 8 × 3.84 TB SAS SSD on the eight-bay SAS/SATA backplane
  • RAID 940-16i 8 GB flash, internal (CFF) form factor
  • 2 × 480 GB M.2 boot
  • Broadcom 57414 2 × 25GbE OCP 3.0
  • 2 × 1100 W Titanium
  • Windows Server 2025

Lenovo offers the internal CFF adapter bay only with 2.5-inch front drives.

Open this build in the configurator →
AI inference

Three-GPU inference in 1U

Three NVIDIA L4 cards — the most the chassis takes — with two 28-core Gold 5520+ processors kept below the 220 W point at which Lenovo restricts GPU servers to a four-bay SAS/SATA front, so NVMe bays stay available.

  • 2 × Xeon Gold 5520+ — 28 cores @ 2.2 GHz, 205 W each
  • 3 × NVIDIA L4 24 GB, single-wide, passively cooled
  • 16 × 64 GB TruDDR5 — 1 TB
  • 4 × 7.68 TB NVMe U.3 on the ten-bay NVMe backplane
  • Intel E810-DA2 2 × 25GbE OCP 3.0
  • 2 × 1800 W Titanium
  • Ubuntu Server 24.04 LTS

The L4 is a Controlled GPU, built only on Lenovo’s “for AI” base models. The third card needs slot 3 and therefore CPU 2; passive GPUs require the Performance fans, and an L4 at the rear limits inlet air to 30 °C.

Open this build in the configurator →
10 — Refurbished alternatives

When a refurbished server makes more sense

Lenovo ThinkSystem is not in our refurbished configurator, so the closest re-certified alternatives are Dell and HPE 1U two-socket servers from the DDR4 era. They give up DDR5, PCIe 5.0 and the newer Xeon families, but suit projects where a proven 1U platform is enough.

Gen10 Plus · re-certified

HPE ProLiant DL360 Gen10 Plus

  • 1U · two sockets
  • 32 DIMM slots · up to 8 TB DDR4
  • Up to 10 × SFF / NVMe
  • DDR4-3200 · PCIe 4.0 · iLO 5

Closest on memory: 32 DIMM slots and an 8 TB ceiling in the same 1U height, suited to budget-led virtualisation and VDI refreshes.

Configure a refurbished DL360 Gen10 Plus →
14G · re-certified

Dell PowerEdge R640

  • 1U · two sockets
  • 24 DIMM slots · up to 3 TB DDR4
  • Up to 10 × 2.5" / NVMe
  • iDRAC9

A dense 1U host where 3 TB of memory and ten NVMe-capable bays cover the workload.

Configure a refurbished R640 →
Gen10 · re-certified

HPE ProLiant DL360 Gen10

  • 1U · two sockets
  • 24 DIMM slots · up to 3 TB DDR4
  • Up to 10 × SFF / NVMe
  • iLO 5

The lowest-cost 1U route for general virtualisation and VDI when rack space and budget are both tight.

Configure a refurbished DL360 Gen10 →
Refurbished Lenovo serversRefurbished HPE configuratorRefurbished Dell configuratorNew vs refurbished cost calculator
11 — Full specifications

Lenovo ThinkSystem SR630 V3 specifications

Chassis & cooling

Form factor1U rack server
Machine types7D72 (1-year warranty) · 7D73 (3-year warranty)
Dimensions (W × H × D)440 × 43 × 773 mm · 482 mm across the EIA flanges
WeightUp to 20.8 kg
FansUp to 8 × 40 mm dual-rotor hot-swap, N+1 rotor redundancy · Standard 21K RPM or Performance 28K RPM
Liquid coolingNeptune Liquid to Air Module (closed loop) or Neptune Processor DWC Module (open loop) · CTO only
ChipsetIntel C741

Processor

SocketsOne or two
Families4th Gen and 5th Gen Intel Xeon Scalable
Cores per processorUp to 60 (4th Gen) · up to 64 (5th Gen)
Maximum TDP350 W (4th Gen) · 385 W (5th Gen)
Highest base clock3.7 GHz (4th Gen) · 3.9 GHz (5th Gen)
UPIUp to 4 links · up to 20 GT/s
PCIe lanesUp to 80 × PCIe 5.0 per processor

Memory

Slots32 DDR5 · 16 per processor · 8 channels × 2 DIMMs
TypesTruDDR5 RDIMM, 9x4 RDIMM and 3DS RDIMM (no UDIMM or LRDIMM)
DIMM sizes16, 32, 64, 96, 128 and 256 GB
Speed5th Gen: up to 5600 MT/s at 1 DPC · 4th Gen: up to 4800 MT/s at 1 DPC
Maximum8 TB (32 × 256 GB 3DS RDIMM)
ProtectionECC, SDDC (x4 DIMMs), ADDDC (x4, not 9x4; Gold or Platinum), memory mirroring
Persistent memoryNot supported

Storage

Front10 × 2.5" (NVMe, AnyBay or SAS/SATA mixes) · 8 × 2.5" SAS/SATA · 4 × 3.5" SAS/SATA · 16 × E1.S NVMe · 4 × 2.5" with front slots
Rear2 × 2.5" SAS/SATA or NVMe · or 2 × 7mm SATA/NVMe
Maximum12 × 2.5" · 16 × E1.S · 4 × 3.5" (+ 2 × 2.5" rear)
Direct NVMe12 in 2.5-inch layouts · 16 in E1.S layouts
Boot2 × internal M.2 or 2 × rear 7mm (not both)
Onboard12 SATA ports · up to 16 NVMe ports (Intel VROC)
AdaptersRAID 540 / 940 (8 or 16 ports, up to 8 GB flash) · 440 HBAs · NVMe retimers · internal CFF RAID/HBA

Expansion & networking

PCIe slotsUp to 5: 3 rear x16 (Gen5 or Gen4) + 2 front PCIe 4.0
OCP1 × OCP 3.0 SFF — rear PCIe 5.0 x16 or front PCIe 4.0 x16
SerialOptional DB-9 on a bracket in slot 2 or 3
CXLCXL 1.1 ready

Accelerators

GPU envelopeUp to 3 × single-wide, up to 75 W each
Listed GPUNVIDIA L4 24 GB (Controlled; slots 1, 2, 3 and 5)

Power

SuppliesTwo hot-swap, redundant, identical
AC Titanium750, 1100 and 1800 W (230 V)
AC Platinum750 and 1100 W (230 V / 115 V) · 1800 W (230 V)
DC1100 W, −48 V DC

Ports & video

Front1 × USB 3.2 Gen 1 · 1 × USB 2.0 (also XCC) · external diagnostics port · optional VGA
Rear3 × USB 3.2 Gen 1 · VGA · 1GbE XCC port · optional DB-9 · optional second management port
Internal1 × USB 3.2 Gen 1
Video16 MB, integrated in XCC2 · up to 1920 × 1200 at 60 Hz

Environment & warranty

ASHRAEClass A2 in most configurations; A3, A4 or H1 depending on configuration
Operating temperature10–35 °C (A2)
Maximum altitude3,050 m
Warranty1 or 3 years by machine type · CRU and onsite, 9 × 5 next business day
12 — FAQ

SR630 V3 questions, answered from the documentation

What is the maximum memory of the Lenovo ThinkSystem SR630 V3?

Lenovo quotes 8 TB for a two-processor server, with each of the 32 slots holding a 256 GB 3DS RDIMM. Because Lenovo pairs that module with 5th Gen parts only, a server on 4th Gen processors is limited to 32 × 128 GB, which is 4 TB. A one-processor SR630 V3 has 16 slots, and Lenovo’s one-processor section gives 2 TB for it.

Which processors does the SR630 V3 support?

Eighty-four Intel Xeon Scalable SKUs are listed — 52 4th Gen and 32 5th Gen. The smallest have 8 cores, and the Platinum 8592+, 8592V and 8593Q reach 64; ratings run up to 385 W. Sixteen SKUs, every U-suffix part among them, work only as the single processor in a one-socket server.

How many drives fit in the SR630 V3?

Up to twelve 2.5-inch drives (ten front, two rear), sixteen E1.S EDSFF drives, or four 3.5-inch drives at the front. Boot uses either an internal M.2 pair or two 7mm drives in the rear, never both. All twelve 2.5-inch bays, or all sixteen E1.S bays, can be NVMe on direct onboard connections.

Does the SR630 V3 support GPUs?

Yes — three single-width cards at most, each no more than 75 W. The card Lenovo lists is the NVIDIA L4 24 GB; as a Controlled GPU (one the US Government restricts in some markets), it ships only in servers ordered on a “for AI” base CTO model. GPU servers need the Performance fans, and with processors above 220 W their front is limited to four 2.5-inch SAS/SATA bays.

How many PCIe slots does the SR630 V3 have?

Up to five: three x16 slots at the rear, where slot 3 needs the second processor, and two PCIe 4.0 slots at the front in the four-bay front-I/O layout. There is also one OCP 3.0 slot, at the rear (PCIe 5.0) or the front (PCIe 4.0) but not both.

What power supplies does the SR630 V3 use?

A pair of matching hot-swap supplies — AC units of 750, 1100 or 1800 W (Titanium or Platinum), or a DC unit of 1100 W for −48 V feeds. For 115 V mains, pick the 750 W or 1100 W Platinum; every AC supply has a C14 inlet.

How big and heavy is the SR630 V3?

It is a 1U server 440 mm wide (482 mm across the rack flanges), 43 mm high and 773 mm deep. From the rack-flange mounting surface to the power-supply handles it measures 754 mm with supplies up to 1100 W and 782 mm with 1800 W units. Maximum weight is 20.8 kg.

How does the SR630 V3 differ from the SR650 V3?

They share the 4th and 5th Gen Xeon families, 32 DIMM slots and the 8 TB ceiling. The 2U SR650 V3 has room for 40 × 2.5-inch or 20 × 3.5-inch drives and up to eight single-width (or three double-wide) GPUs; the 1U SR630 V3 stops at twelve 2.5-inch, sixteen E1.S or four 3.5-inch bays and three single-wide GPUs.

What changed in the SR630 V4?

The SR630 V4 moves to Intel Xeon 6 — up to 86 P-cores or 144 E-cores — with DDR5 up to 6400 MHz and MRDIMM and CXL memory on P-core models. It swaps E1.S for 16 × E3.S 1T or 8 × E3.S 2T bays, adds a second rear OCP slot and XClarity Controller 3, and drops 3.5-inch bays and onboard SATA.

Is the Lenovo ThinkSystem SR630 V3 end of life?

No end-of-life or end-of-service date appears in Lenovo’s SR630 V3 product guide, which still carries the model with current processor and option tables. Cover after the base warranty depends on the service contract, and our end-of-life checker shows dates once Lenovo publishes them.

Sources & verification

Where these figures come from

Specifications are extracted from Lenovo’s published documents and independently re-checked line by line. Configurations are quote-based; availability and exact options are confirmed at quotation. Last reviewed 2026-09-11.

Get a quote for the Lenovo ThinkSystem SR630 V3

Tell us the workload and we’ll spec and price it — or build it in the configurator first.

Business enquiries only — please use your company email. Gmail, Hotmail and other personal addresses are not accepted.

We only ship hardware to the countries in the dropdown. Software and maintenance services are global.

We use these details to reply to your enquiry and prepare any quote. No marketing emails without your consent. Privacy Policy

Enquiring about: Lenovo ThinkSystem SR630 V3

Response within 4 business hours · No obligation

Quote for
Lenovo ThinkSystem SR630 V3
0800 987 4111

Talk to a UK specialist

Get expert advice or a no-obligation quote — servers, storage, networking, maintenance, finance and cloud. We reply the same working day.

or call 0800 987 4111
